Architectural Wine & Beverage Storage
Upright Beverage Refrigerator

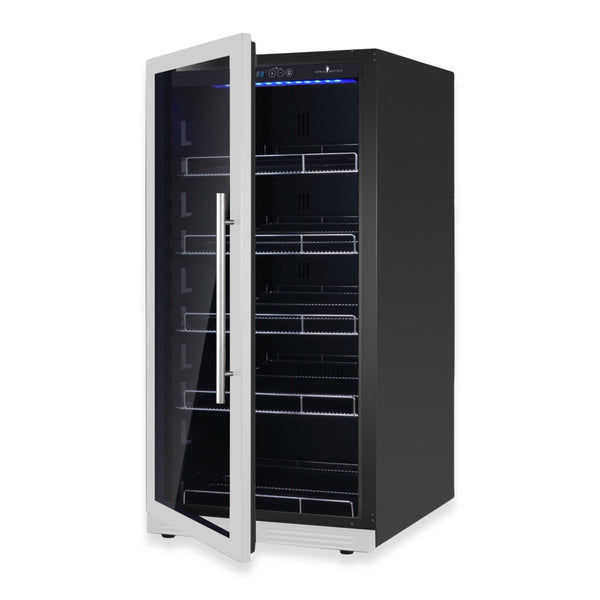

1200mm Upright Beverage Fridge
Can Capacity
389 Cans
Temperature
2°C to 20°C
Dimensions
595W x 700D x 1200H mm
Zone
Single Zone
Installation
Built-In or Freestanding
Format
Tall Format
Storage
Beverage
Specifications
| Can Capacity | 389 Cans |
|---|---|
| Temp Zones | Single Zone |
| Temp Range | 2°C to 20°C |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Climate Class | SN / N / ST (10°C to 38°C) |
| Energy Consumption | 193 kWh/Year |
| Electrical Requirements | 220-240V / 50Hz |
| Defrost Type | Automatic Defrost |
| Door Type | Glass Door With Stainless Steel Frame |
|---|---|
| Lighting | Blue and White LED |
| Lock | Yes |
| Volume | 265 Litres |
| Noise Level | 42 dB |
| Weight | 76 kg |
| Dimensions | 595W x 700D x 1200H mm |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 12mm filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
