Architectural Wine & Beverage Storage
Upright Wine & Beverage Centre

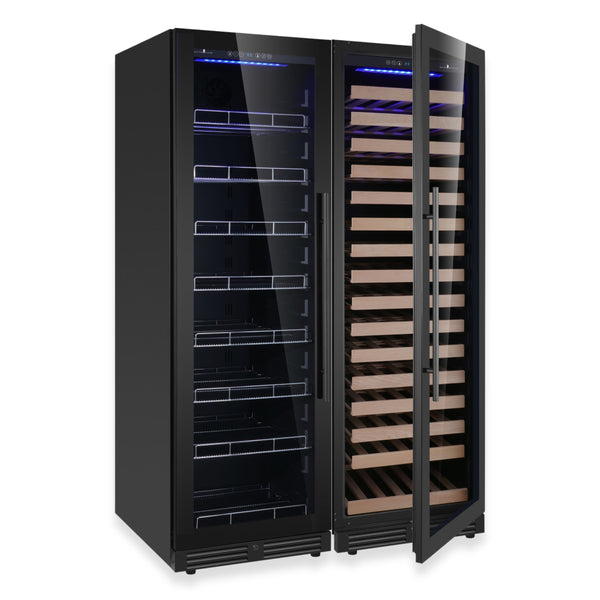

1800mm Upright Dual-Zone Wine & Beverage Fridge Combo
Bottle Capacity
161 Bottles
Can Capacity
630 Cans
Temperature
2°C to 20°C
Dimensions
1190W x 700D x 1800H mm
Zone
Dual Zone
Installation
Built-In or Freestanding
Format
Tall Format
Storage
Wine + Beverage
Specifications
| Bottle Capacity | 161 Bottles |
|---|---|
| Can Capacity | 630 Cans |
| Temp Zones | Dual Zone |
| Temp Range | 2°C to 20°C |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Climate Class | SN / N / ST (10°C to 38°C) |
| Energy Consumption | 431 kWh/Year (set of two units) |
| Electrical Requirements | 220-240V / 50Hz |
| Defrost Type | Automatic Defrost |
| Door Type | Borderless Black Glass Door |
|---|---|
| Volume | 850 Litres Total, 425 Litres Each |
| Noise Level | 42 dB |
| Weight | 204 kg |
| Dimensions | 1190W x 700D x 1800H mm |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 12mm filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Set of two units, use side by side or separately. |
