Architectural Wine & Beverage Storage
Under-Counter Beverage Refrigerator

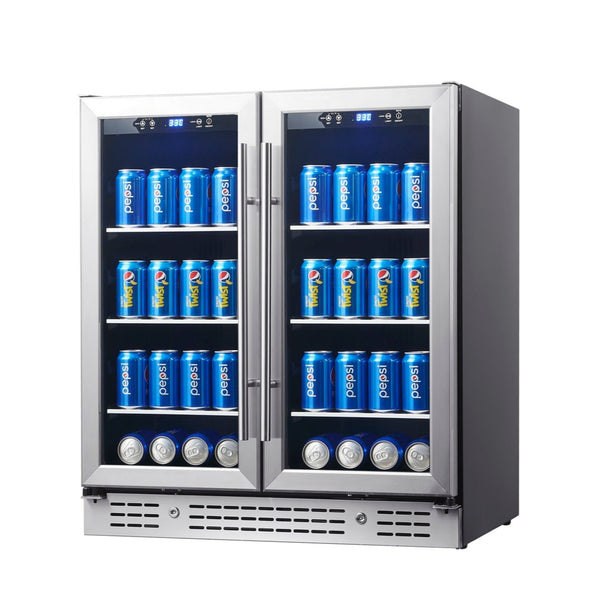

750mm-Wide Under Bench Dual-Zone Beverage Fridge
Can Capacity
154 Cans
Temperature
2°C to 20°C
Dimensions
750W x 570D x 860H mm
Zone
Dual Zone
Installation
Built-In or Freestanding
Format
Under-Counter
Storage
Beverage
Specifications
| Can Capacity | 154 Cans |
|---|---|
| Temp Zones | Dual Zone |
| Temp Range | 2°C to 20°C |
| Compressor | Embraco Fixed-Speed Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Climate Class | SN / N / ST (10°C to 38°C) |
| Energy Consumption | 570 kWh/Year (ISO23953-2) |
| Electrical Requirements | 220-240V / 50Hz |
| Defrost Type | Automatic Defrost |
| Door Type | Glass Door With Stainless Steel Frame |
|---|---|
| Lighting | Blue · Adjustable brightness (100%, 75%, 50%, Off) with memory · On/off button |
| Lock | Yes |
| Volume | 165 Litres |
| Noise Level | 42 dB |
| Weight | 60 kg |
| Dimensions | 750W x 570D x 860H mm |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 35 mm between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 12 mm filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
