750mm Wide Under bench Dual Zone Bar Fridge
SIZE: 750W x 570D x 860H mm

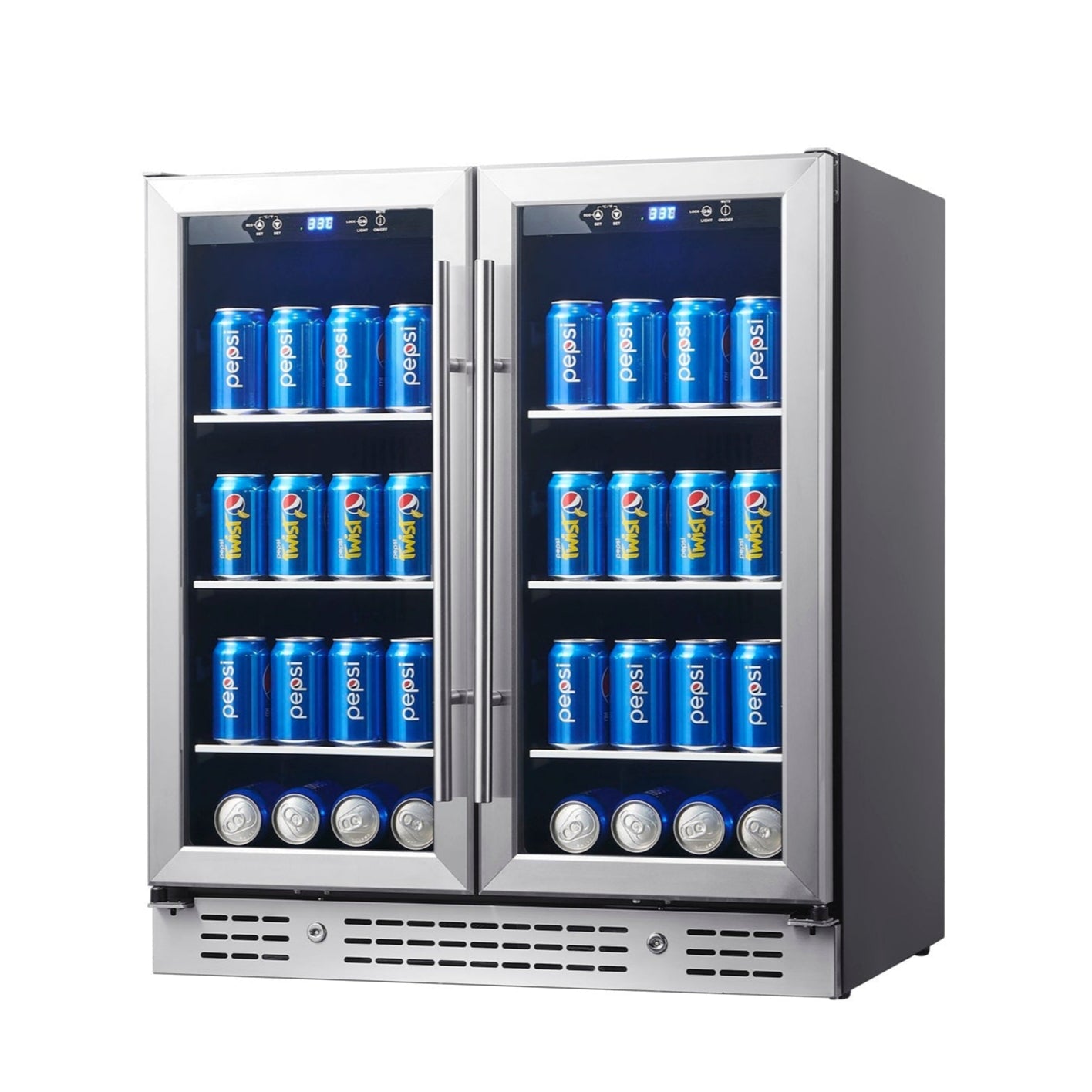

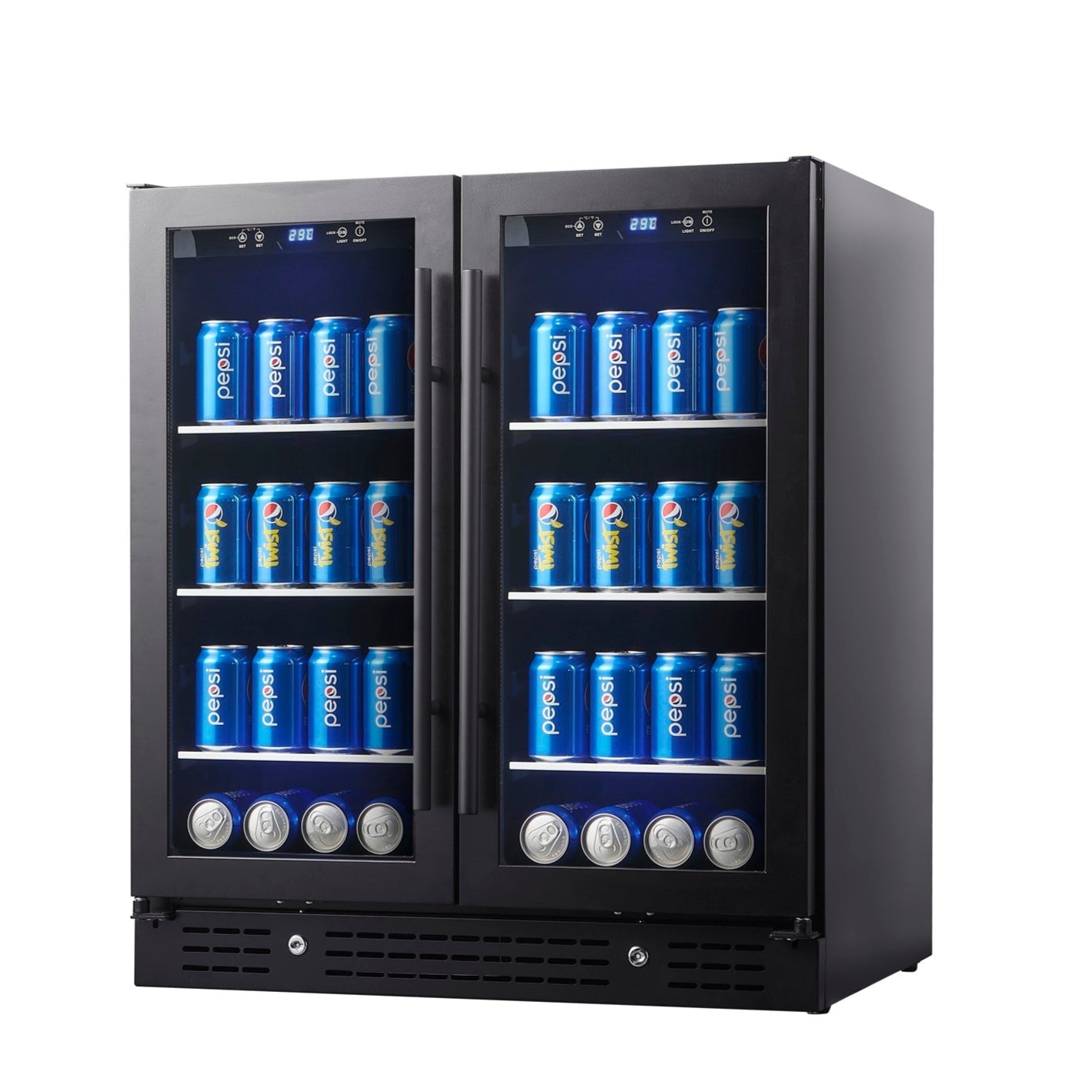

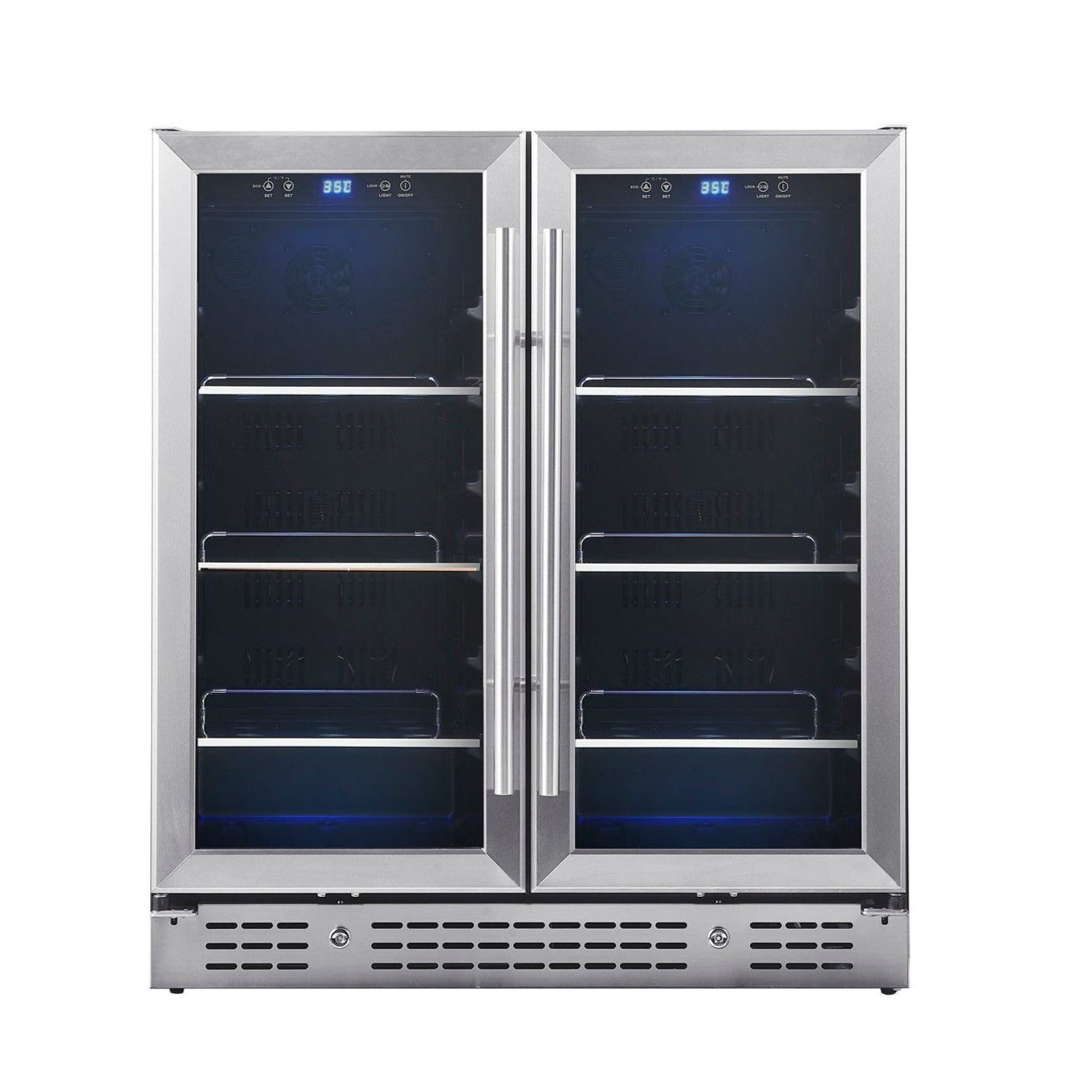

The KingsBottle KB165B2 is a premium 165-litre under bench bar fridge designed for style, performance, and reliability. Perfectly suited for home bars, hospitality venues, cafes, and office breakrooms, this 750mm-wide unit blends seamlessly under counters while providing efficient chilling for all your beverages.
With a beverage capacity of 154 cans (330ml), this fridge is built to handle parties, footy nights, or quiet evenings with all your favourite drinks within easy reach.
Its precision digital controller maintains a consistent temperature range of 2°C to 20°C, giving you crisp beers, fizzy mixers, or chilled soft drinks exactly the way you like them.

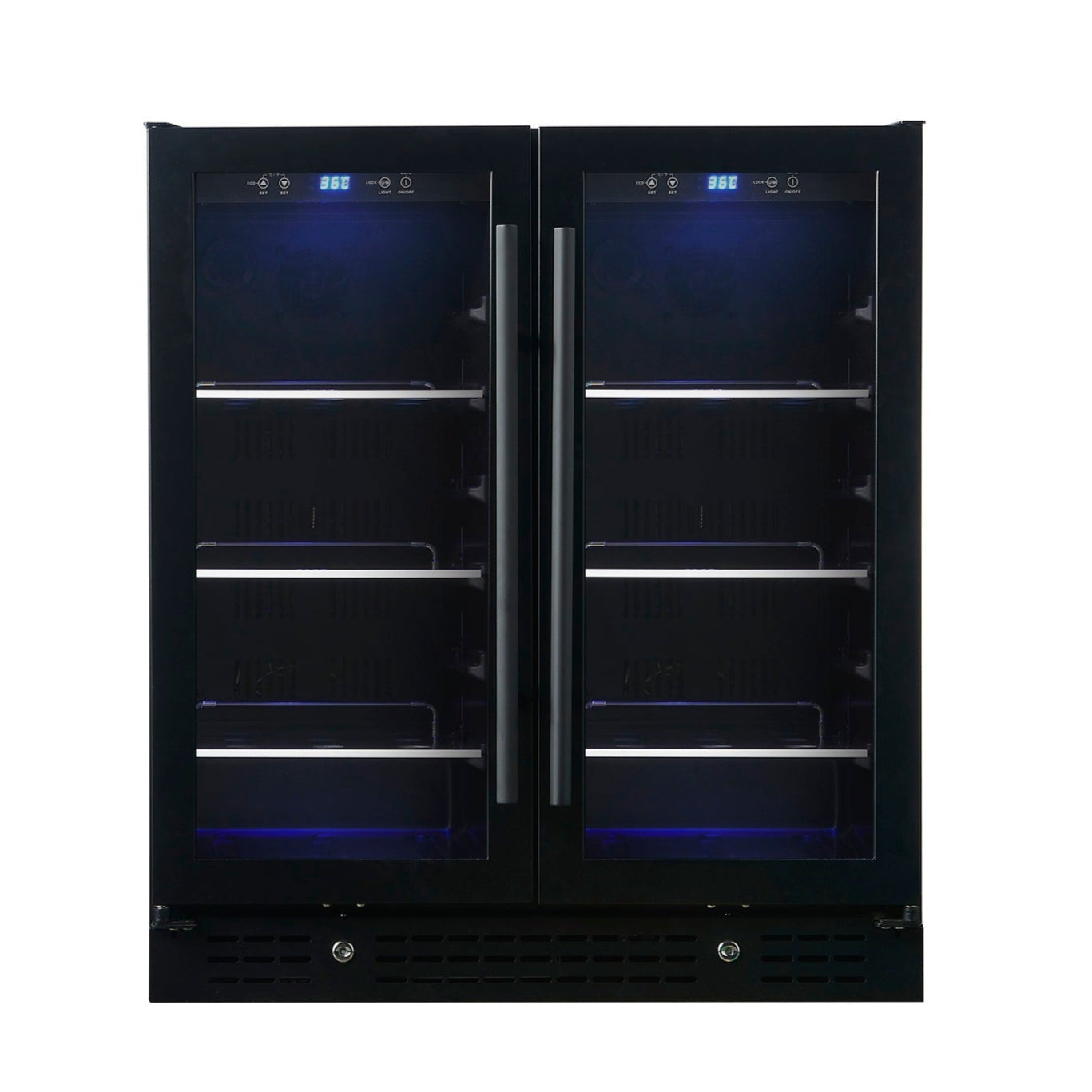

Behind its black-trimmed Low-E glass door, your cans are protected from UV rays and unsightly condensation, while bright LED lighting puts your collection on full display. Adjustable chrome shelves let you configure the space however you like, and the quiet-running compressor won’t interrupt the conversation—perfect for open-plan homes or laid-back café settings.
Whether you’re fitting it flush into custom cabinetry or running it freestanding on a deck, the KB165B2 blends durability, flexibility, and chilled perfection into one premium package.
Specifications
General Information
- Dimensions: 750W x 570D x 850H mm (616mm depth including handle)
- Capacity: 154 cans (standard 330ml)
- Net Weight: 60 kg

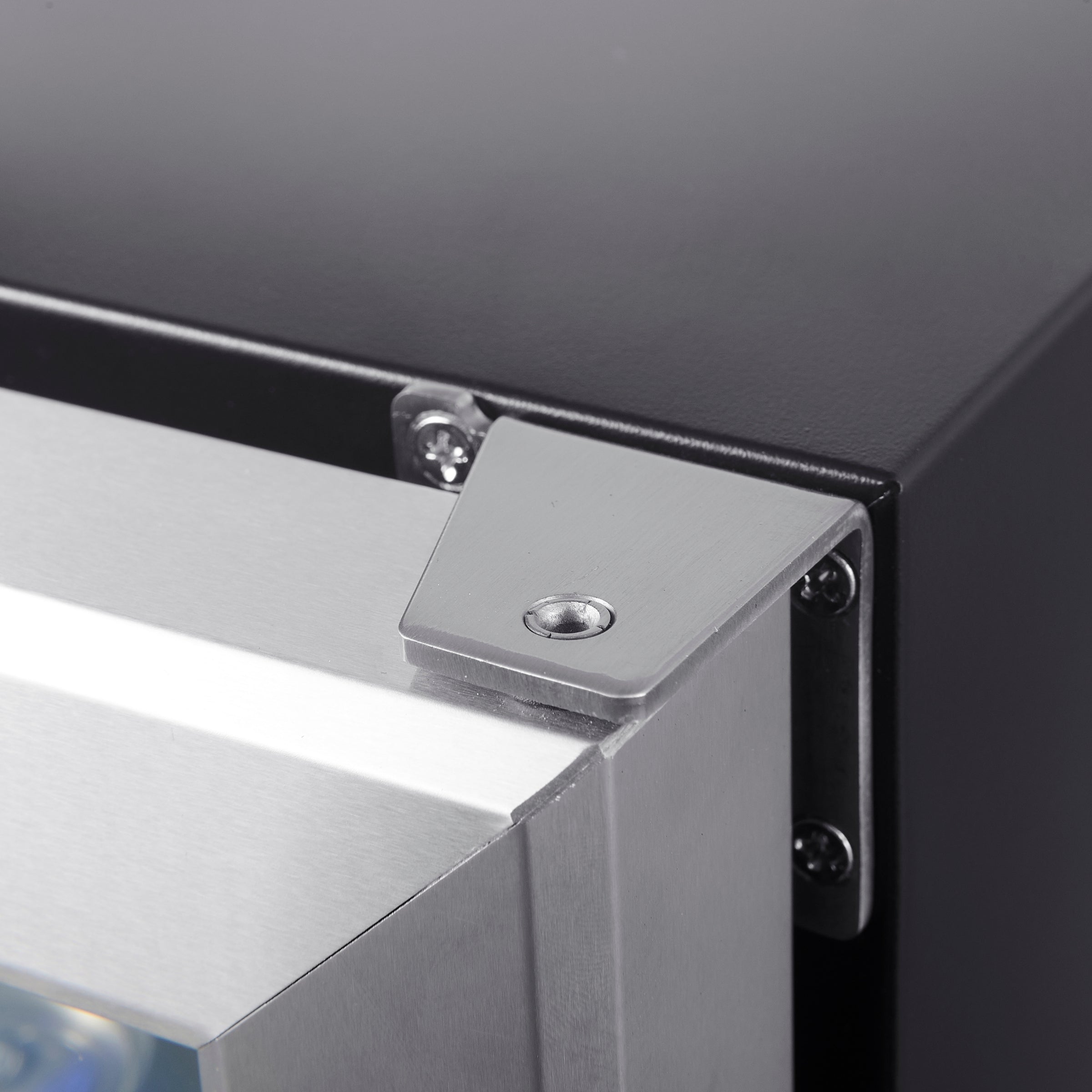

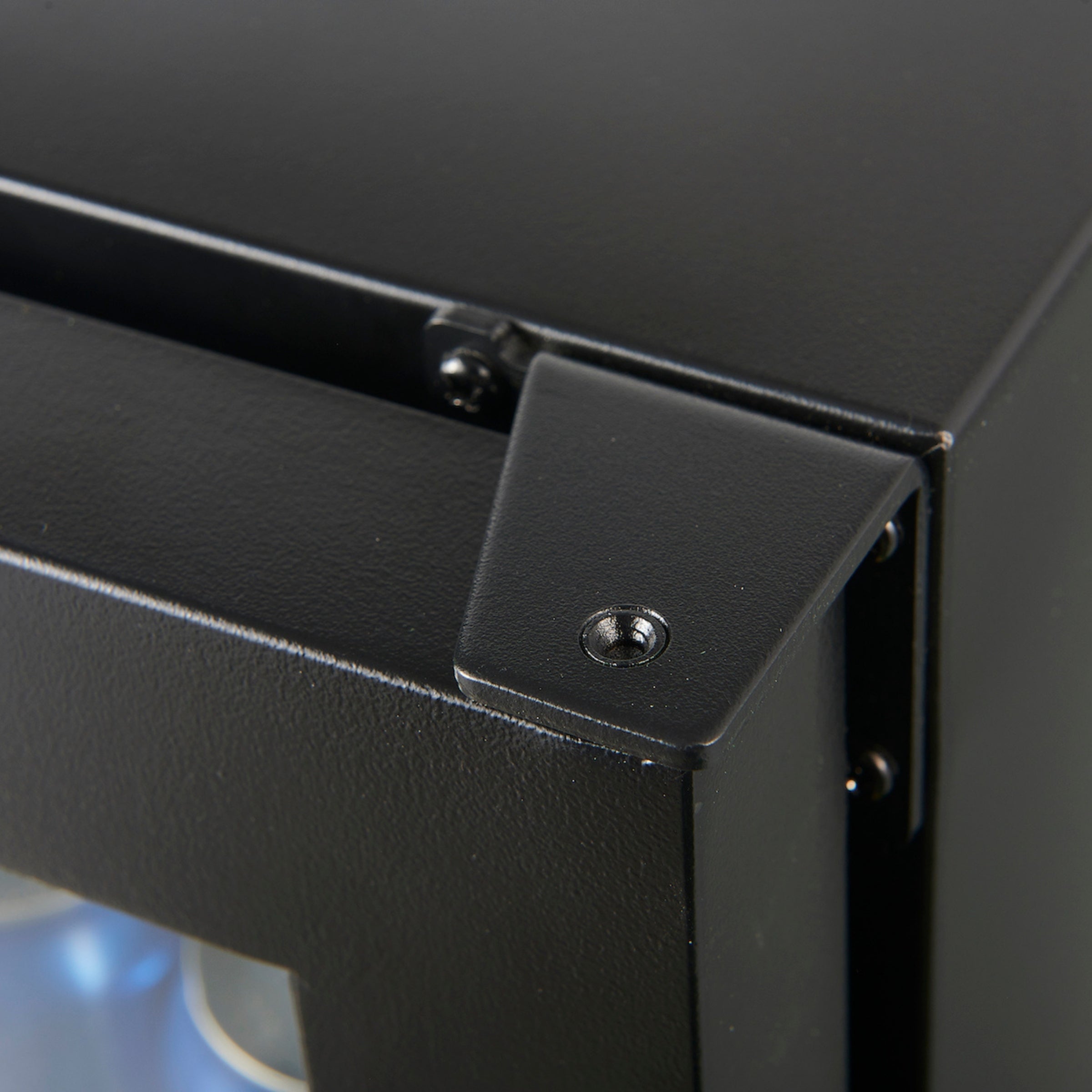

- Door: Reversible tempered safety glass doors with stainless steel frame
Key Features
Compressor: Embraco
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature

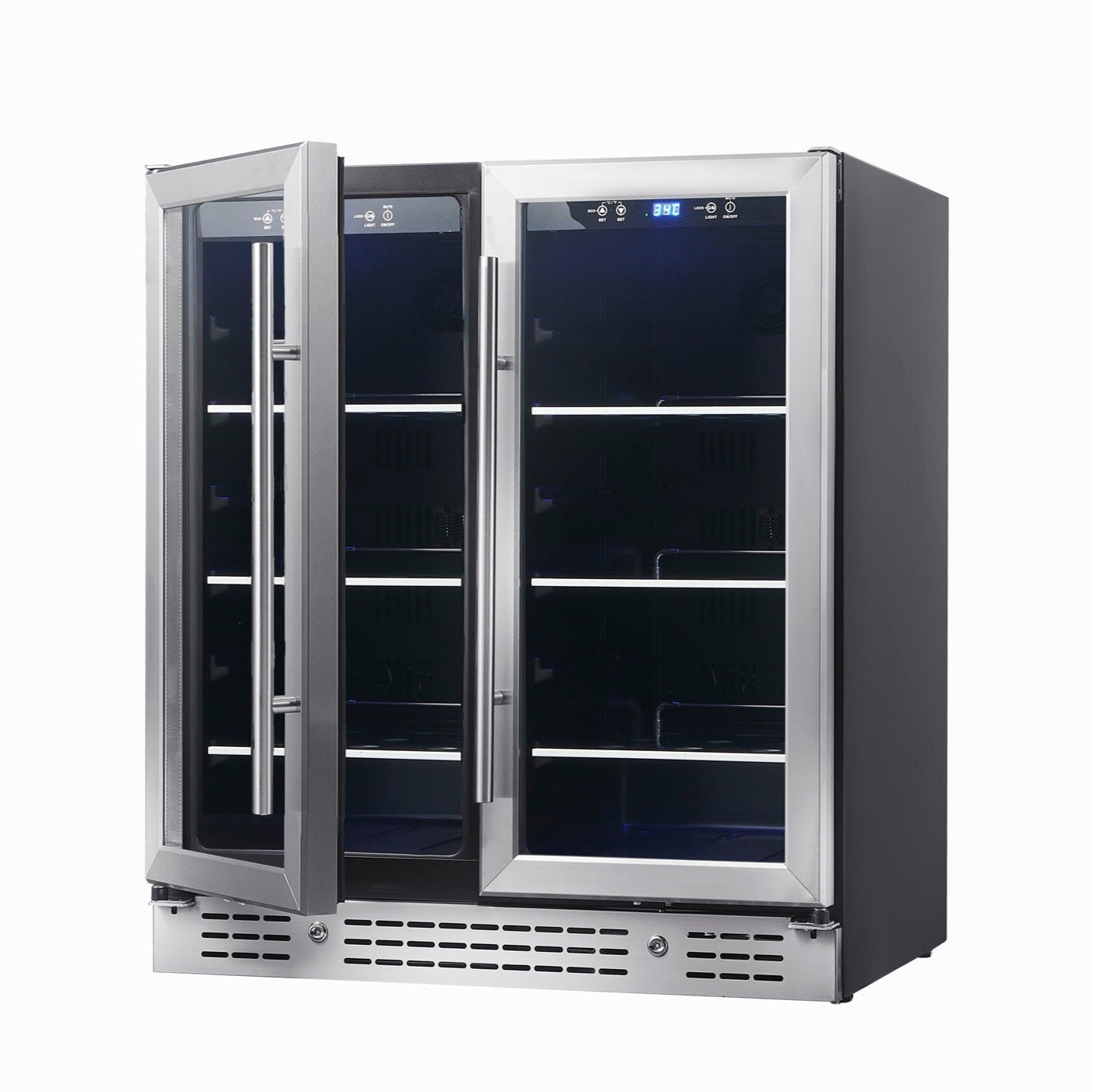

Shelves: Adjustable glass shelves;
Temperature Range:
Left Side: 2-20°C
Right Side: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 570 kWh/Year (ISO23953-2)
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KBU165BW KBU190BW
Quiet Compressor
Runs on a top-shelf compressor that’s whisper-quiet and vibration-free, keeping your drinks chilled without a peep.
Low-E Glass
Saves power and stops condensation on the door;
Acts like a sneaky insulating wall to keep the cold in.
Note: Low-E Glass has a smart coating that cuts heat transfer and condensation, ramping up energy savings and cooling efficiency.
Fan Circulated Air-Cooling System
Keeps the temp consistent throughout the cabinet;
Balances humidity to protect what’s inside.
Activated Carbon Filter
Traps air impurities like a champ;
Keeps the cabinet air crisp and odour-free.
LED Display Digital Touchpad Control
Dead-simple controls to use;
Shows clear, bang-on settings every time.
45mm Thick C-Pantane Foam
Chunky foam boosts cooling and keeps energy costs down.
Dimensions & Diagrams

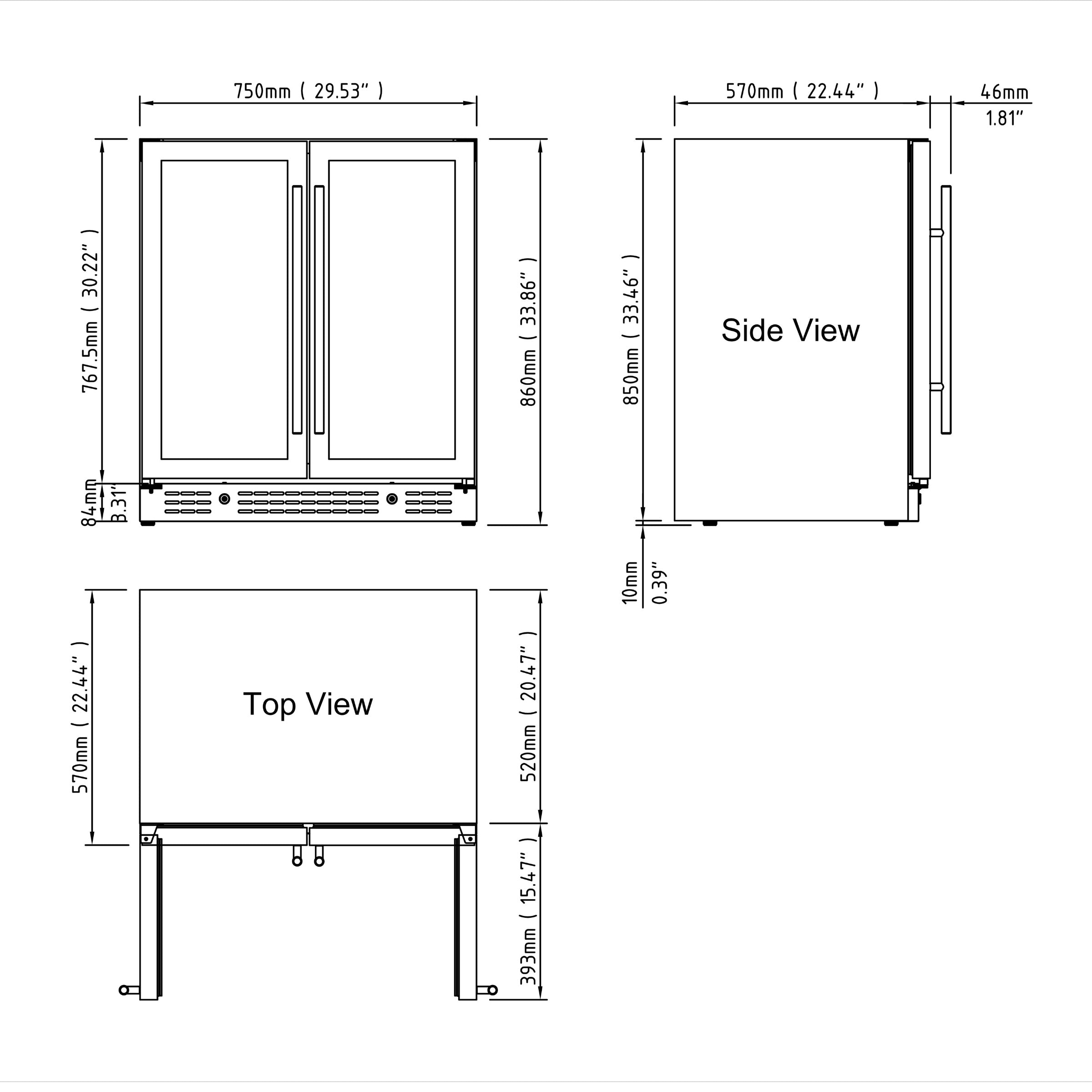

Technical Dimensions

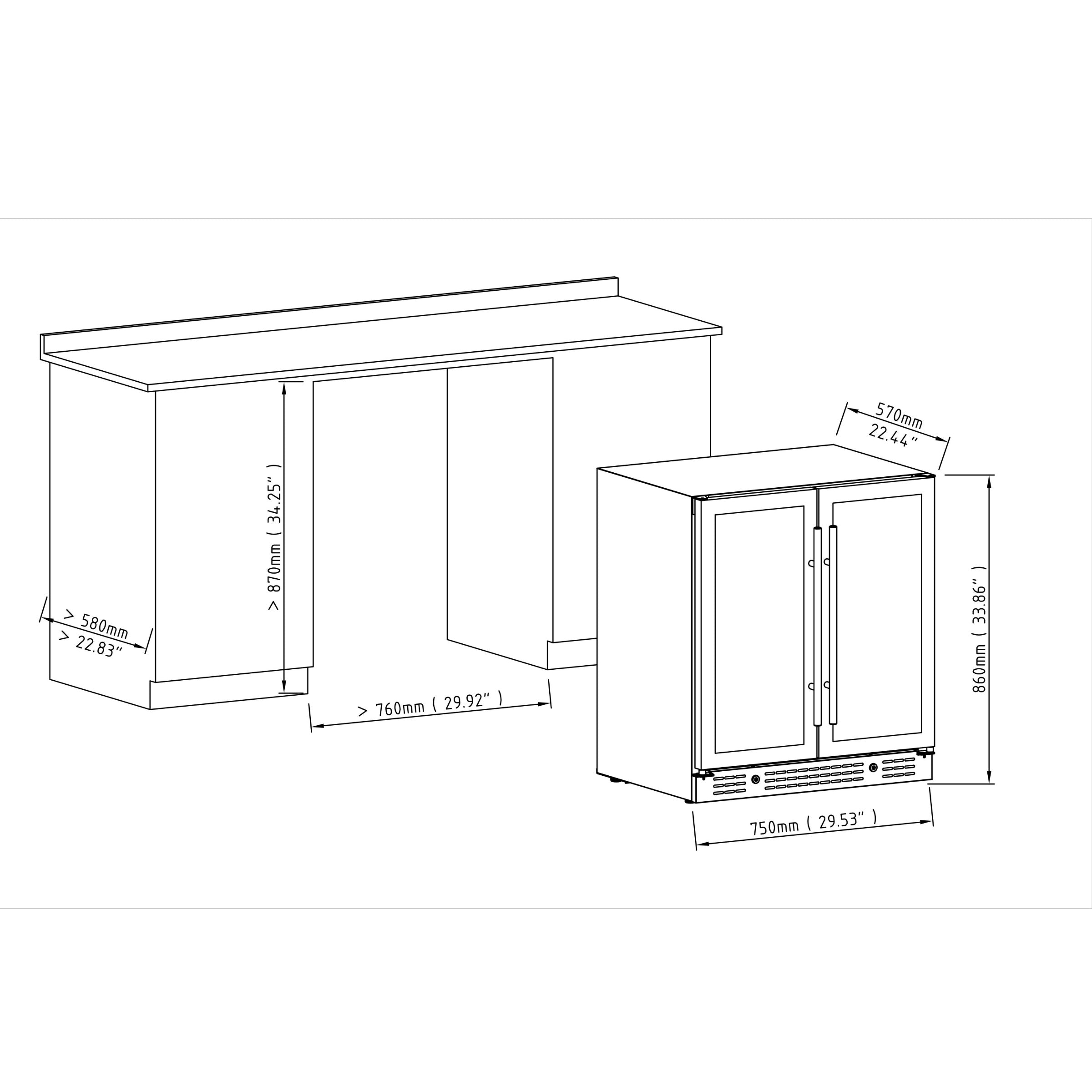

Installation Diagrams
User Manual for KB165BW/KB165W2/KB165B2
