Architectural Wine & Beverage Storage
Steak Ager Fridge

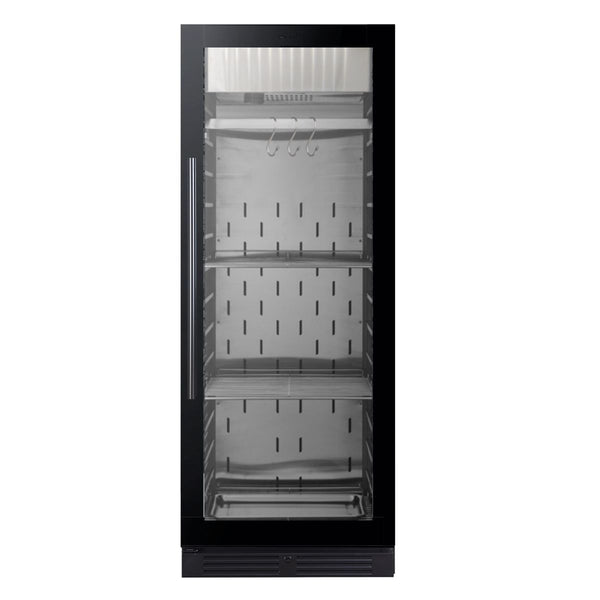

Large Upright Steak Ager Fridge
Temperature
1°C-25℃
Dimensions
595W x 710D x 1720H mm
Zone
Single Zone
Installation
Built-In or Freestanding
Format
Full Height
Storage
Steak Aging
Specifications
| Temp Zones | Single Zone |
|---|---|
| Temp Range | 1°C-25℃ |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Humidity Control | Humidity Control |
| Humidity Range | 60%-85% |
| Climate Class | SN / N / ST (10°C to 38°C) |
| Electrical Requirements | 220-240V / 50Hz |
| Defrost Type | Automatic Defrost |
| Door Type | Borderless Black Glass Door |
|---|---|
| Volume | 388 Litres |
| Weight | 92 kg |
| Dimensions | 595W x 710D x 1720H mm |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 12mm filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
