Atelier Aria - 1775mm High Sleek Single Zone Wine Fridge with Premium Performance
SIZE: 490W x 540D x 1775H mm
At just 490mm wide—narrower than the standard 600mm—and 540mm deep, the Atelier Aria carries the graceful, space-savvy profile of the Atelier Series, slipping effortlessly into places where most fridges cannot. Whether enhancing a chic galley kitchen, integrating seamlessly into bespoke cabinetry, or standing proudly in a modern apartment, the Aria brings refined sophistication without compromising storage.
Crafted as a single temperature zone, the Atelier Aria creates a serene, stable environment that celebrates your collection as one harmonious whole. Behind its sleek exterior, 13 beech wood shelves cradle up to 86 bottles—Burgundy and Bordeaux alike—arranged with balance and poise. Every detail, from airflow to orientation, is considered to ensure your wines age gracefully and are always ready to share, savor, and showcase.
Specifications
General Information
- Dimensions: 490W x 540D x 1775H mm
- Capacity: 245 litres (86 bottles, fit for different bottles type)
- Net Weight: 65 kg
- Door: Reversible (left or right hinge options), lockable for security
Key Features
Compressor: Inverter—quiet (41.6 dB), energy saving
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature
Shelves: 7 pcs beech wood shelves for Burgundy bottles (up to 86mm in diameter) in upper part; 6 pcs shelves for standard bottles (76mm in diameter) in lower part
Temperature Range: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 0.43 kW.h/24h
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Dimensions & Diagrams

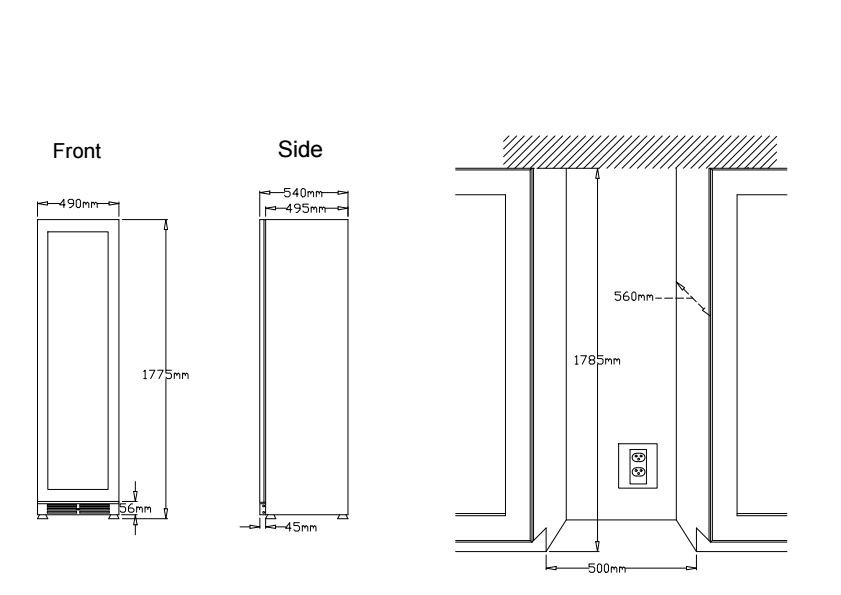

Installation Diagrams
User Manual for Atelier
