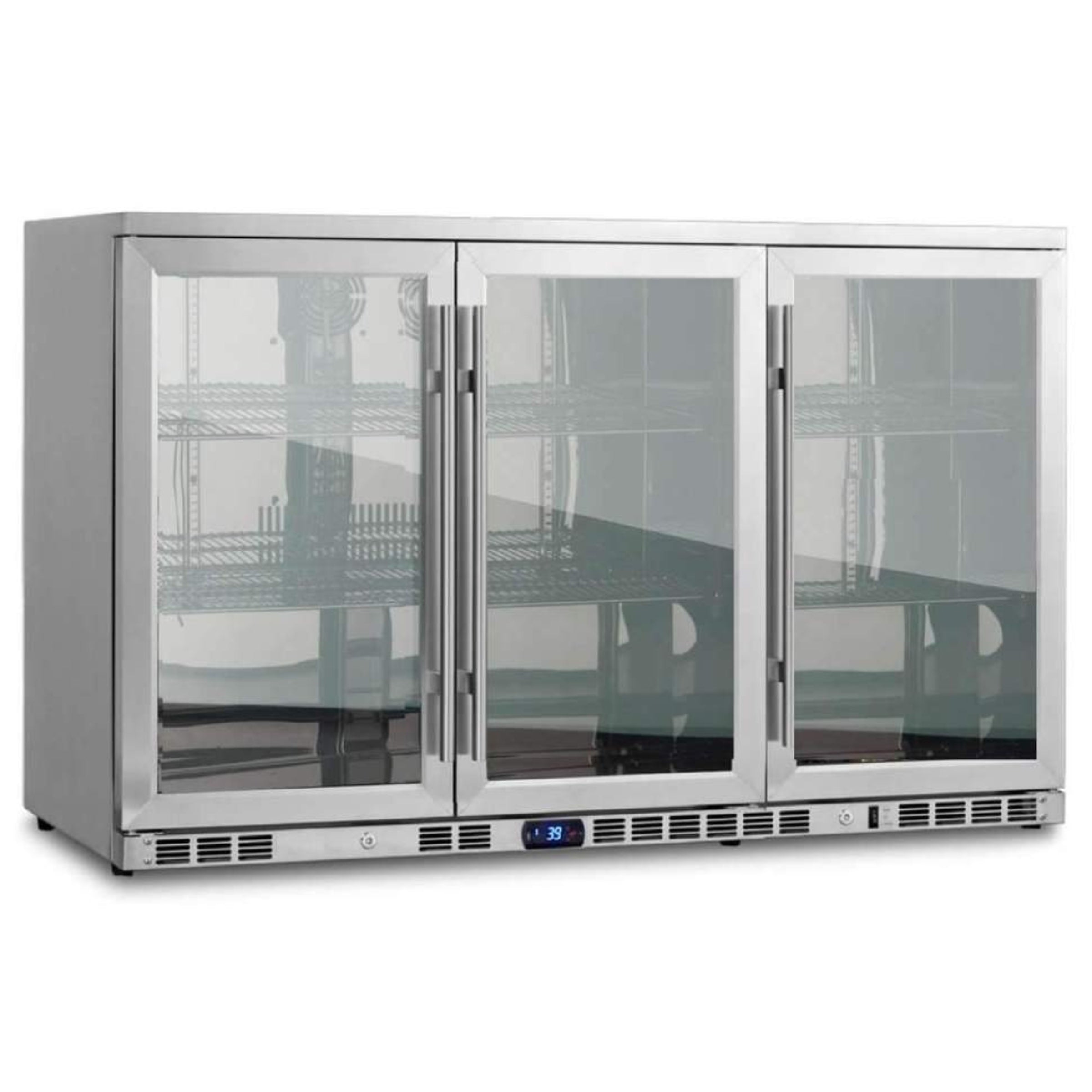

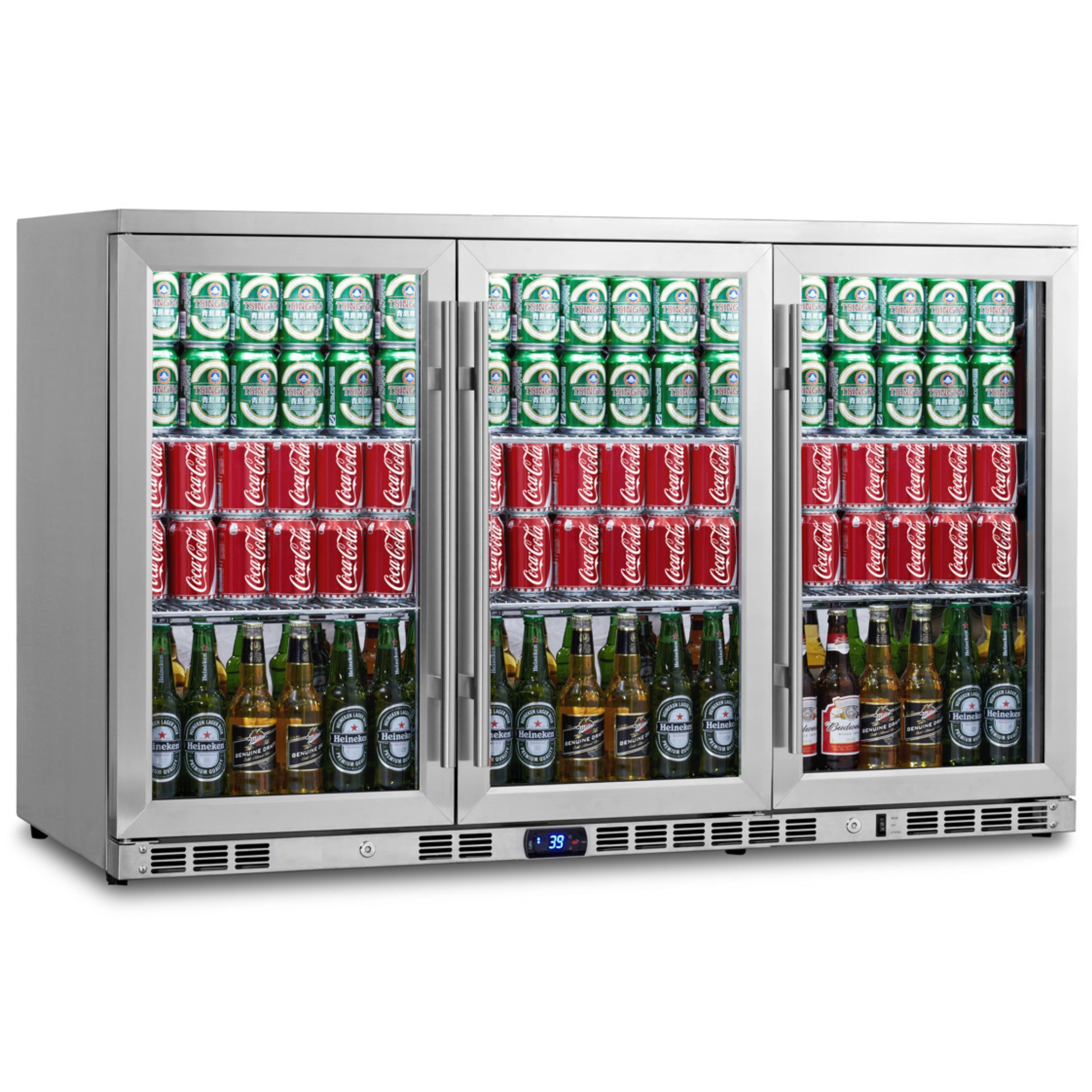

3 Door Stainless Under Bench Beverage Fridge
SIZE: 1335W x 545D x 860H mm
Boost your bar’s efficiency with the KingsBottle 3 Door Full Stainless Under Bench Beverage Fridge—a premium choice for Australia’s busiest venues. Designed to fit under commercial benches, this fridge is perfect for high-volume bars, pubs, or restaurants in Adelaide or the Outback, offering a 190 bottles (350ml) or 324 cans (330ml) capacity—ideal for keeping up with demand during peak events or busy nights.
Crafted with a full stainless steel exterior and interior, this fridge is built to endure the rigors of commercial use while maintaining a polished, professional look. The heated glass doors prevent fogging even in humid conditions, ensuring a clear view of your drinks, while the premium Italian CAREL controller delivers precise temperature control for consistent performance. Fully adjustable stainless steel shelves allow for easy organization, and fan-circulated cooling ensures every can stays chilled from top to bottom. Whether in a bustling pub or a high-end restaurant, this under-bench fridge delivers top-tier cooling with a stainless finish—your drinks are always ready to serve.
Specifications
General Information
- Dimensions: 1335W x 545D x 860H mm

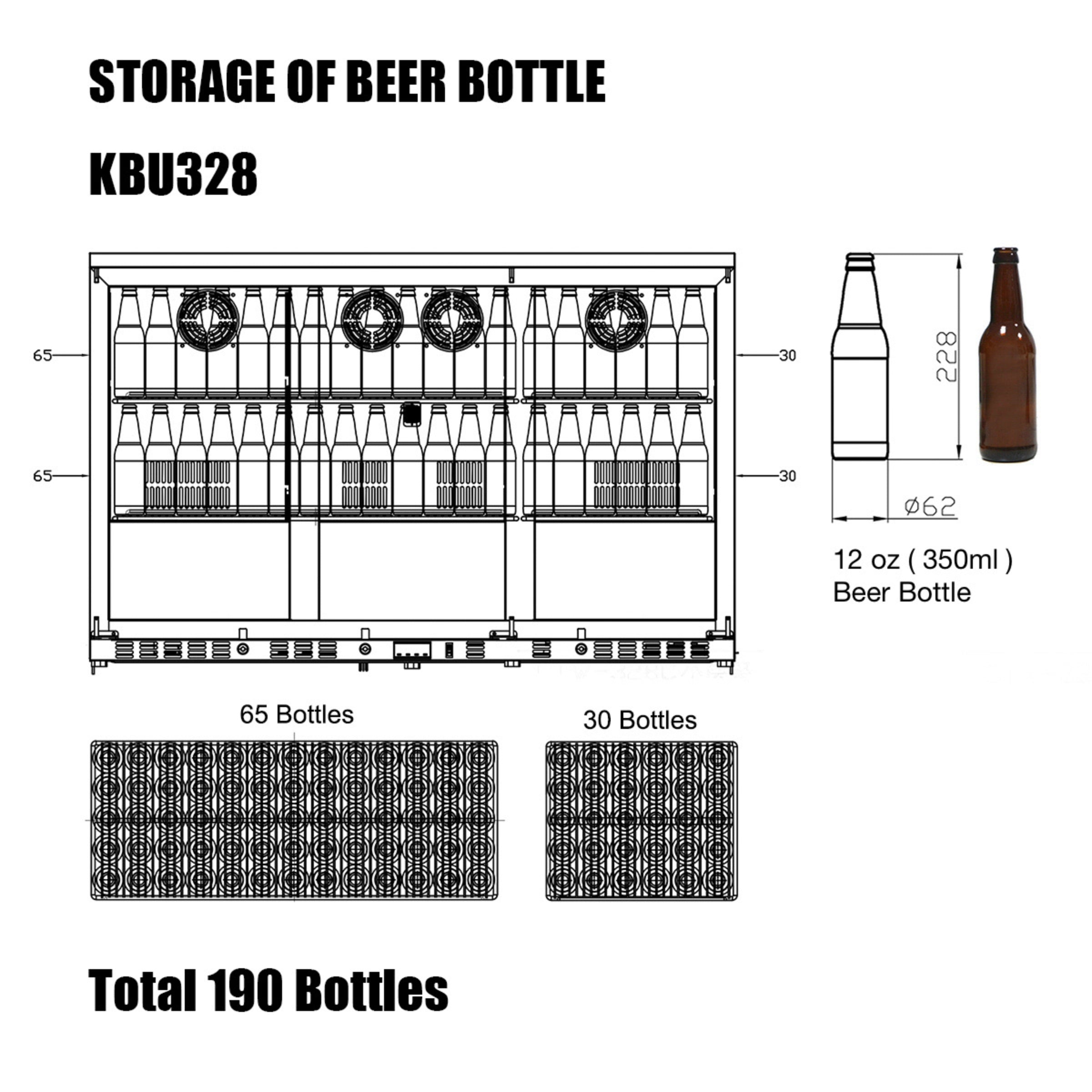

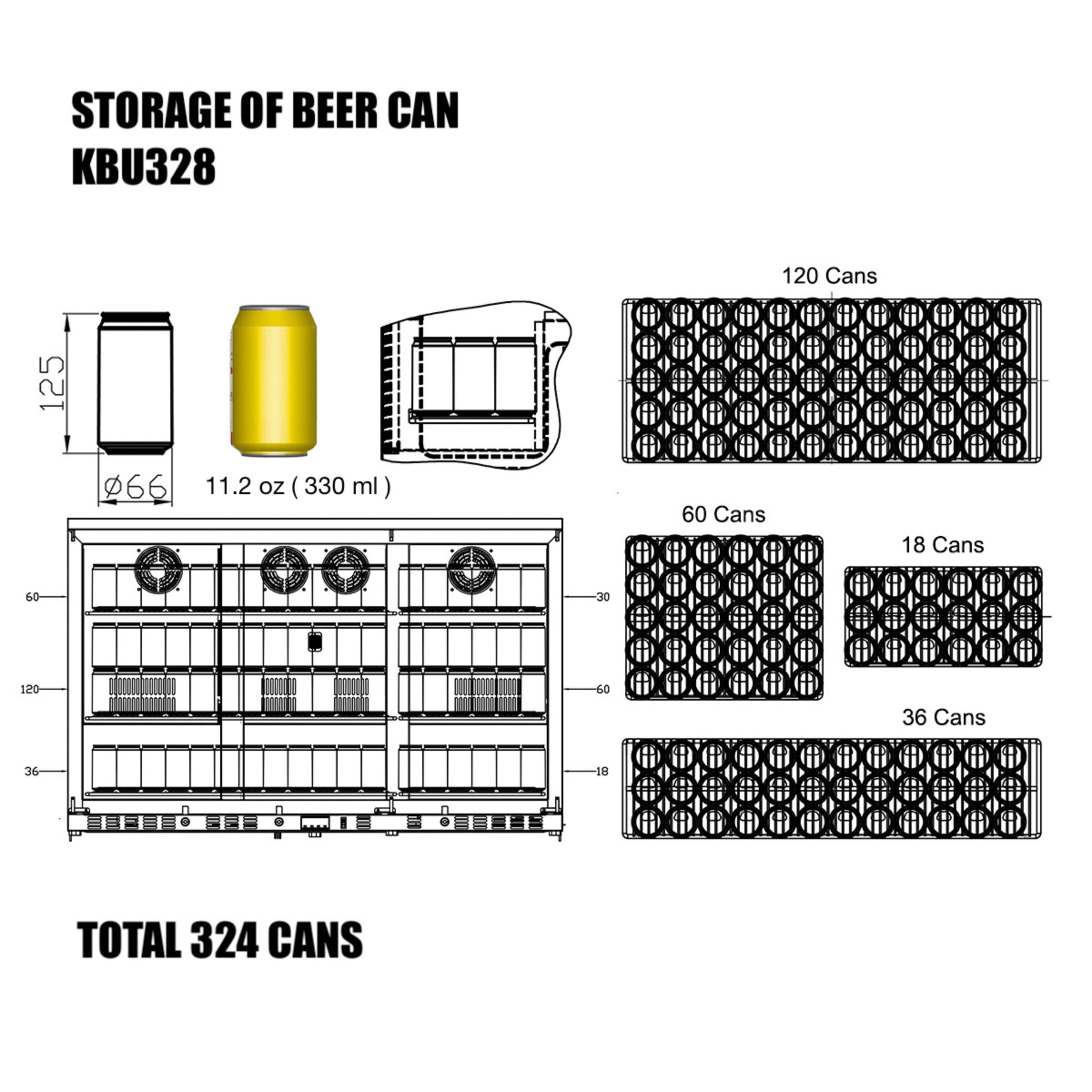

- Capacity: 190 bottles (350ml) or 324 cans (330ml)
- Net Weight: 120 kg
- Door: 3 stainless steel doors with heated glass
Key Features
Compressor: Embraco
Glass: Heated Glass
Cooling System: Fan-circulated for uniform temperature
Shelves: Chromed shelves, fully adjustable to meet storage needs.
Temperature Range: 1-8°C
Control: Carel Controller, Digital Thermostatic Control
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 1.58kw.h/24h (Heated Glass OFF) 2.31 kW.h/24h (Heated Glass ON)

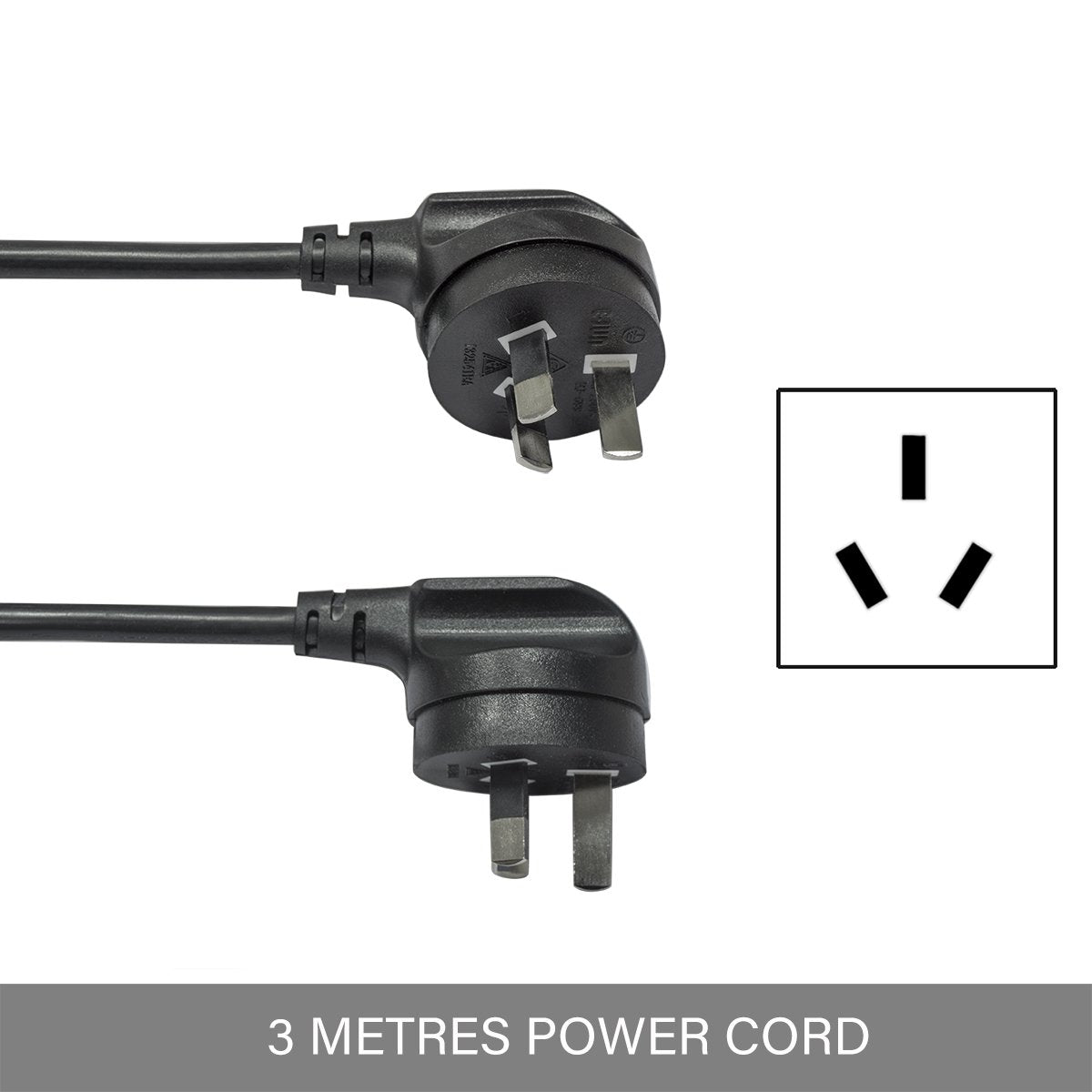

Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KB55/KB56/KB328M
Quiet Compressor
Packs a top-quality compressor that runs super quiet and vibration-free, keeping your drinks chilled without any fuss.
Fan Circulated Air-Cooling System
Keeps the cabinet temp even from top to bottom;
Manages humidity to look after your stash.
Activated Carbon Filter
Grabs airborne nasties;
Keeps the air inside fresh and pong-free.
Digital Temperature Control
Features a premium Carel controller from Italy, giving you spot-on temp control to keep your drinks just right.
Fully Adjustable Chromed Metal Shelves
Shiny chromed shelves you can tweak to suit your storage needs.
Heated Glass Door
Toughened safety glass with a conductive film stops fogging with adjustable low-E heat settings (Weak/Medium/Strong), kicking in with the compressor.
Notice: Glass temp (27-34°C) needs to stay clear of rain and outdoor exposure.
Stainless Steel Cabinet and Door Frame

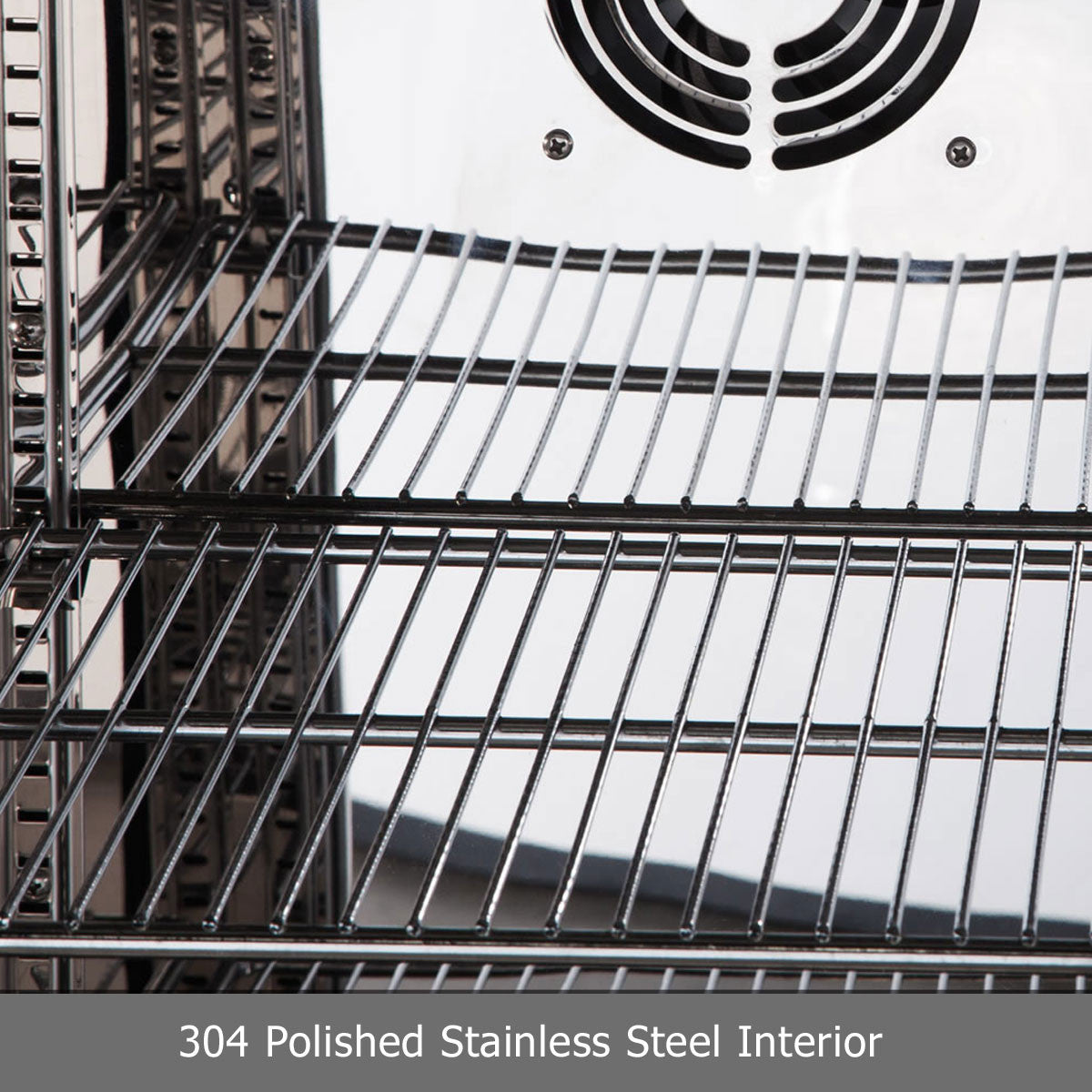

Built tough with commercial-grade 304 stainless steel inside and out.
Dimensions & Diagrams

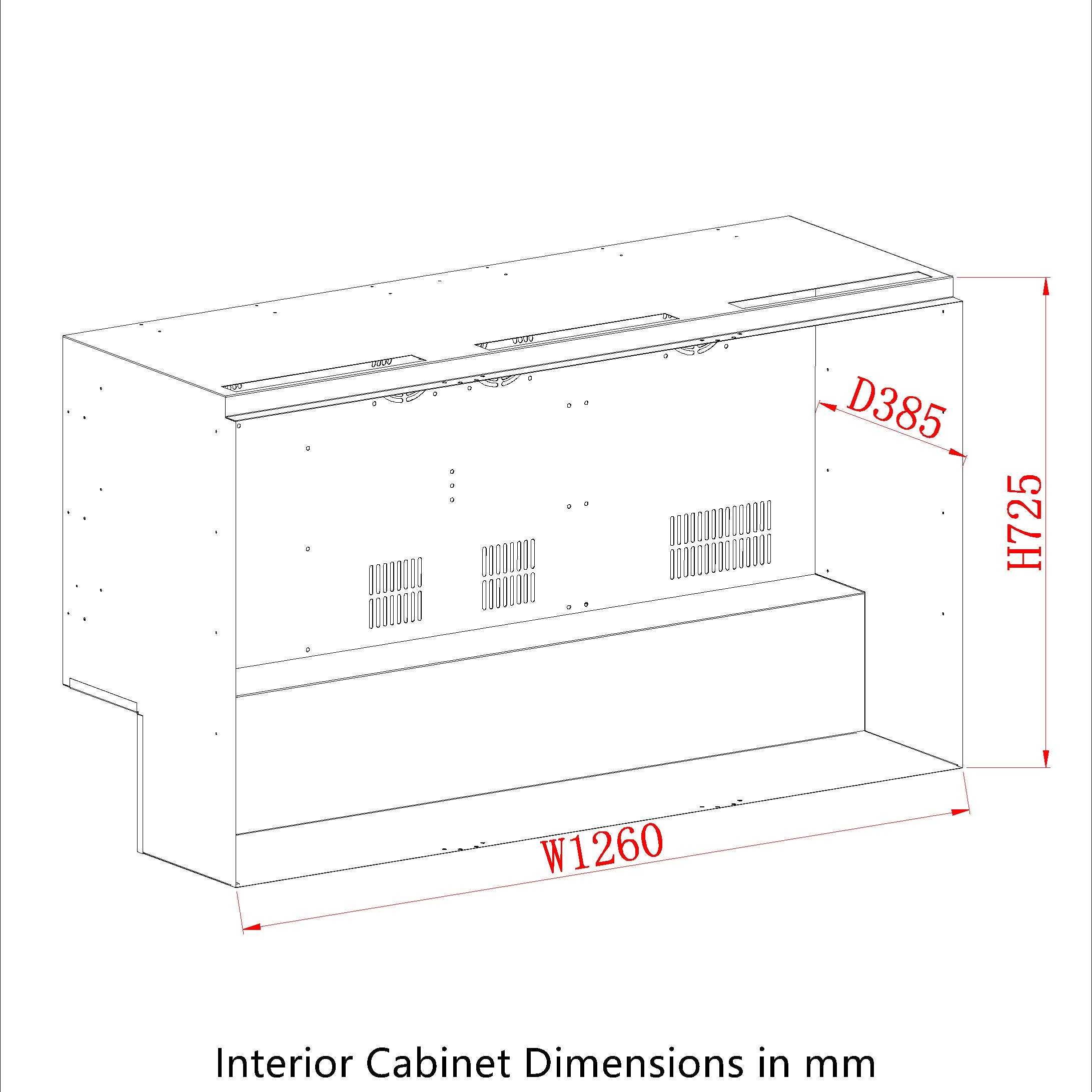

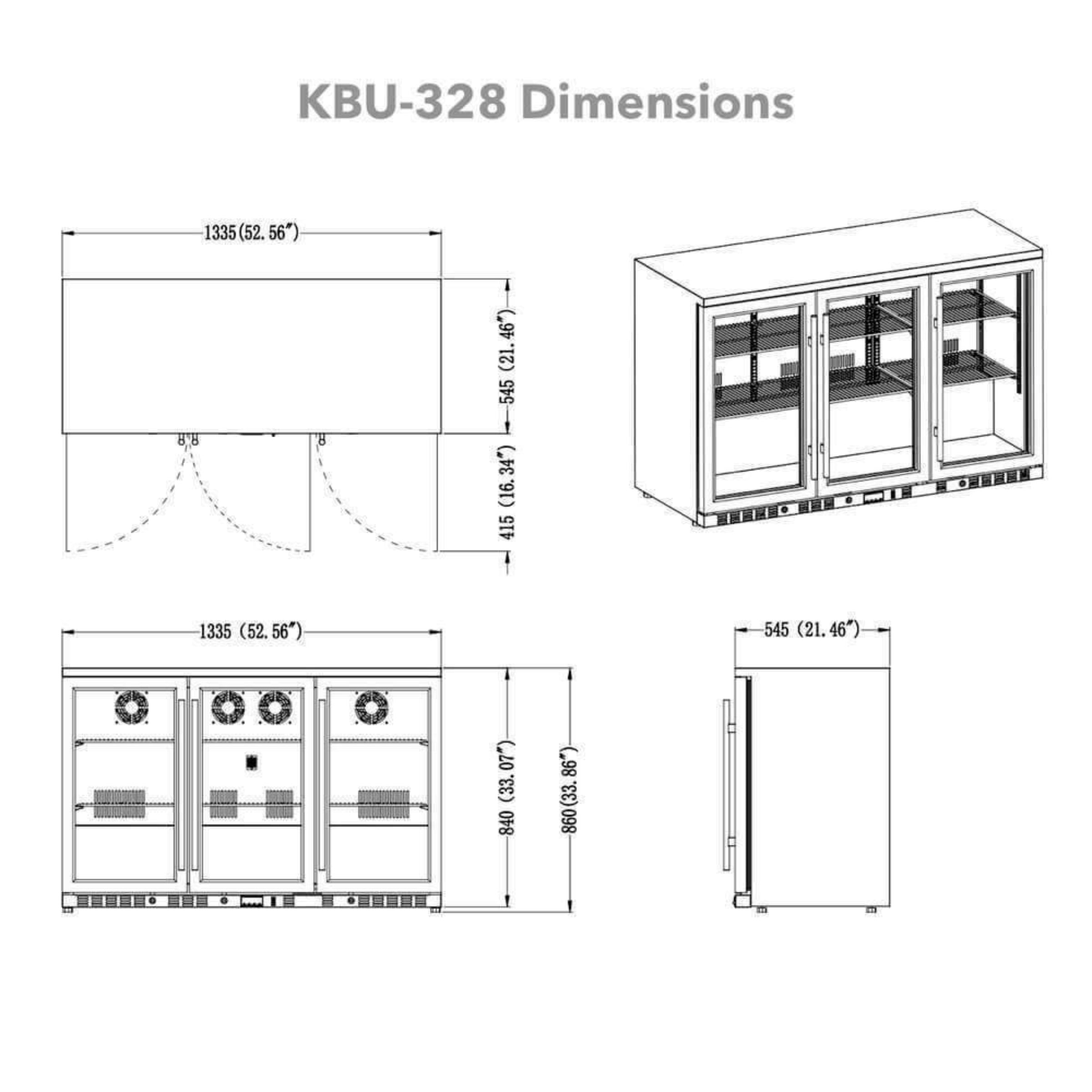

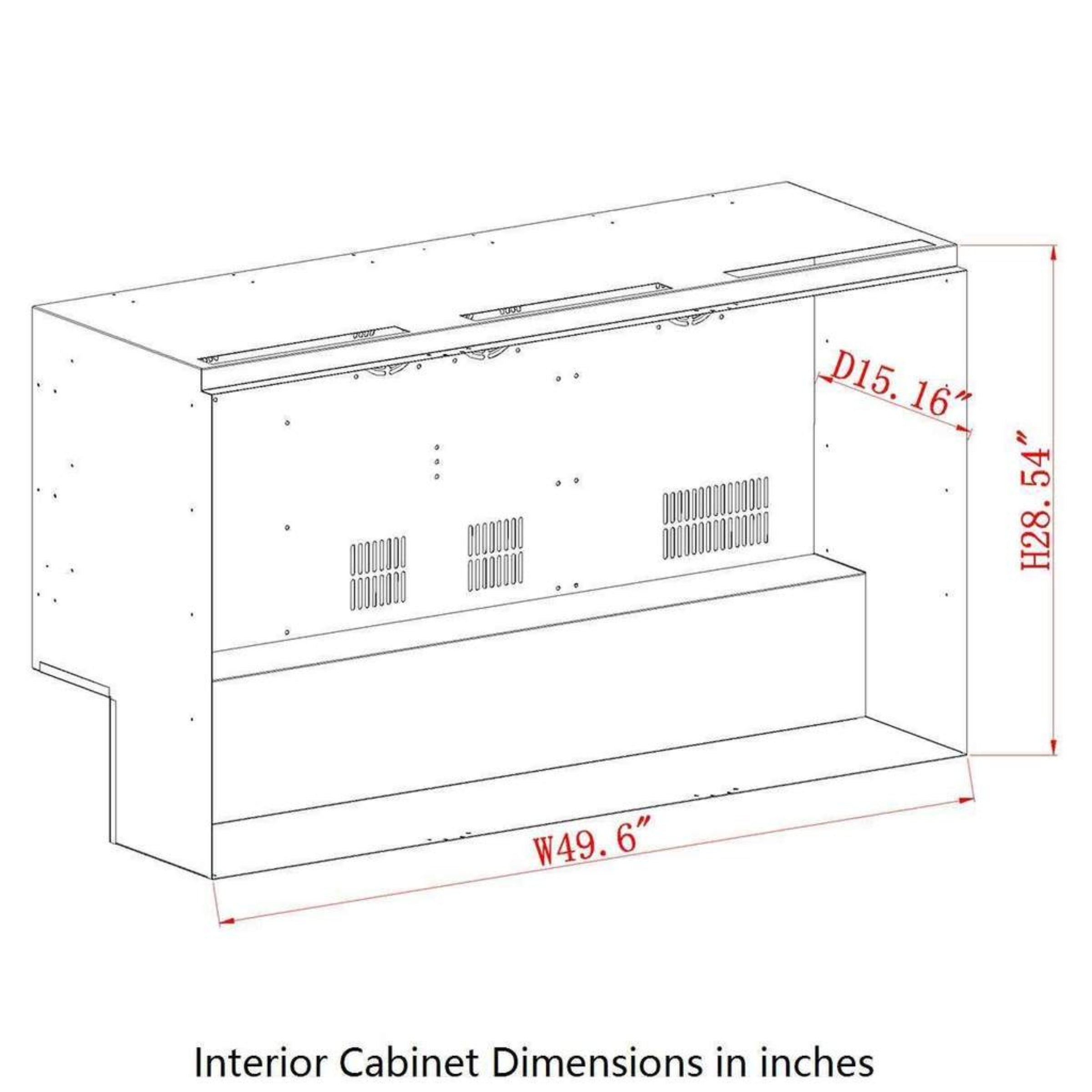

Technical Dimensions

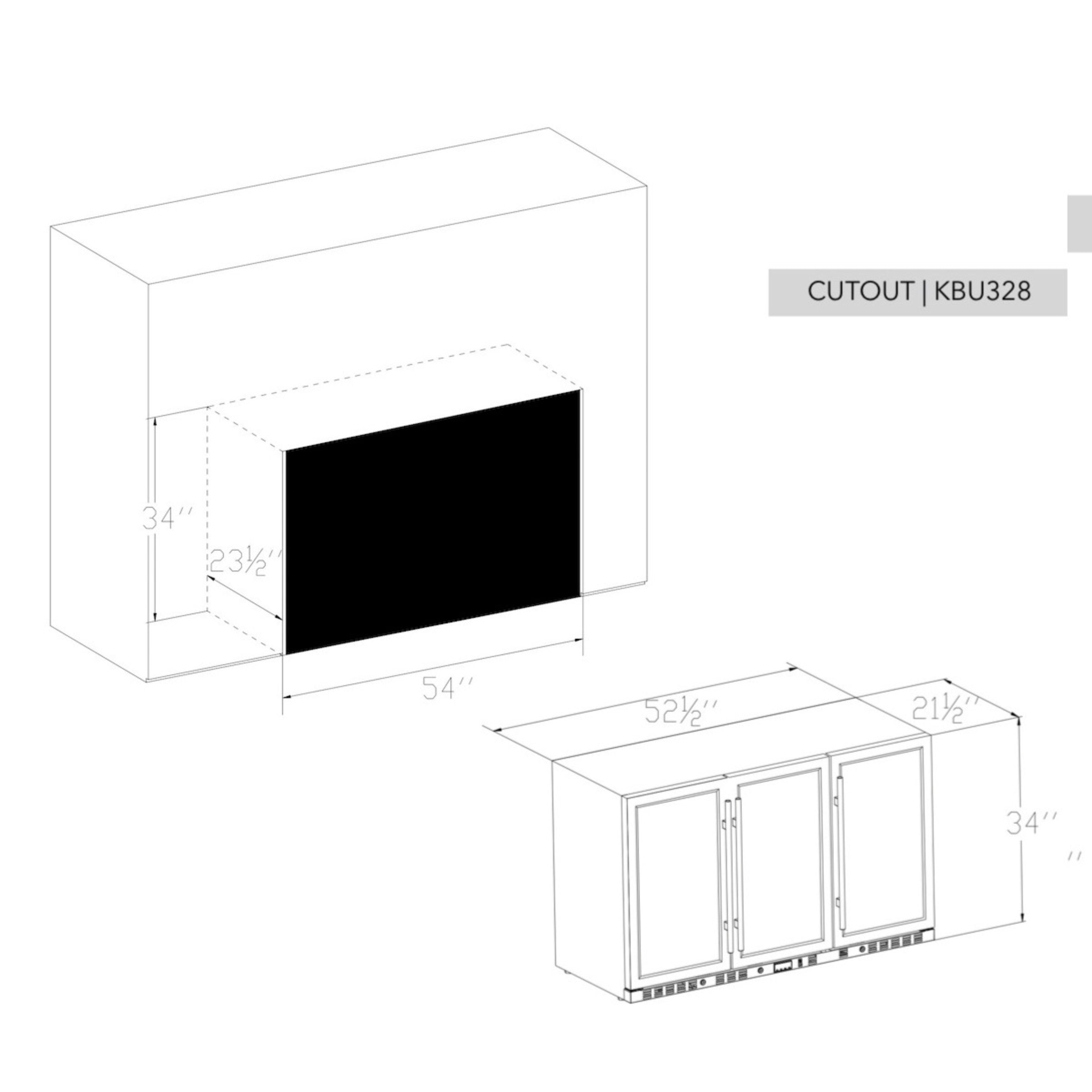

Installation Diagrams
User Manual For KB55 | KB56 | KB328
