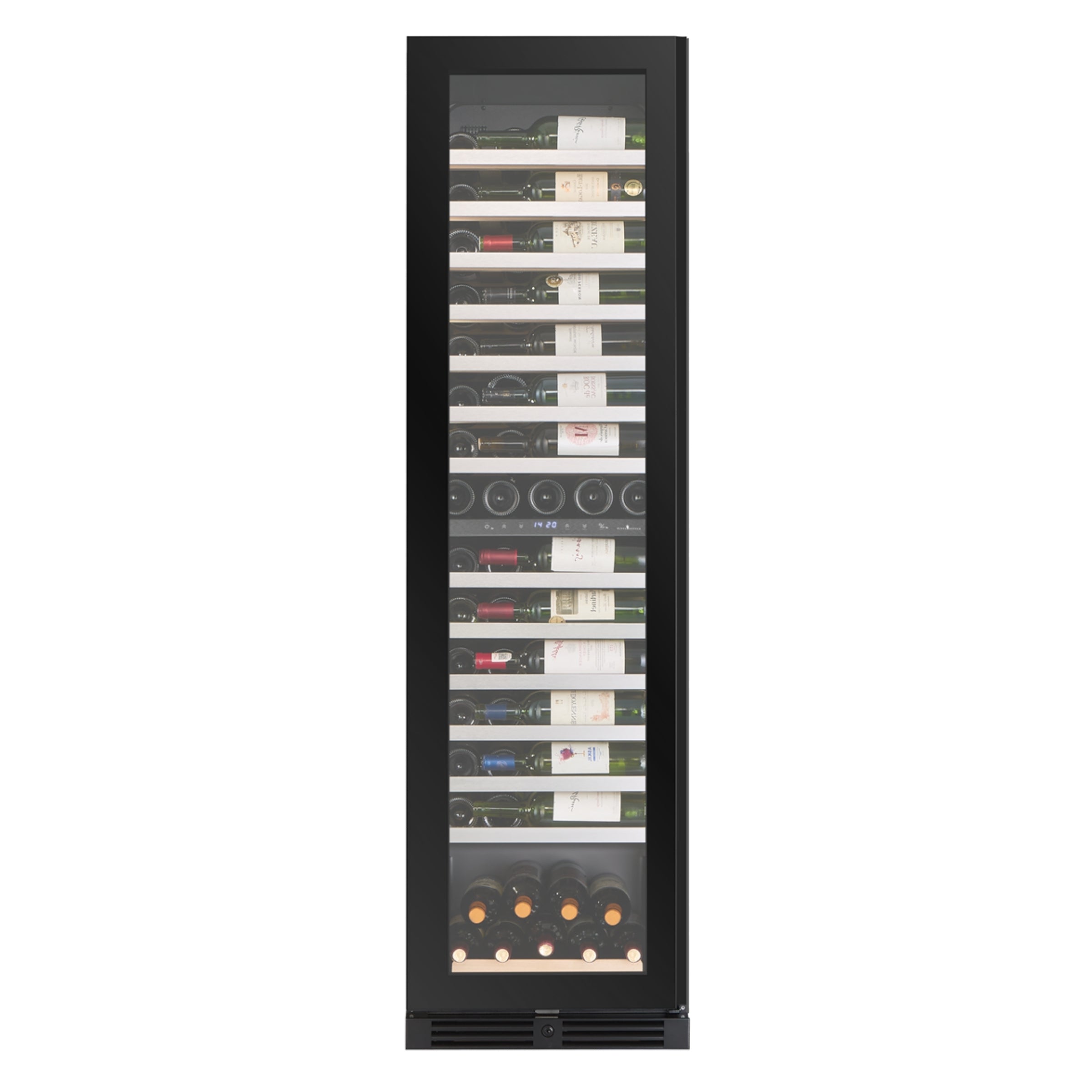

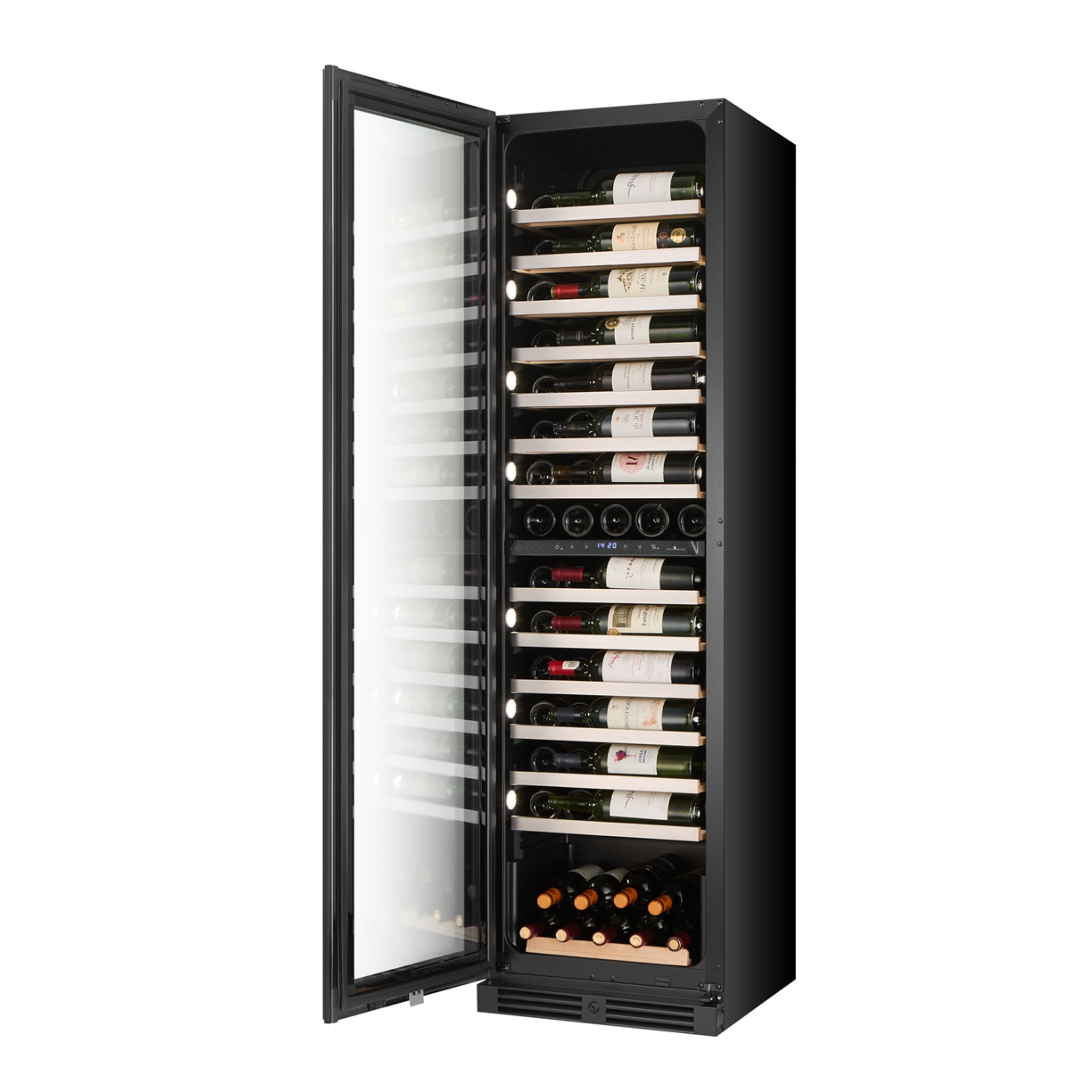

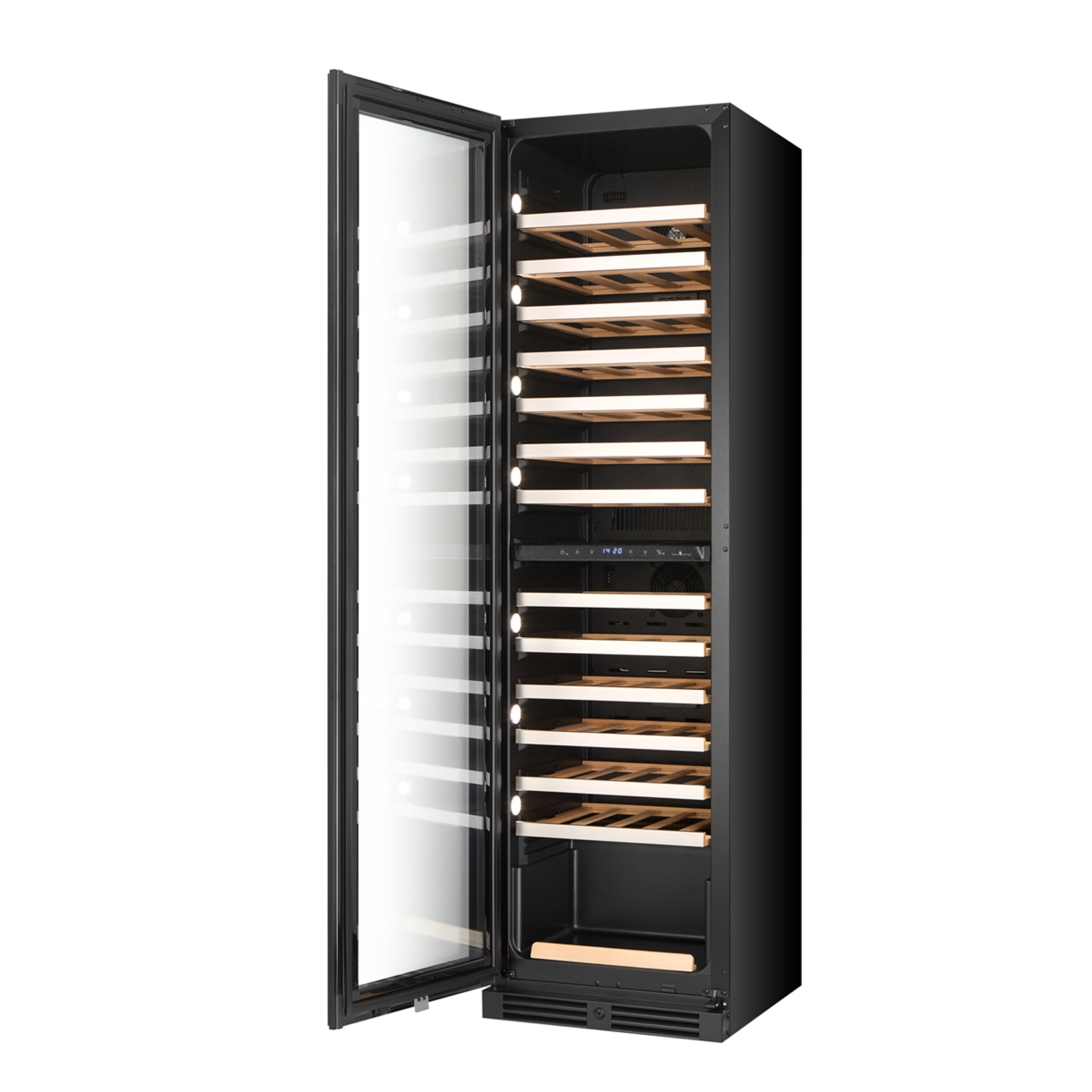

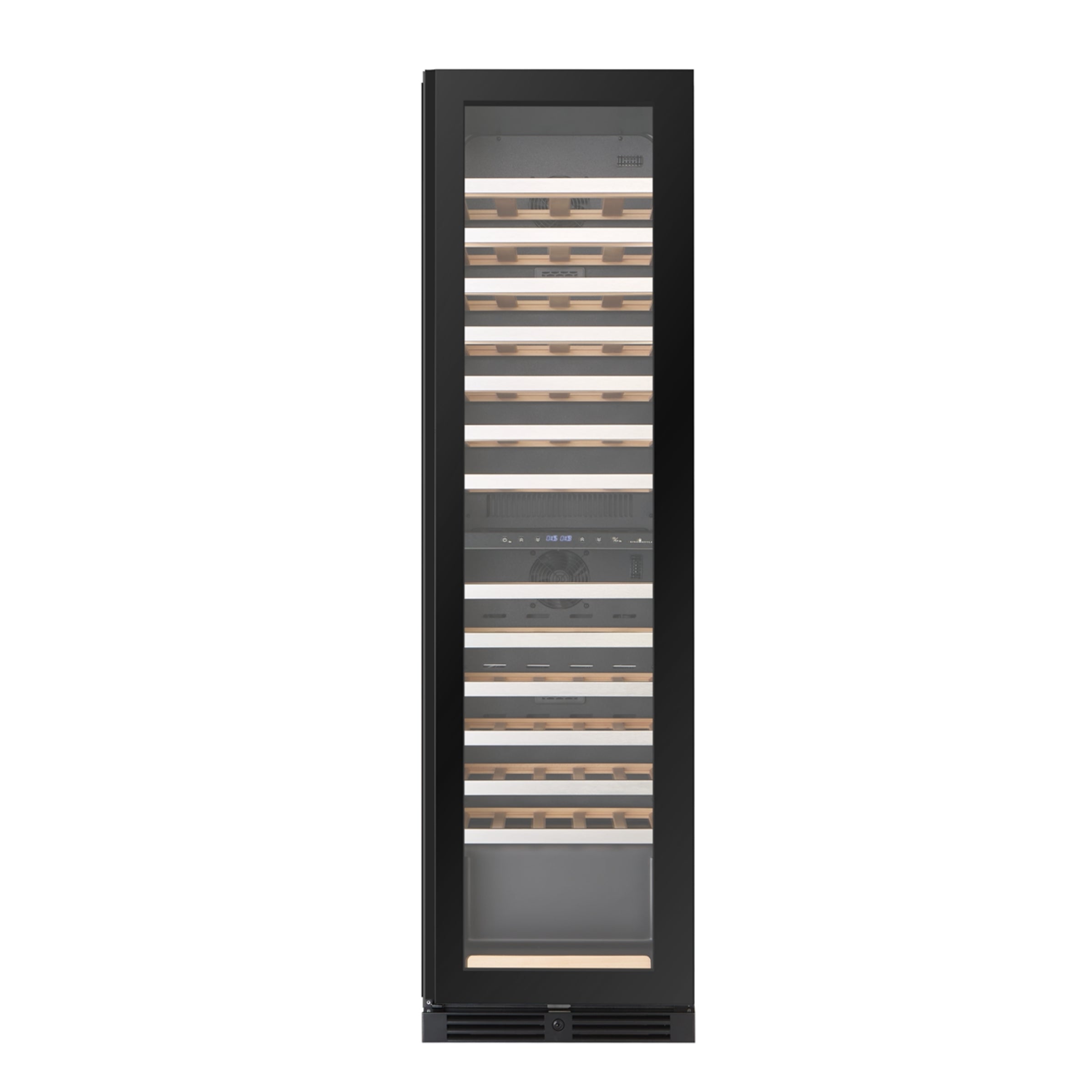

Atelier Duo - 1775mm High Sleek Dual Zone Refrigerator with Premium Performance
SIZE: 490W x 540D x 1775H mm

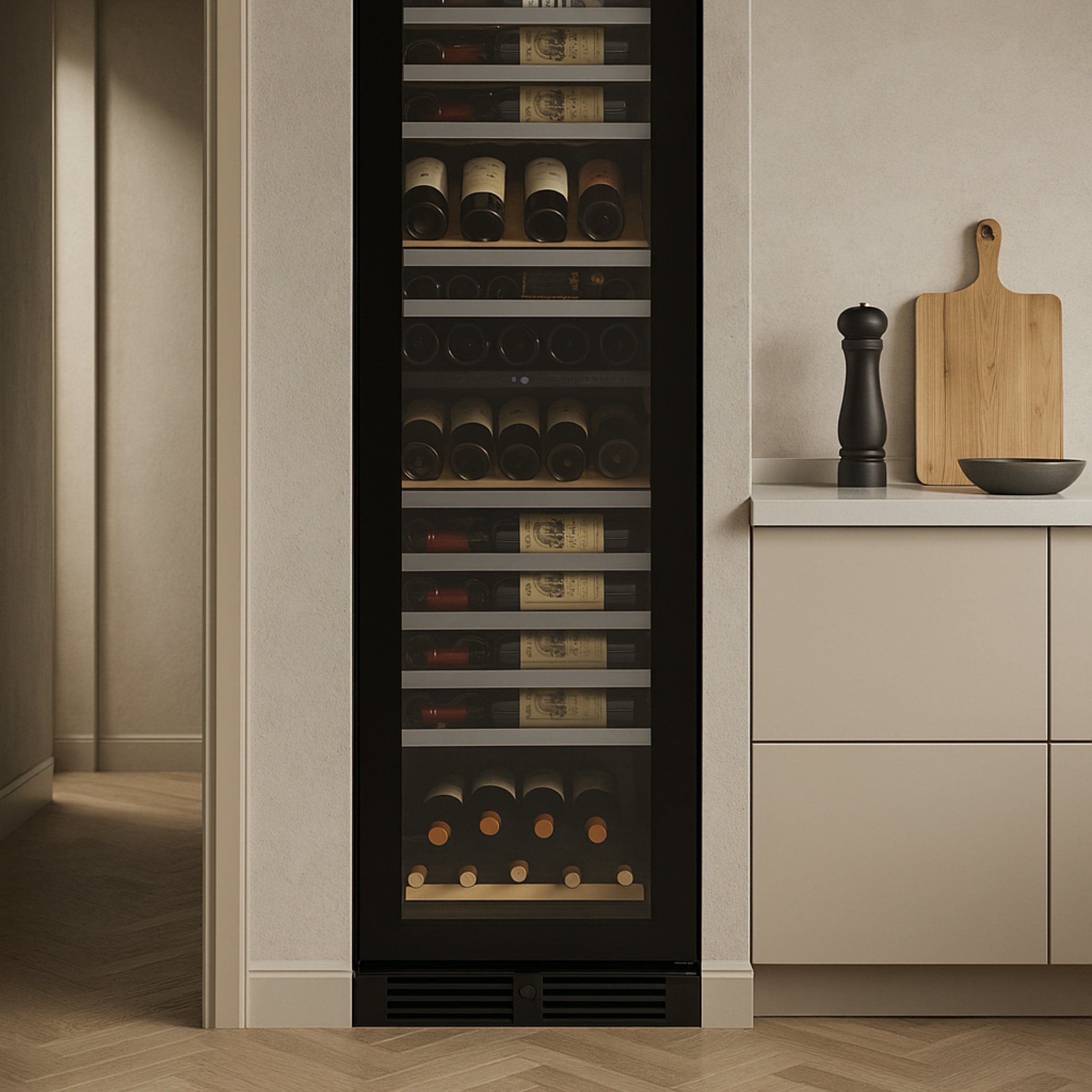

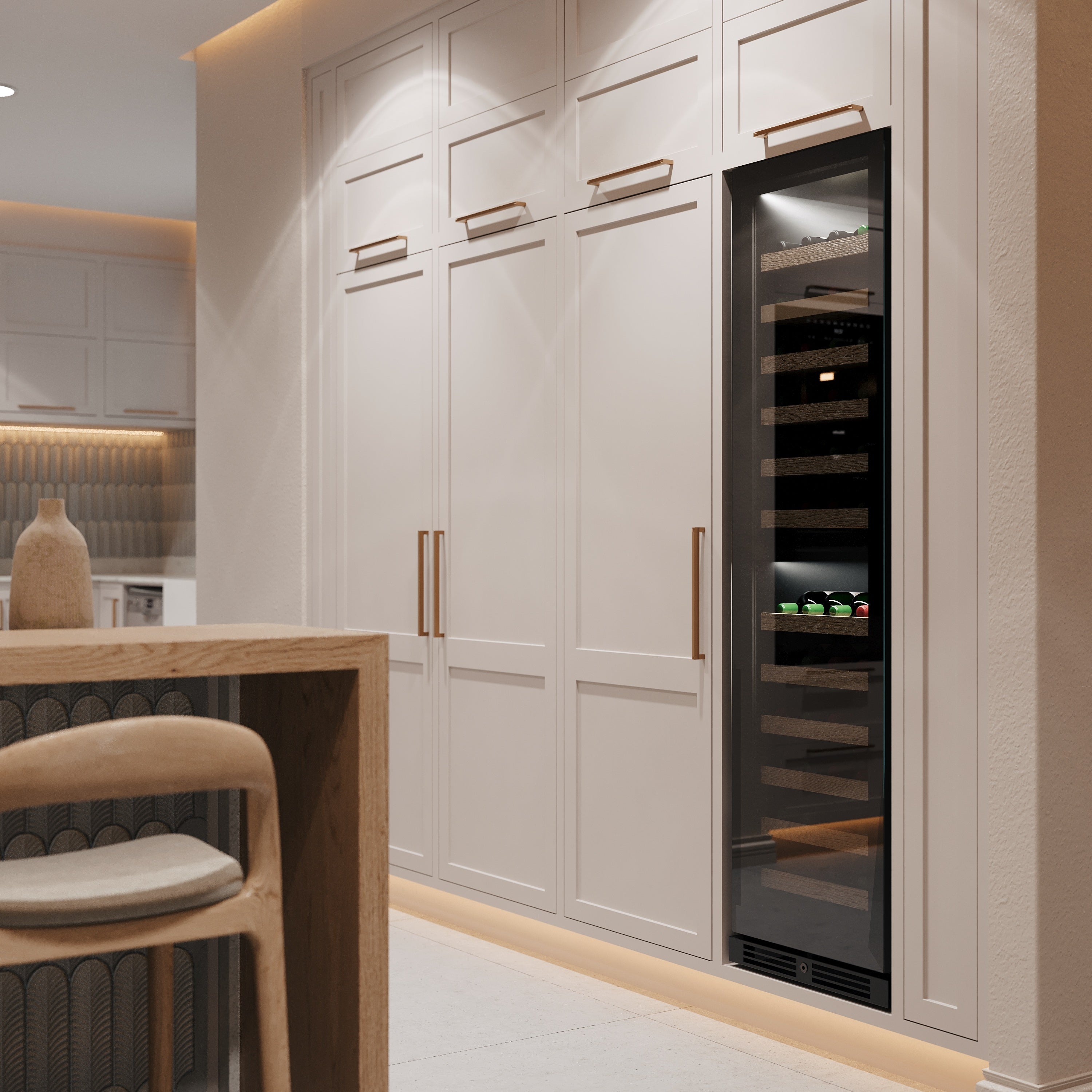

At just 490mm wide—narrower than the standard 600mm—and 540mm deep, the Atelier Duo mirrors the space-conscious profile of the Atelier Series, enabling it to fit where most dual-zone fridges can’t. Whether you’re outfitting a narrow galley kitchen, sliding it into a built-in cabinet, or placing it freestanding in a contemporary apartment, the Duo delivers uncompromising storage in a minimal footprint.

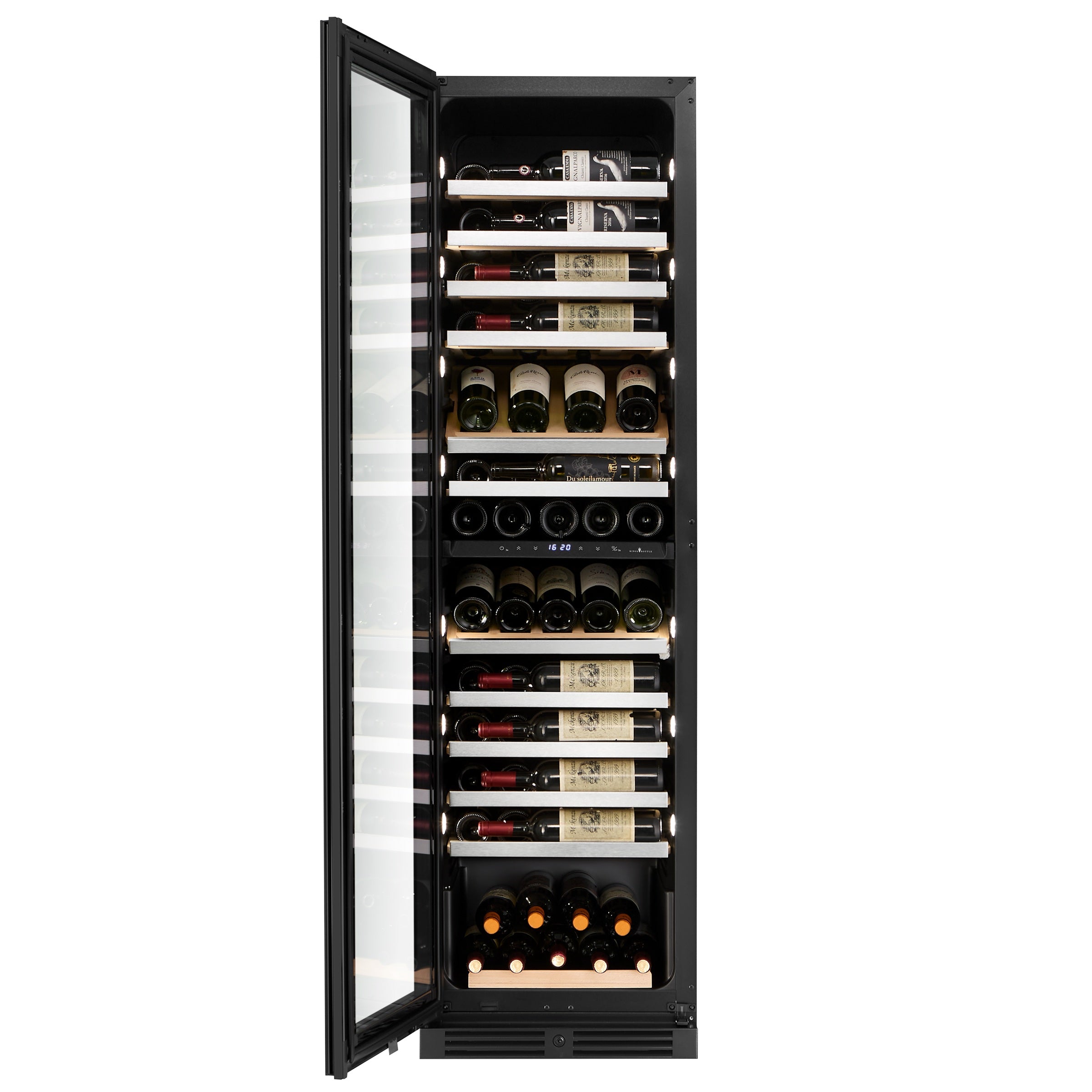

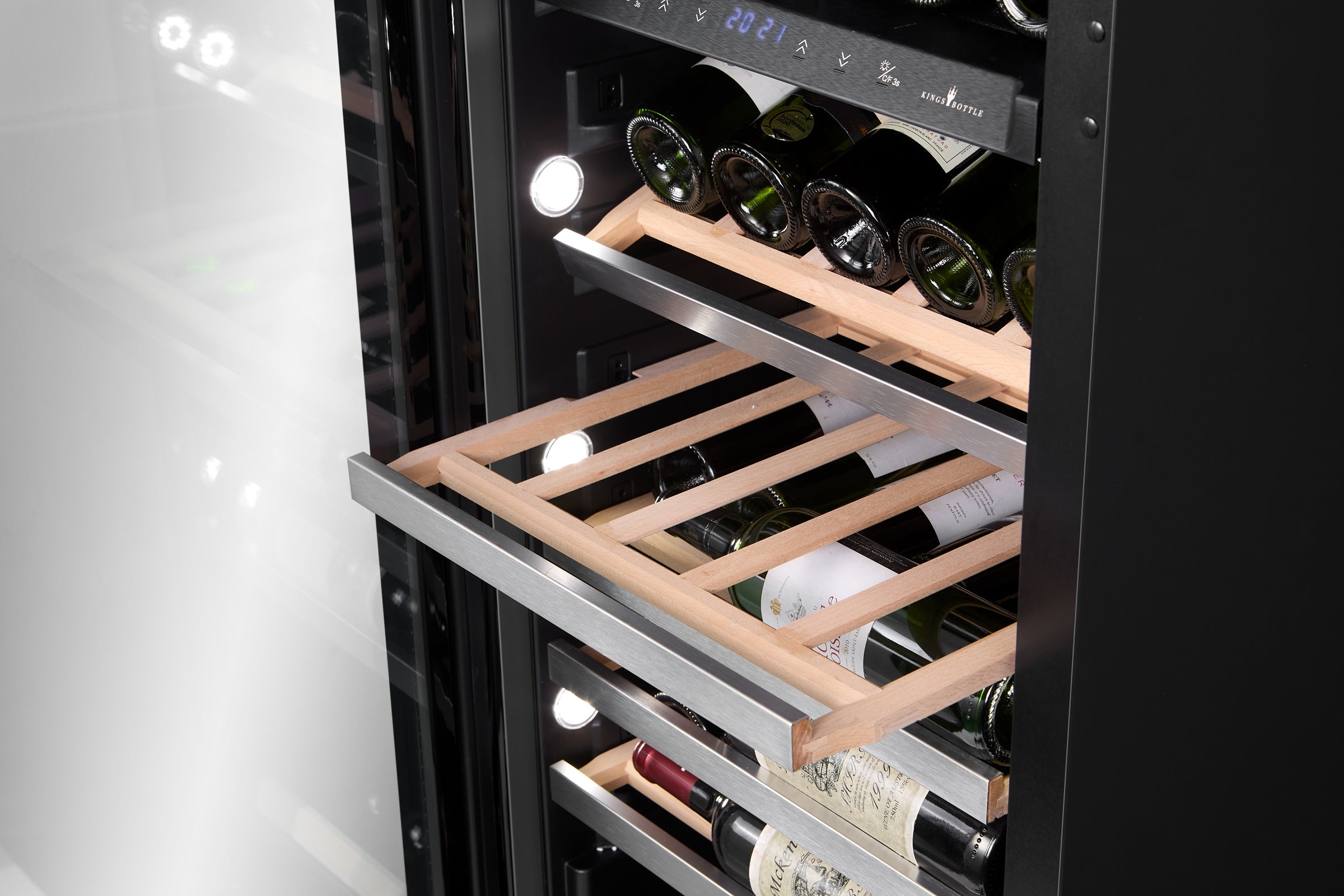

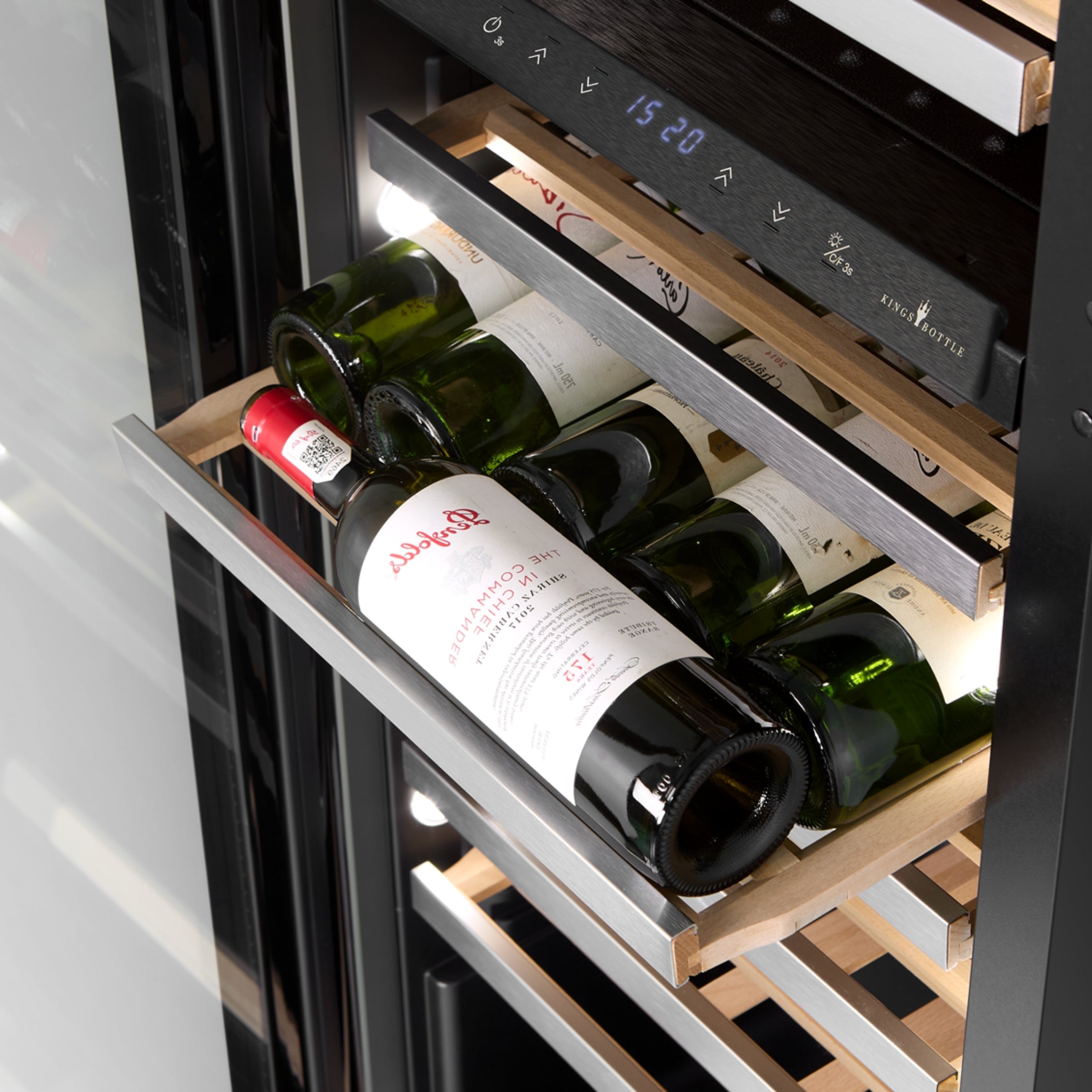

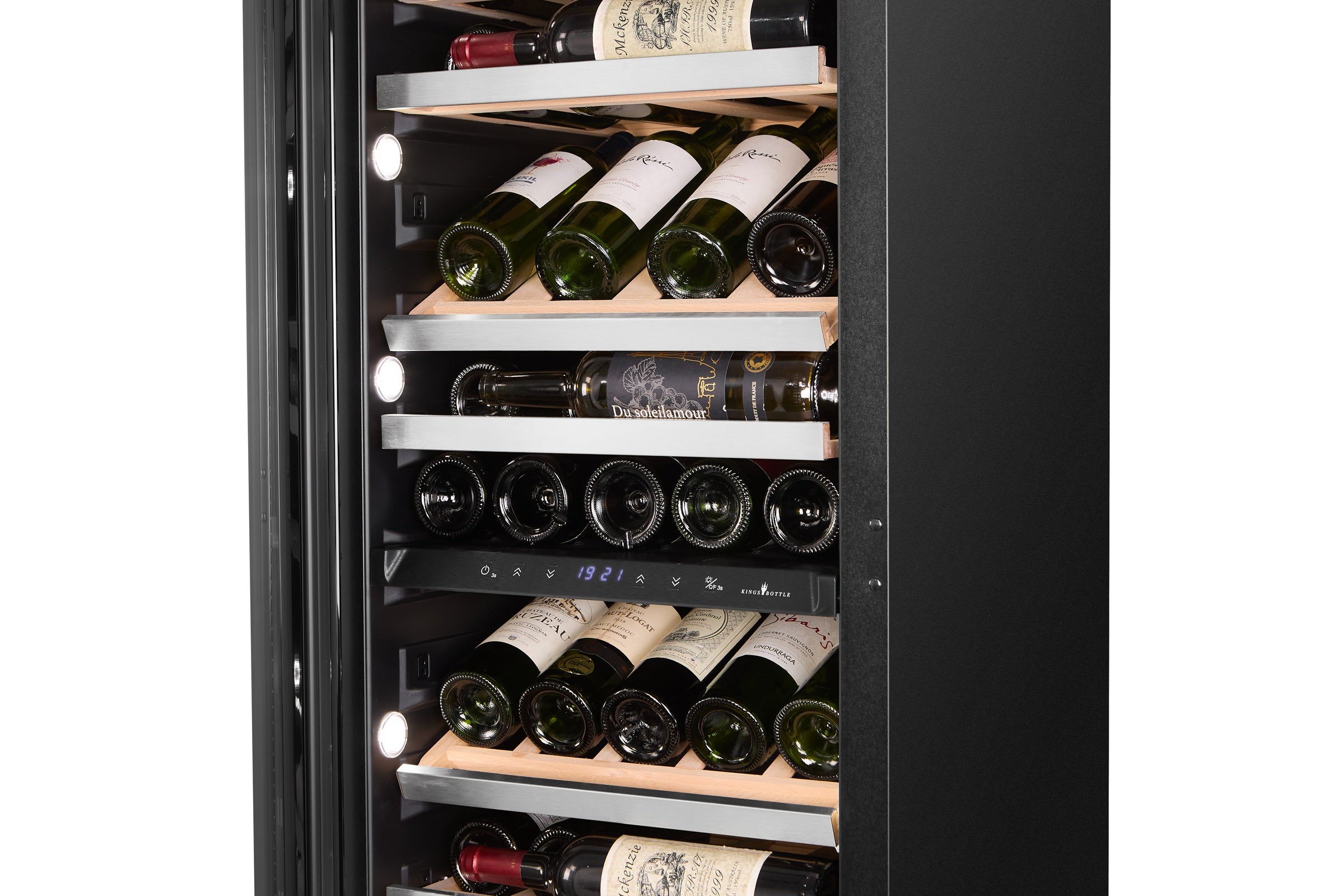

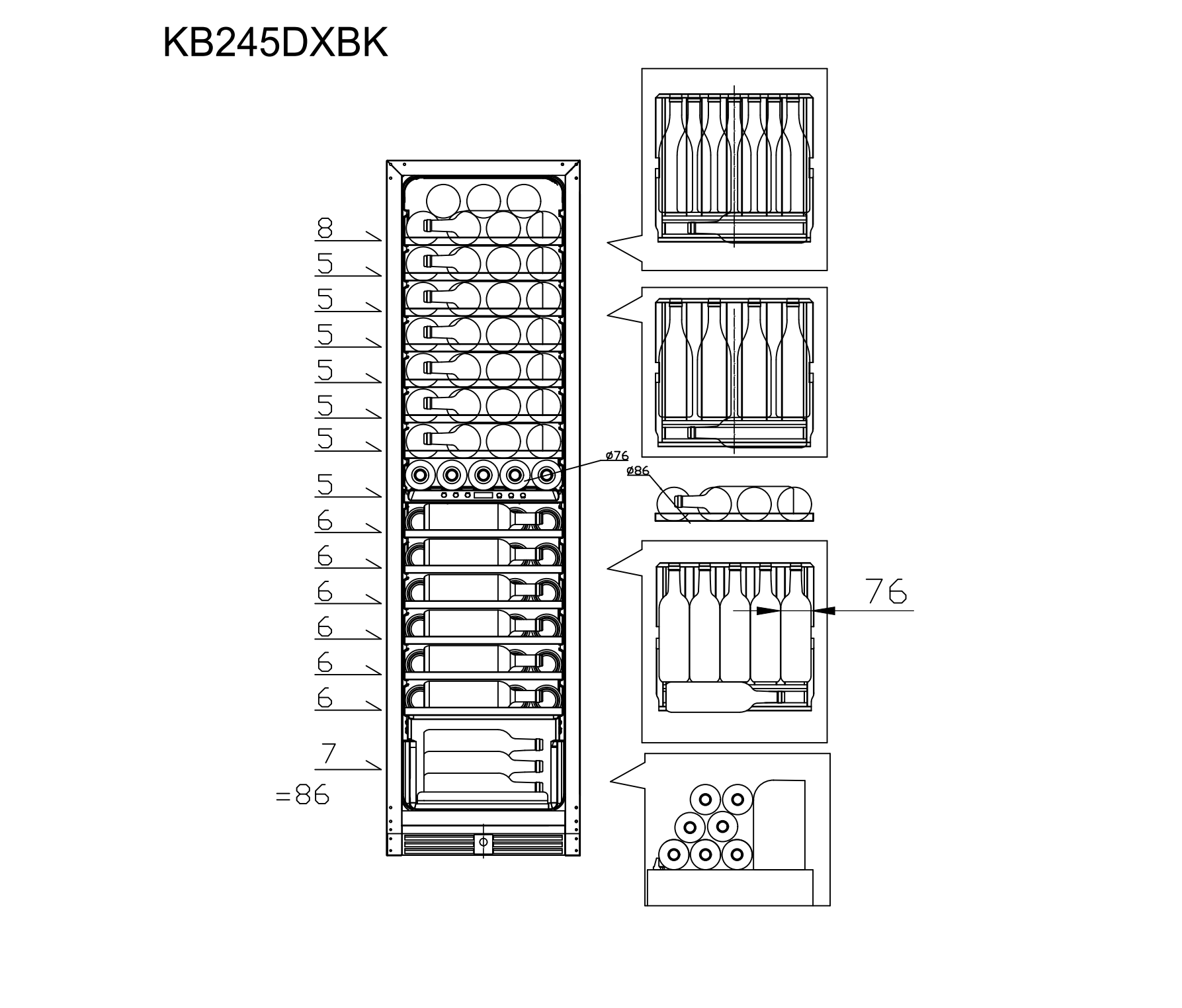

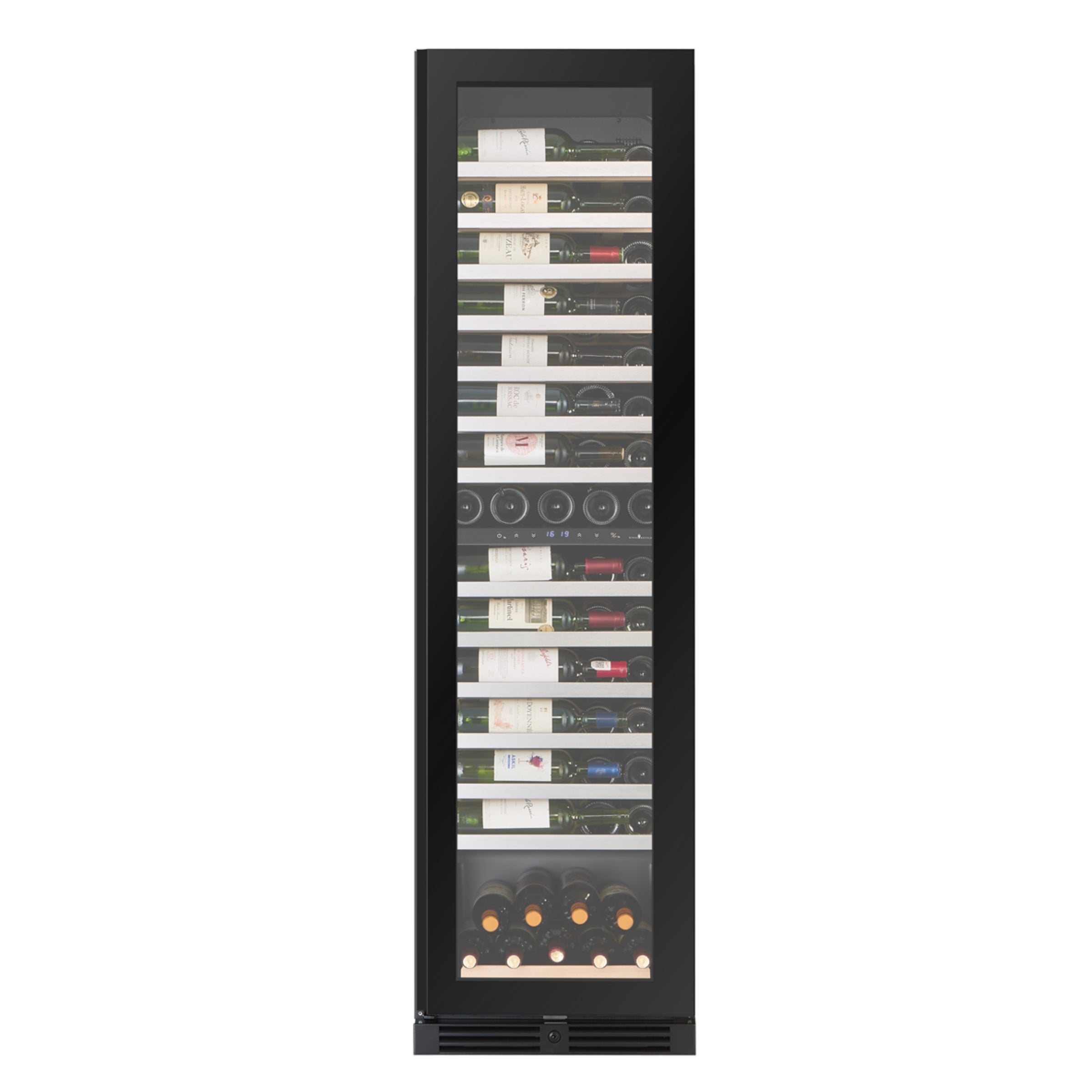

The Atelier Duo is expertly designed to accommodate distinct wine varietals in their optimal environments. The upper zone features 7 beech wood shelves tailored for Burgundy bottles (up to 86mm diameter), while the lower zone holds 6 matching shelves crafted for Bordeaux bottles. This precise configuration supports a balanced storage capacity of up to 86 bottles, with bottle orientation and airflow optimized for aging and display.
Specifications
General Information
- Dimensions: 490W x 540D x 1775H mm
- Capacity: 245 litres (86 bottles, fit for different bottles type)
- Net Weight: 65 kg

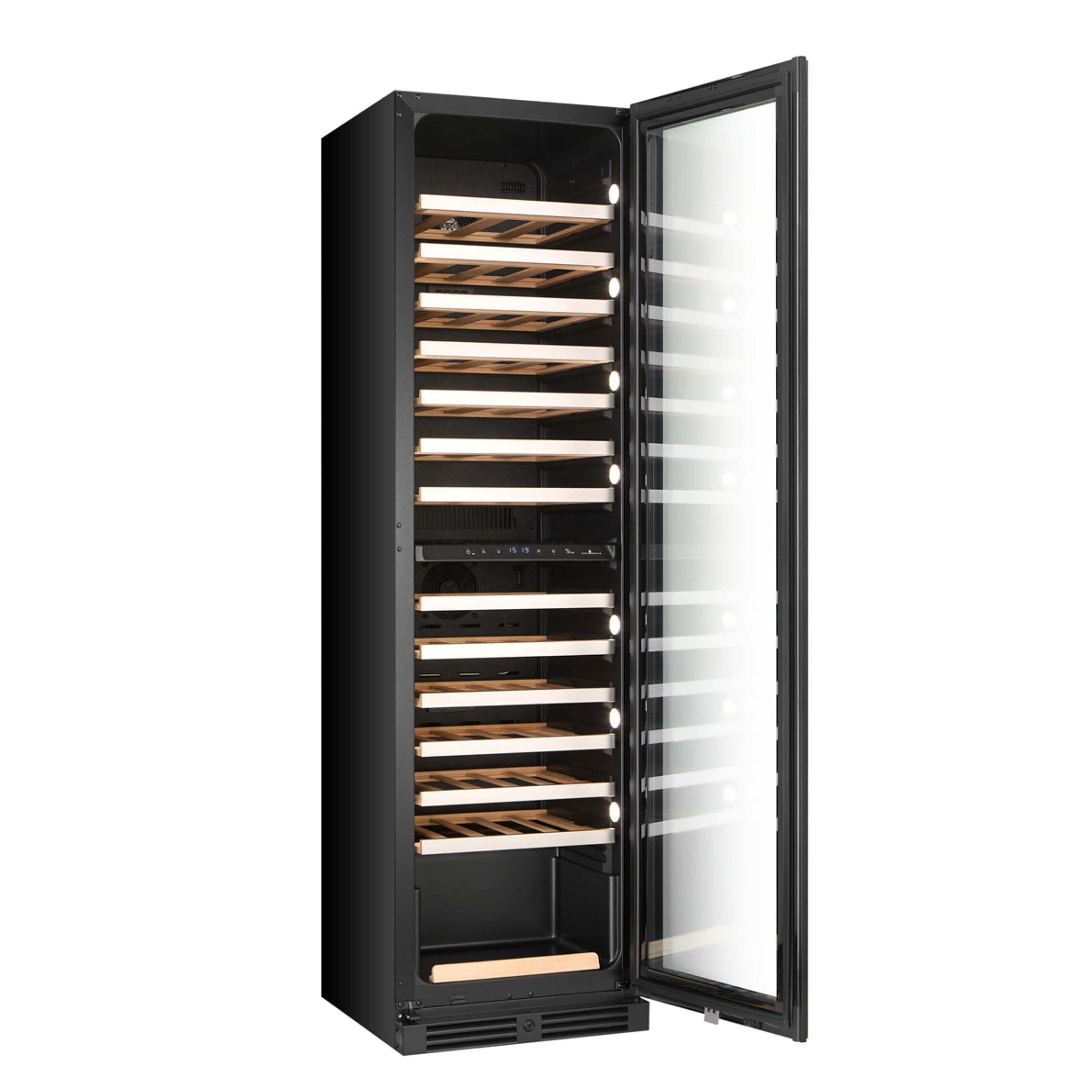

- Door: Reversible (left or right hinge options), lockable for security
Key Features
Compressor: Inverter—quiet (41.6 dB), energy saving
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature

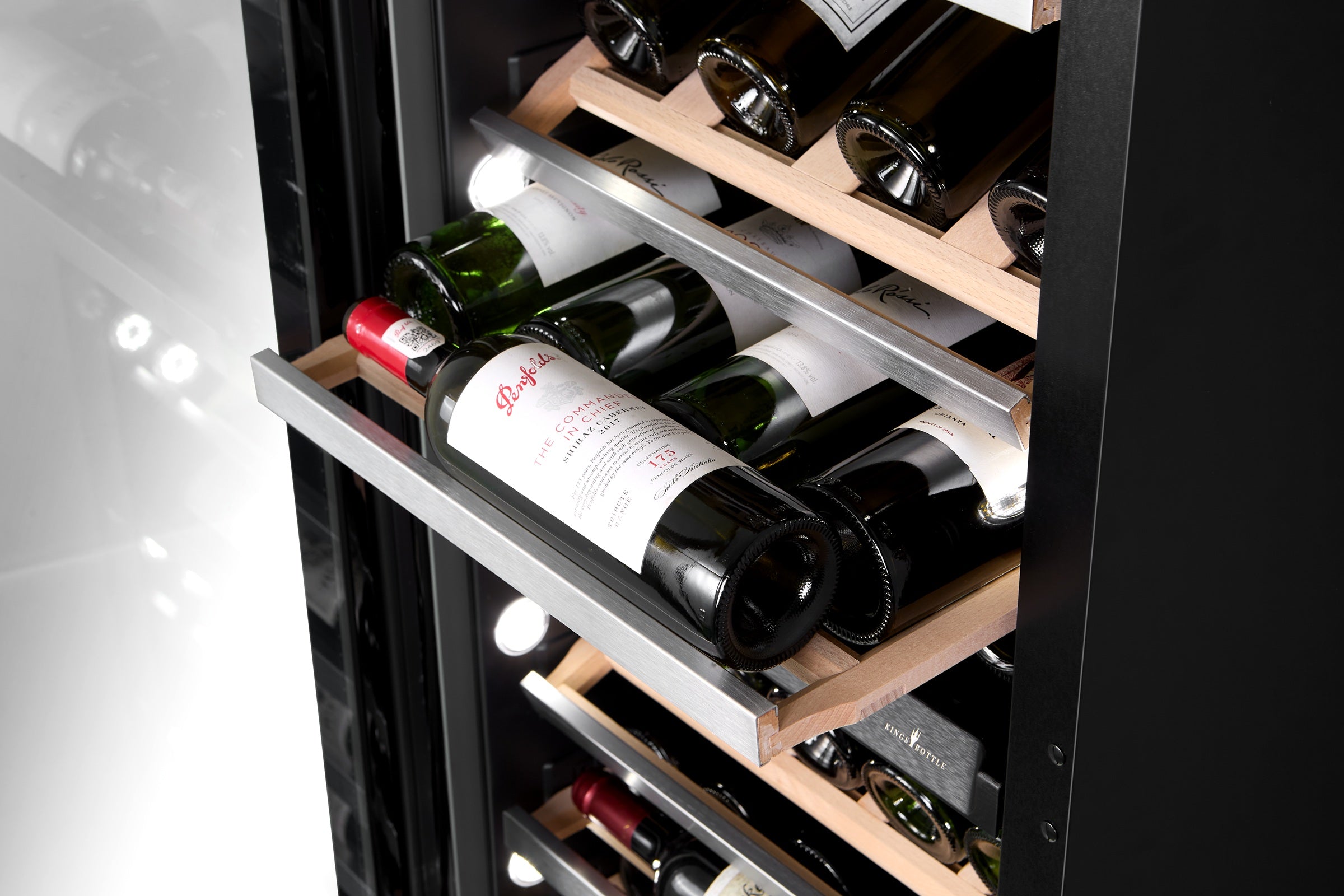

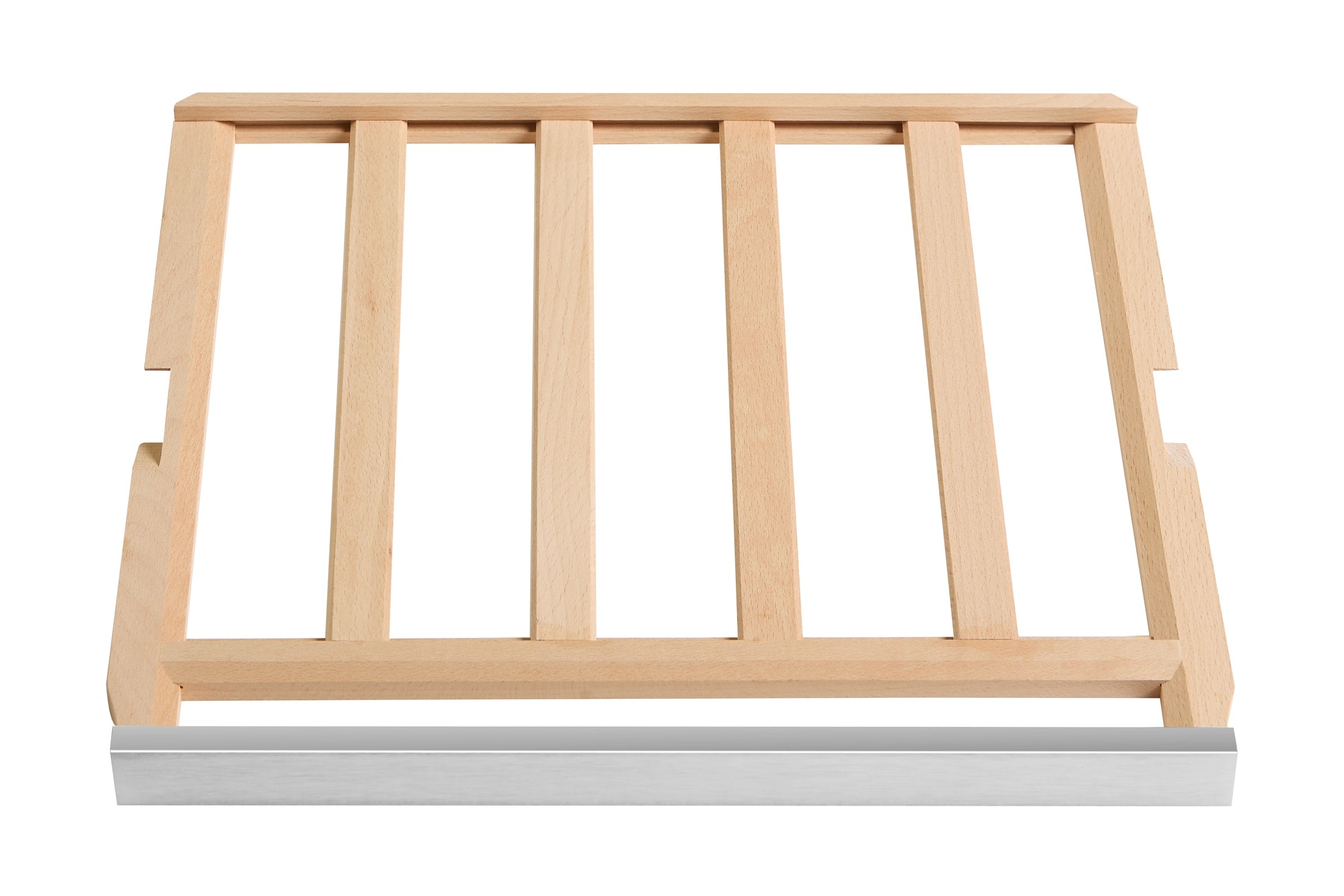

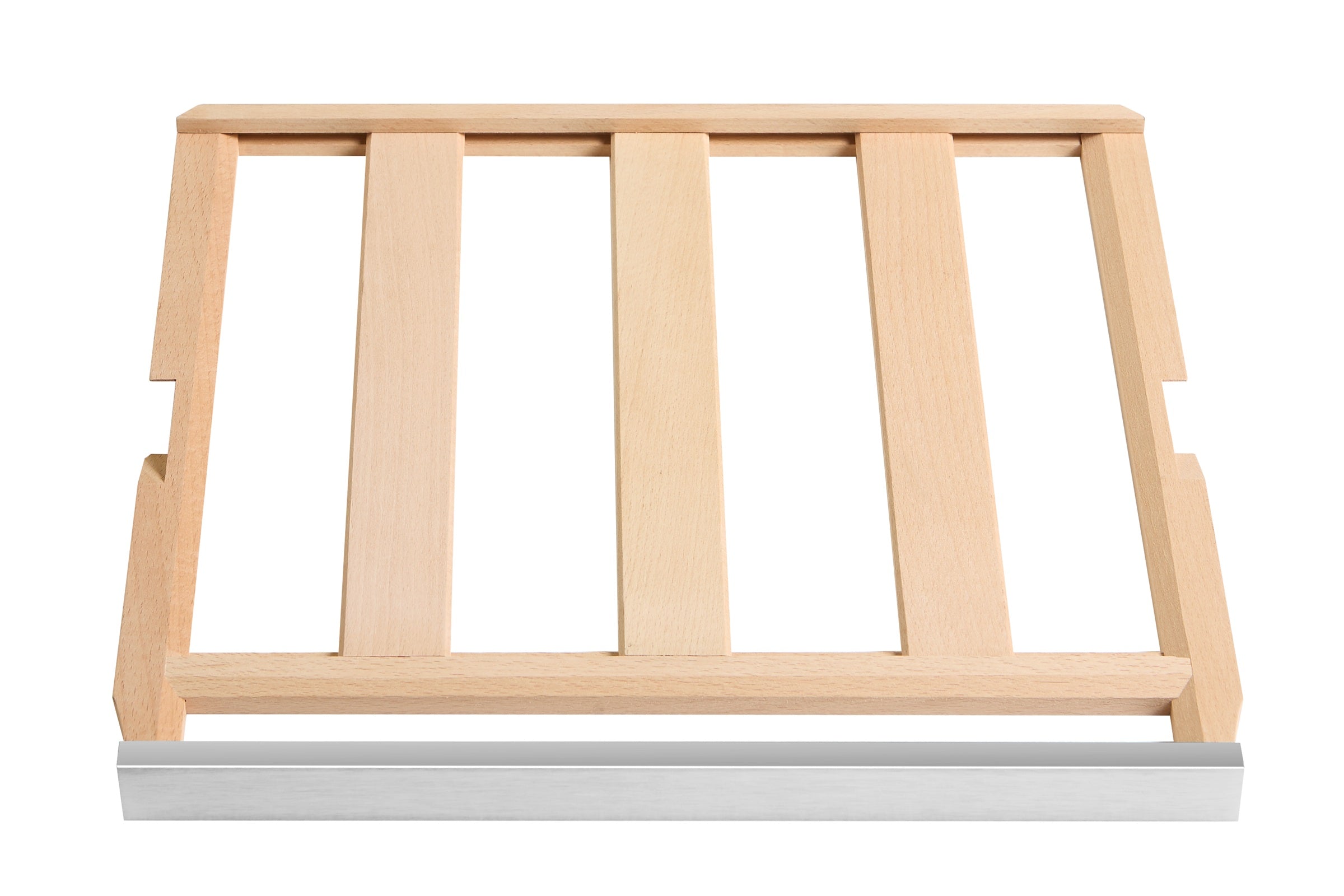

Shelves: 7 pcs beech wood shelves for Burgundy bottles (up to 86mm in diameter) in upper zone; 6 pcs shelves for standard bottles (76mm in diameter) in lower zone
Temperature Range: 2-20°C

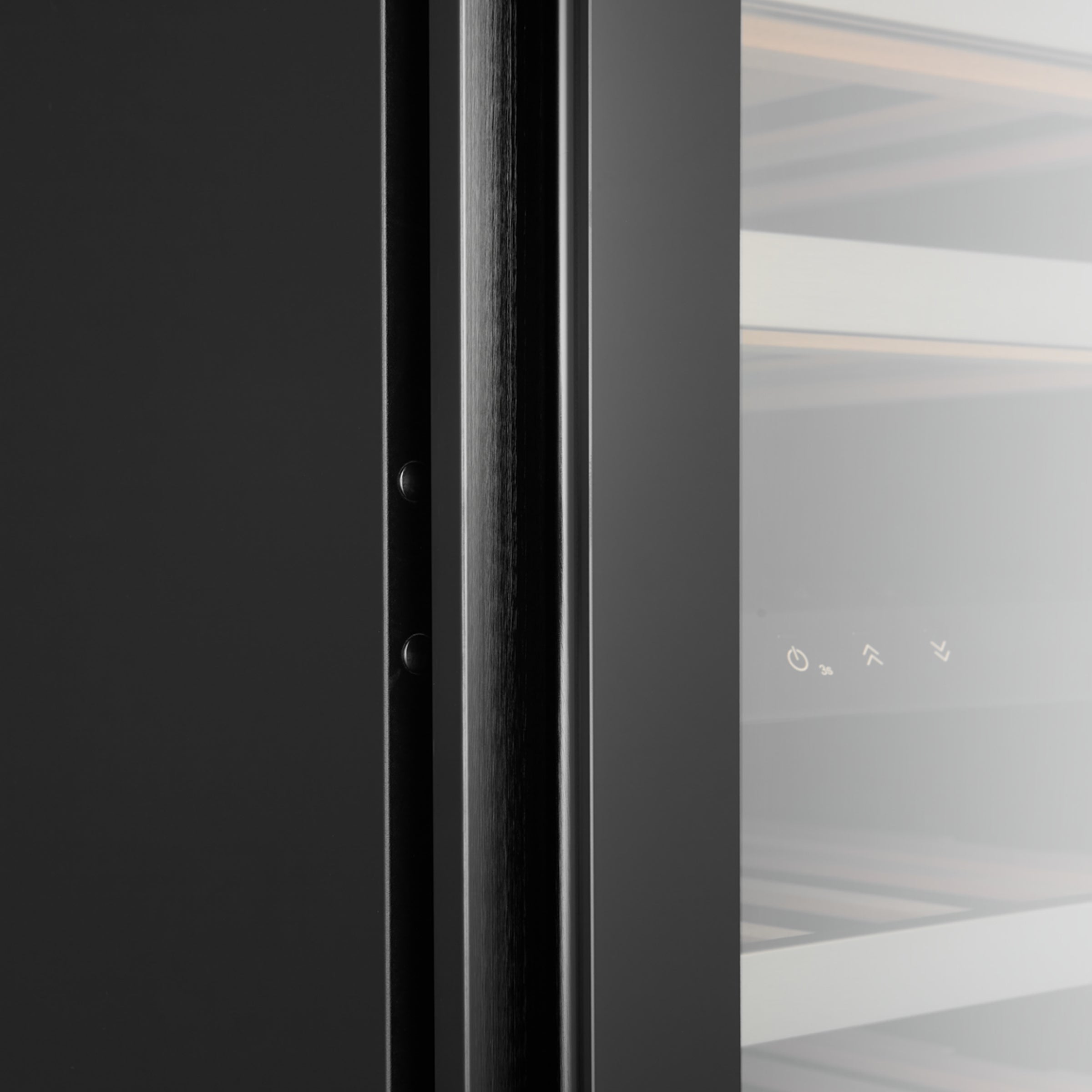

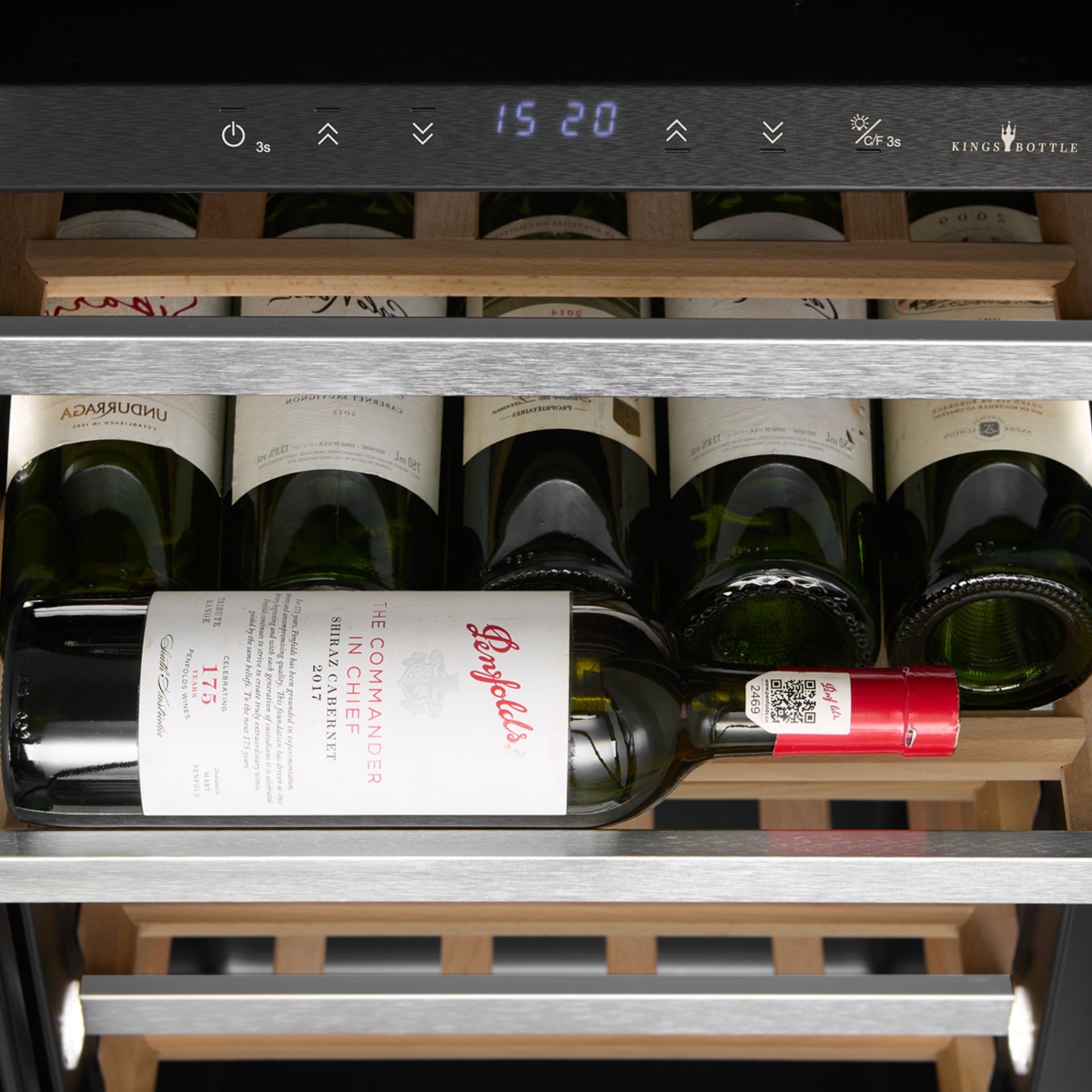

Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 0.43 kW.h/24h
Plug: Australian standard 3-pin
Installation Requirements

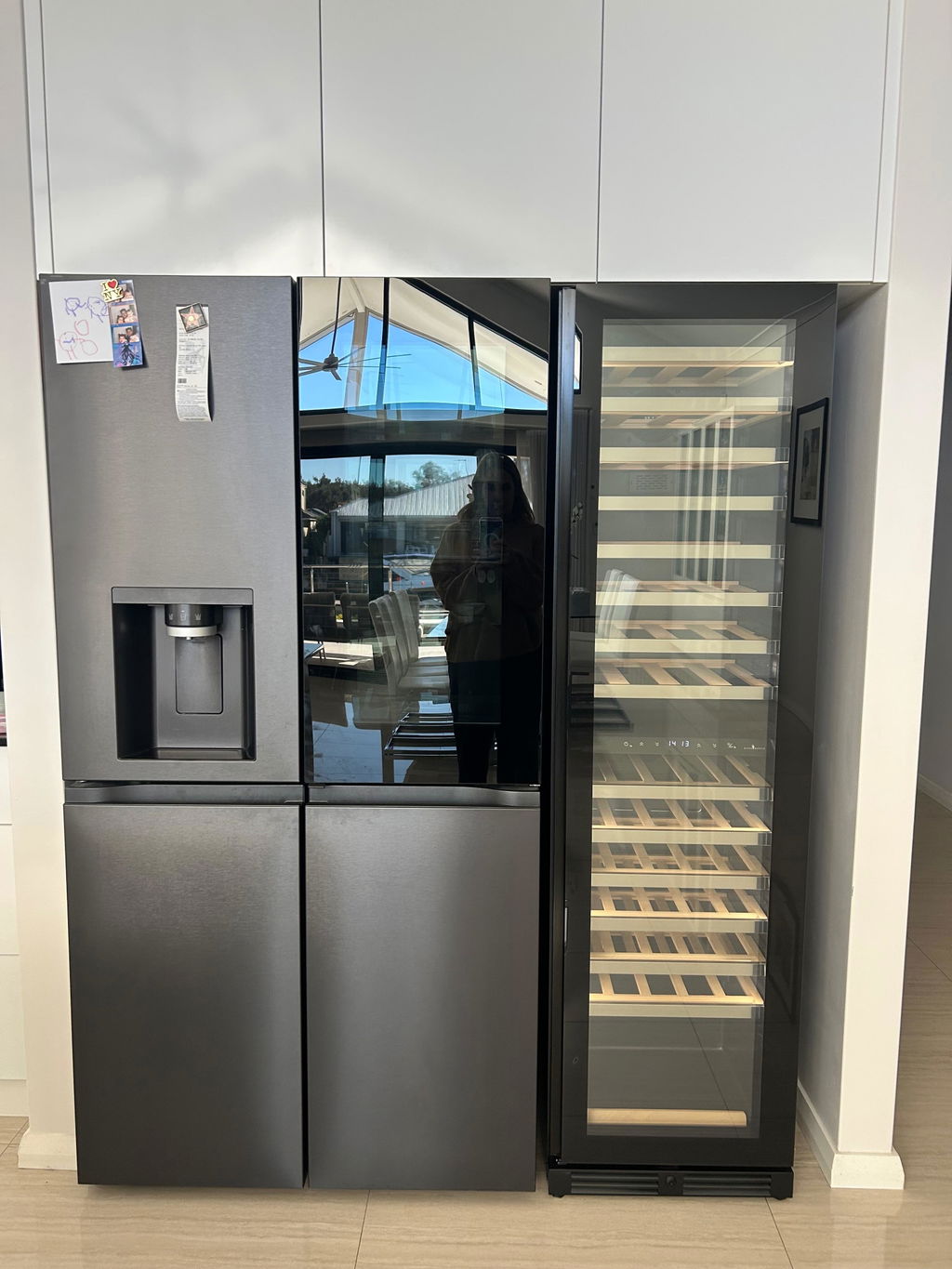

Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Dimensions & Diagrams

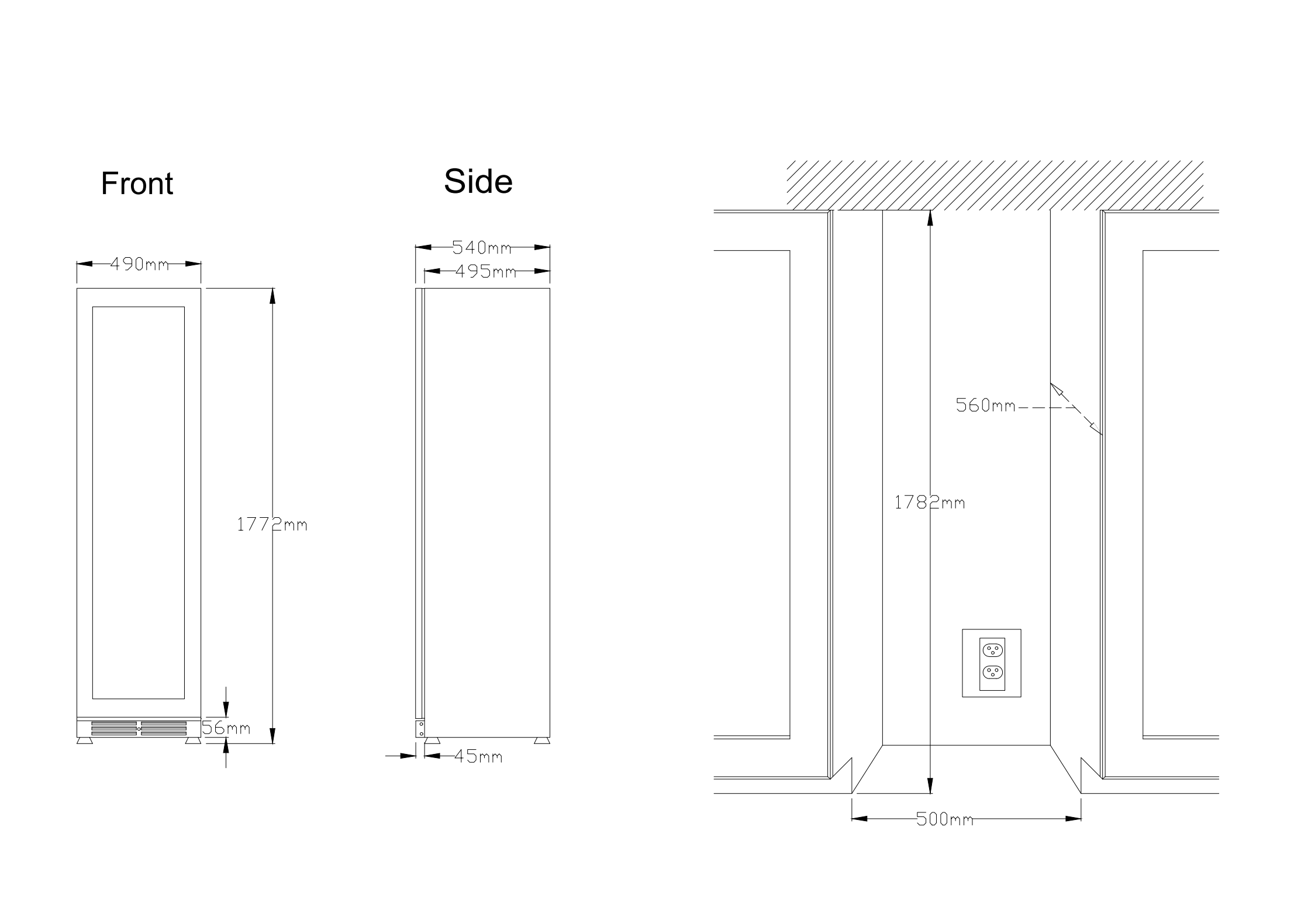

Installation Diagrams
