1800mm Upright Wine & Beverage Fridge Combo
SIZE: 1190 W x 700 D x 1800 H mm
Host epic gatherings with the KingsBottle 1800mm Height Upright Wine & Beverage Refrigerator Combo With Low-E Glass—a triple-zone masterpiece set of two units for Australia’s passionate hosts. Standing tall at 1800mm, this upright combo is a showstopper in large kitchens, dining rooms, or entertainment hubs from Perth to the Outback. Its triple-zone cooling lets you store your reds at 14°C, whites at 8°C, and beers at 2°C, with a capacity of 159 bottles (standard 750ml, up to 86mm diameter) and 630 cans (standard 330ml)—ideal for big parties or diverse drink preferences. The two units can stand alone or side by side, offering flexible placement options.
Powered by a quiet Embraco Inverter Compressor, this combo cuts energy use by 40%, keeping your Aussie power bill low. The Low-E glass door minimizes condensation for a crystal-clear view, while offering UV protection to preserve your drinks. The wine fridge features full-extension pull-out beechwood racks, compatible with large bottles up to 86mm in diameter, while the beverage fridge has adjustable chrome steel shelves for cans, ensuring easy access. Fan-circulated cooling maintains even temperatures across all zones, whether built-in or freestanding. This triple-zone combo offers unmatched versatility with a sleek black glass door—your drinks are always ready to impress.
Specifications
General Information
- Configuration: Set of two units (wine fridge and beverage fridge)
- Unit Dimensions (Each): 595W x 700D x 1800H mm (including 15mm stand feet)
- Total Dimensions (Side by Side): 1200W x 700D x 1800H mm

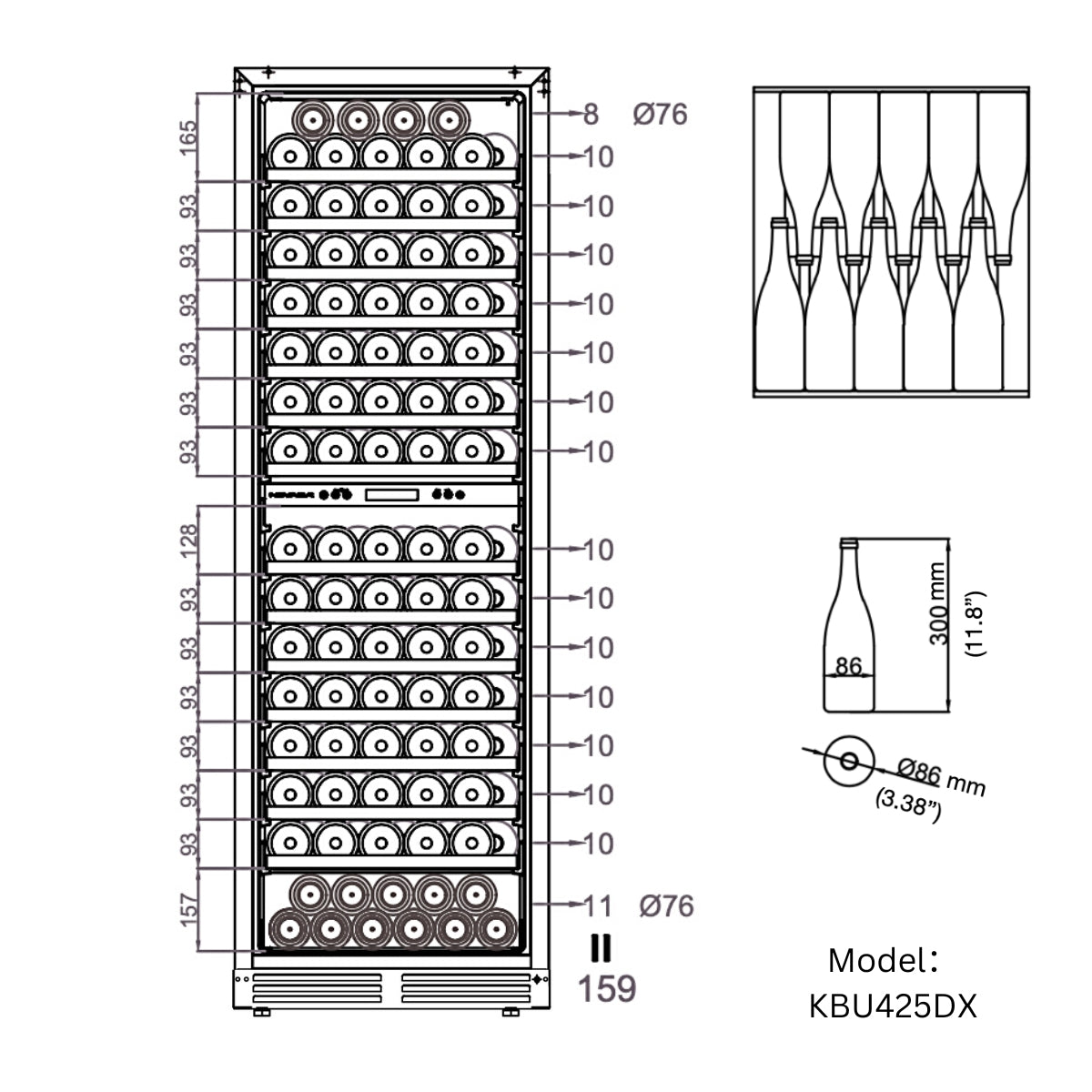

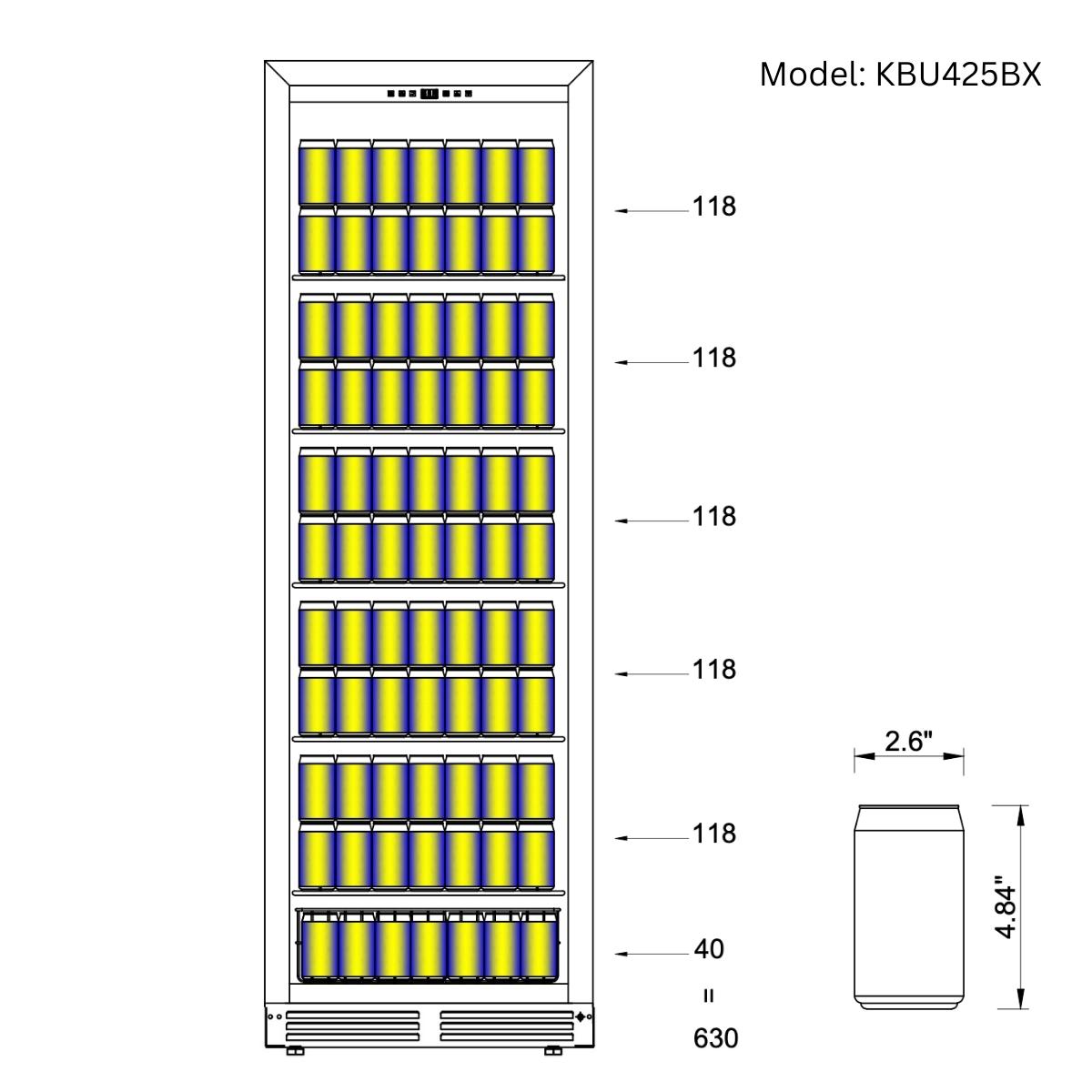

- Capacity: 159 bottles (standard 750ml, up to 86mm diameter), 630 cans (standard 330ml)
- Net Weight: 204 kg (combined)
- Door:Tempered safety glass doors, lockable for security
Key Features
Compressor: Embraco Inverter—quiet (40 dB), 40% energy saving
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature
Shelves:
Beer Side: Adjustable chromed metal shelves;
Wine Side: Full-extension beechwood shelves
Temperature Range:
Beer Side: 2-20°C
Wine Side: Upper Zone 2-12°C; Lower Zone 12-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption:
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KB145/KB265/KB425
Inverter Compressor
Powered by a top-notch Embraco Inverter Compressor;
Runs whisper-quiet and cuts energy use by 40%.
Patented Compressor Sink
Boosts airflow around the compressor;
Delivers ace cooling, less shake, and quieter operation.
Low-E Glass
Saves energy and stops condensation on the door;
Acts like a hidden shield to keep the cold in.
Note: Low-E Glass has a smart coating that cuts heat transfer and condensation, boosting energy savings and cooling power.
Fan Circulated Air-Cooling System
Keeps the temp steady across the cabinet;
Manages humidity to look after what’s inside.
Activated Carbon Filter
Cleans up the air by nabbing impurities;
Keeps the cabinet smelling fresh and clean.
LED Display Digital Touchpad Control
Super easy controls to get the hang of;
Displays settings clearly and bang-on every time.
Beech Wooden Shelf
Full-extension pull-out shelves made from tough, wine-friendly beech;
Smartly spaced to fit regular and bigger bottles up to 86mm in diameter.
Magnetic Switch
Comes with a 2-minute door-open alarm.
Hidden Door Hinge
Crafted with laminated steel and seamless moulding;
Fully built-in for a slick, tidy finish.
Seamless Stainless Steel Door Frame
Looks the part with a sleek, slimline design.
45mm Thick C-Pantane Foam
Thicker foam ramps up cooling and keeps power costs down.
Dimensions & Diagrams

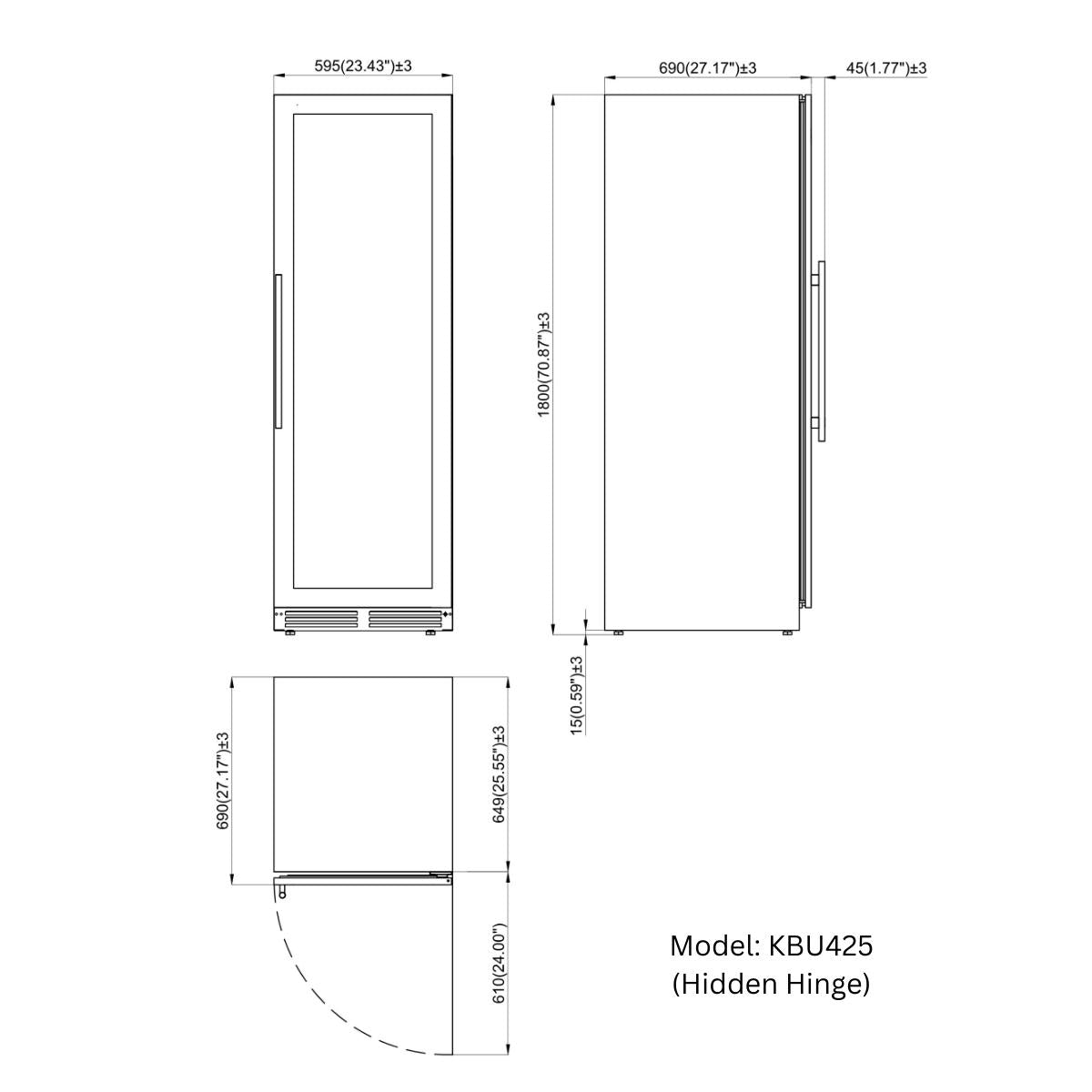

Technical Dimensions

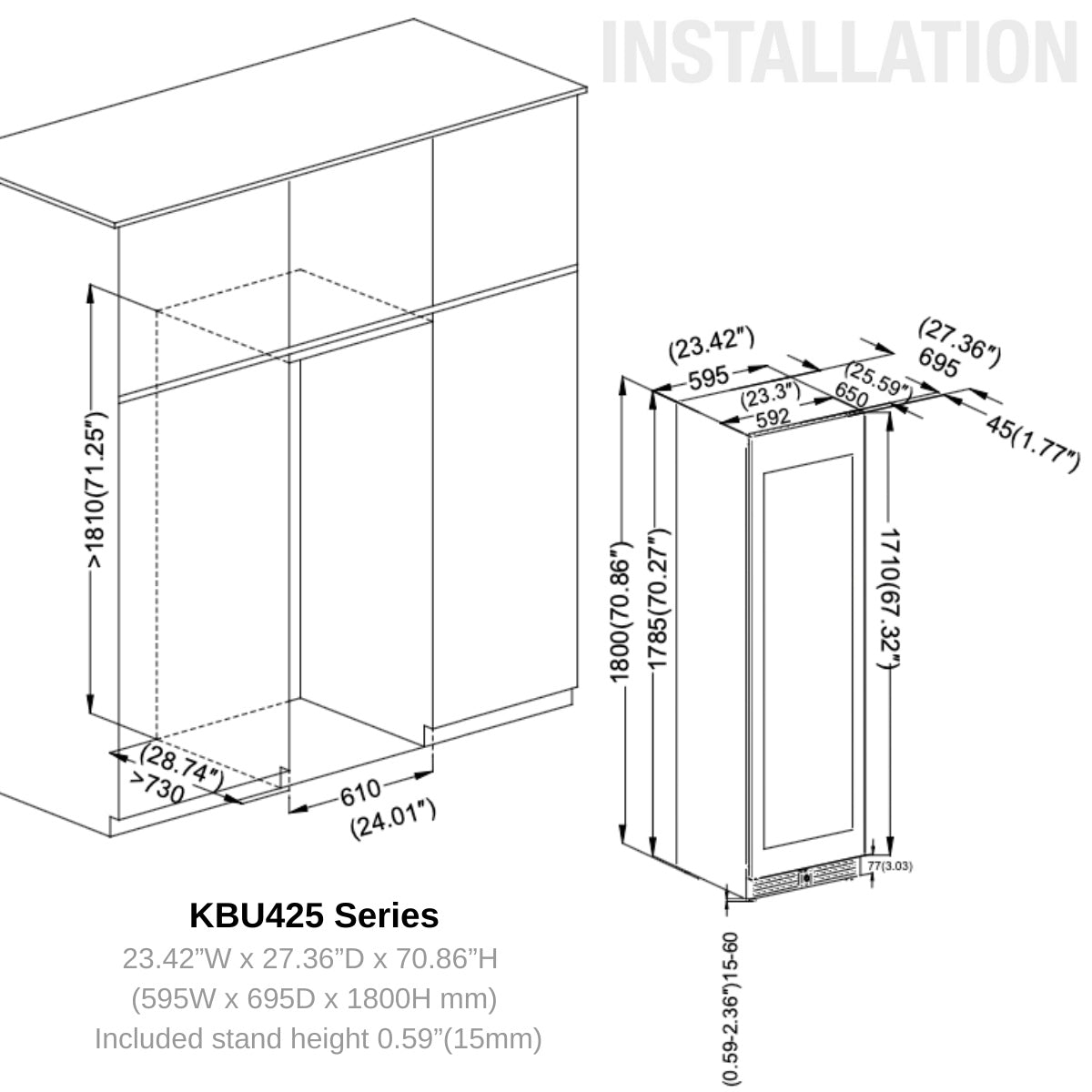

Installation Diagrams
User Manual | KB145BW3 / KB265BW3 / KB425BW3
This manual covers a combo set of two units: a Beverage Fridge and a Dual Zone Wine fridge.
- User Manual For Beverage KB45BX | KB265BX | KB425BX
- User Manual For Dual Zone Wine Fridges KB145DX | KB265DX | KB425DX
NOTE:
