Wine & Beverage Dual Storage
Separates wine and beverages into dedicated zones, ensuring optimal conditions for both.
Key Features
Triple-Zone Storage Flexibility
Organize different beverages or wines across three independently controlled temperature zones.
Quiet & Energy Efficient Operation
Inverter compressor delivers quieter performance while reducing energy consumption.
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Adjustable Shelving System
Flexible shelf configuration adapts to different bottle or can sizes.
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Built-In Ready Design
Designed for seamless installation with cabinetry for a clean integrated look.

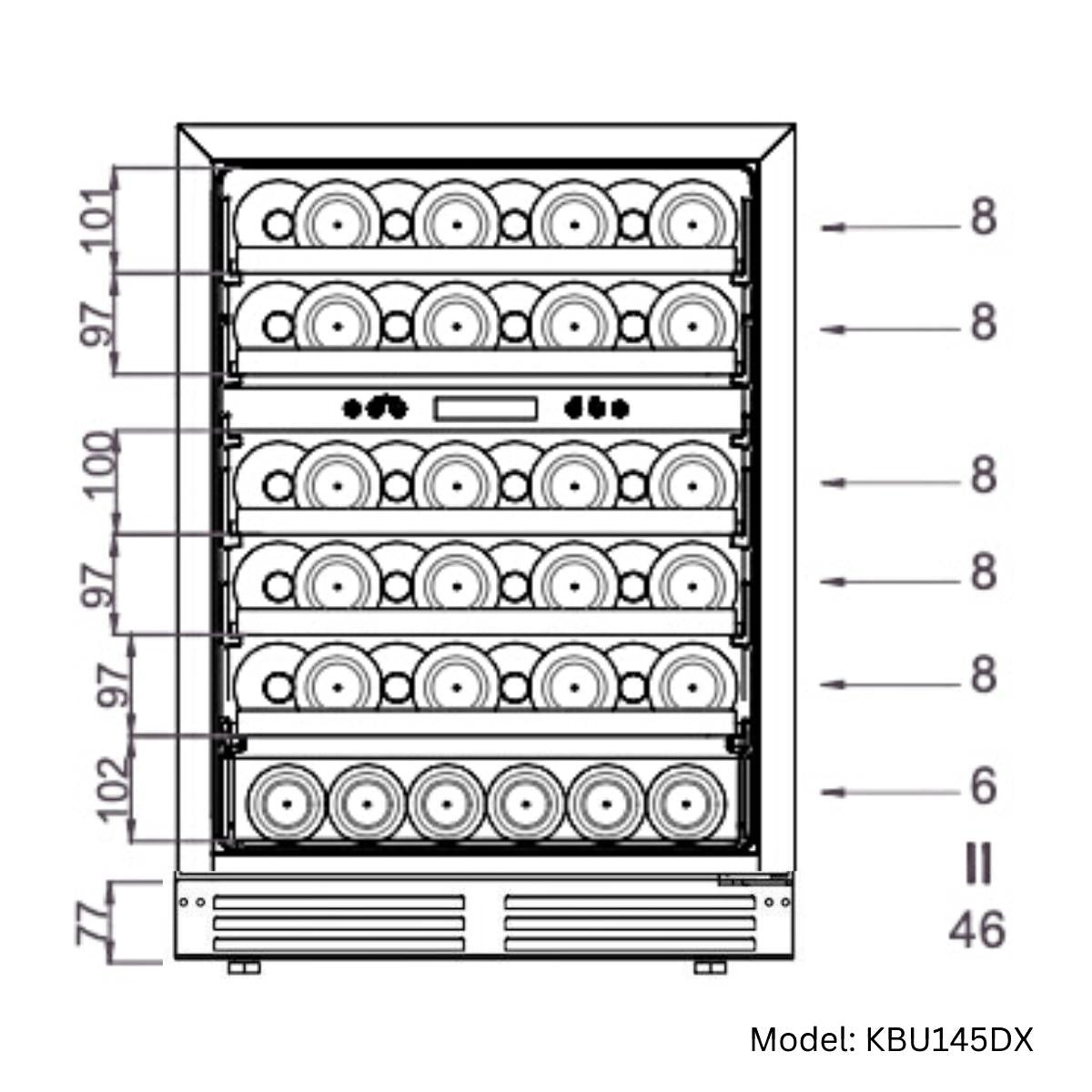

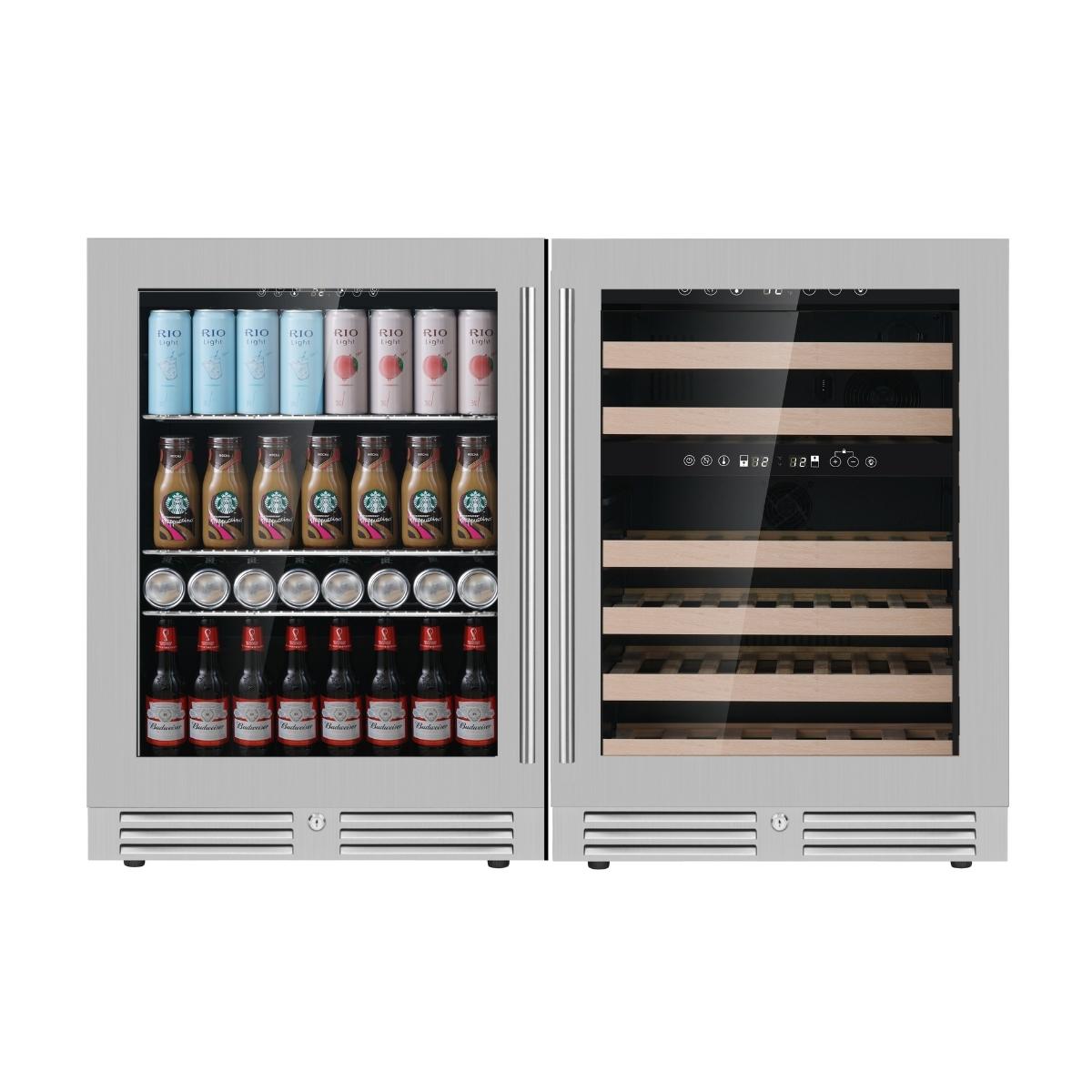

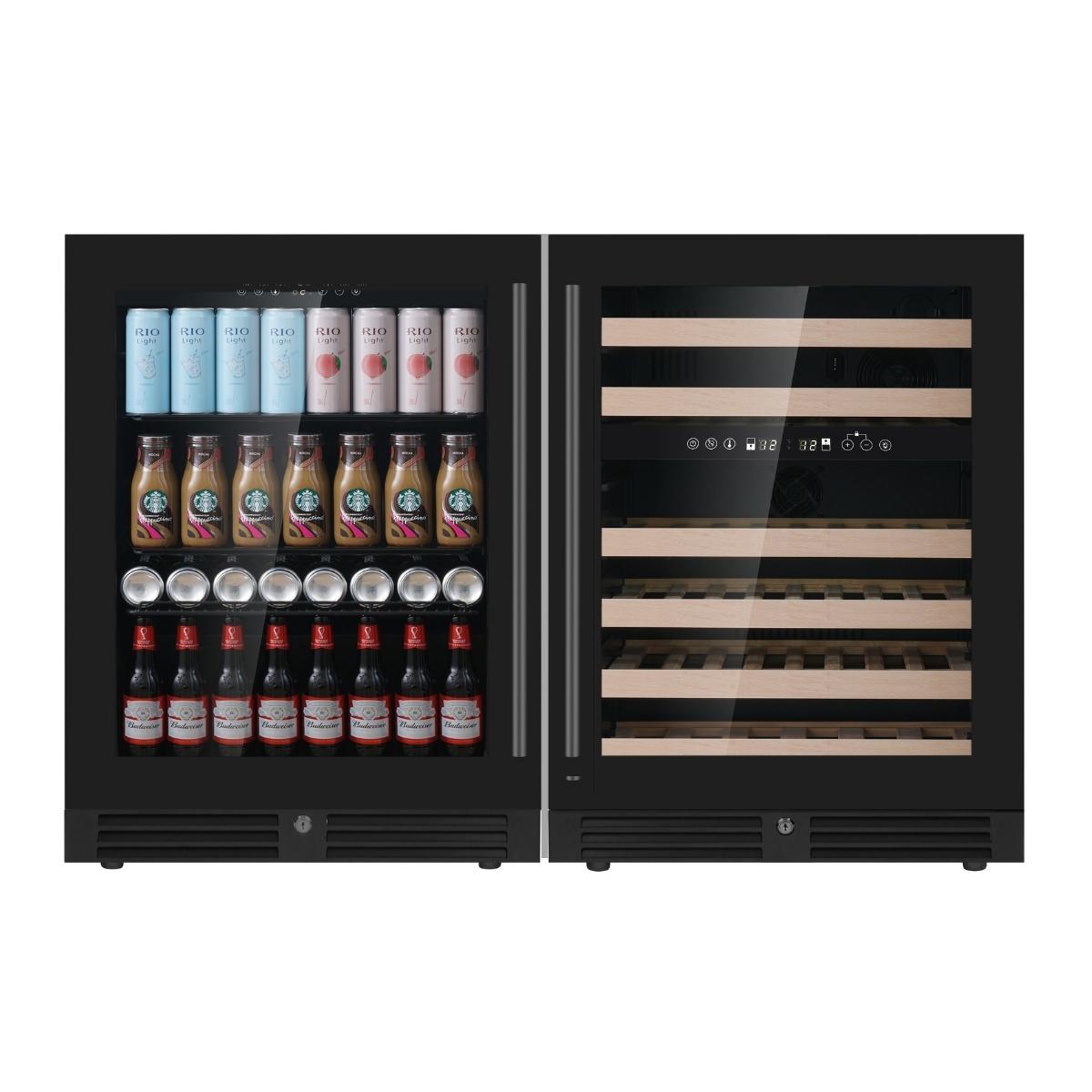

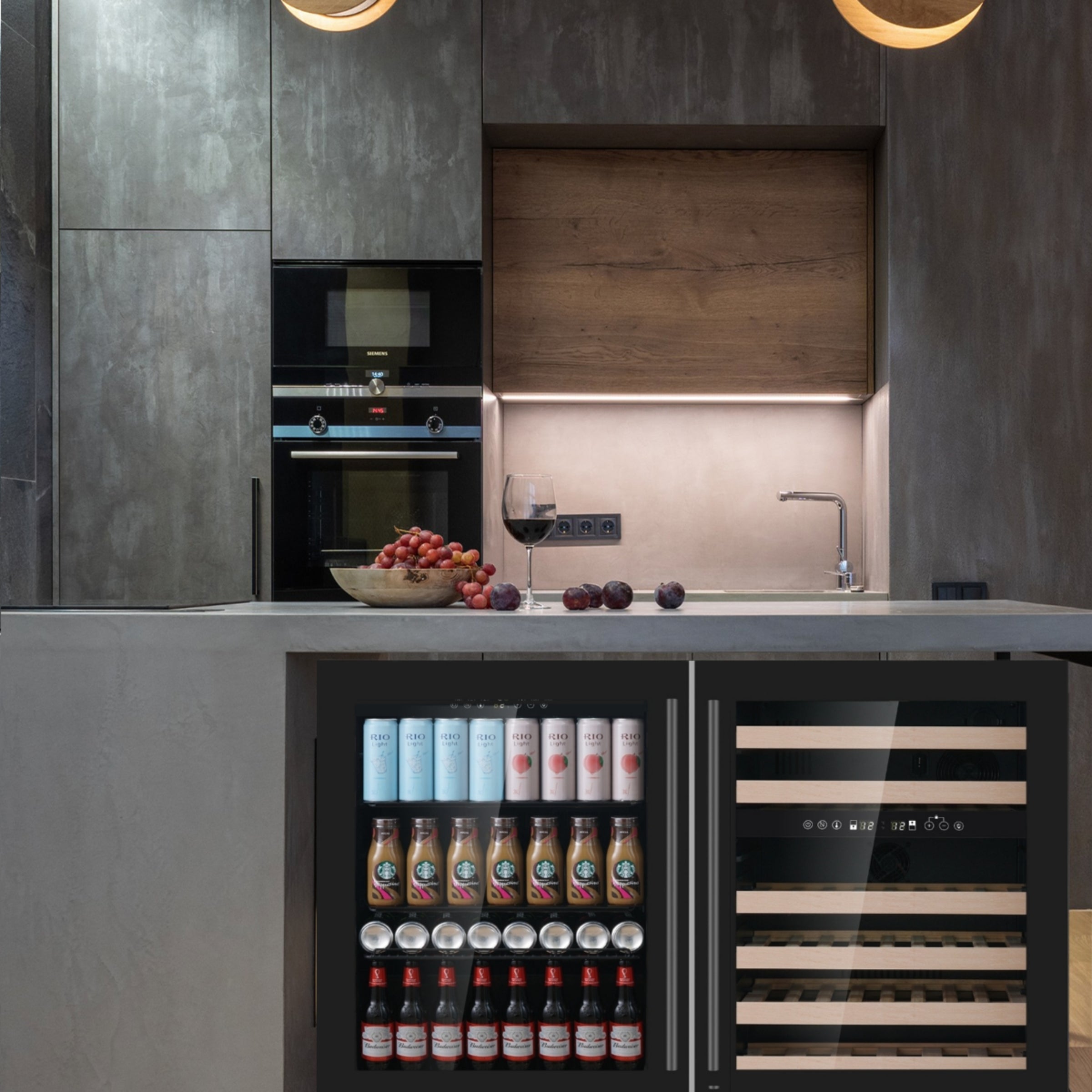

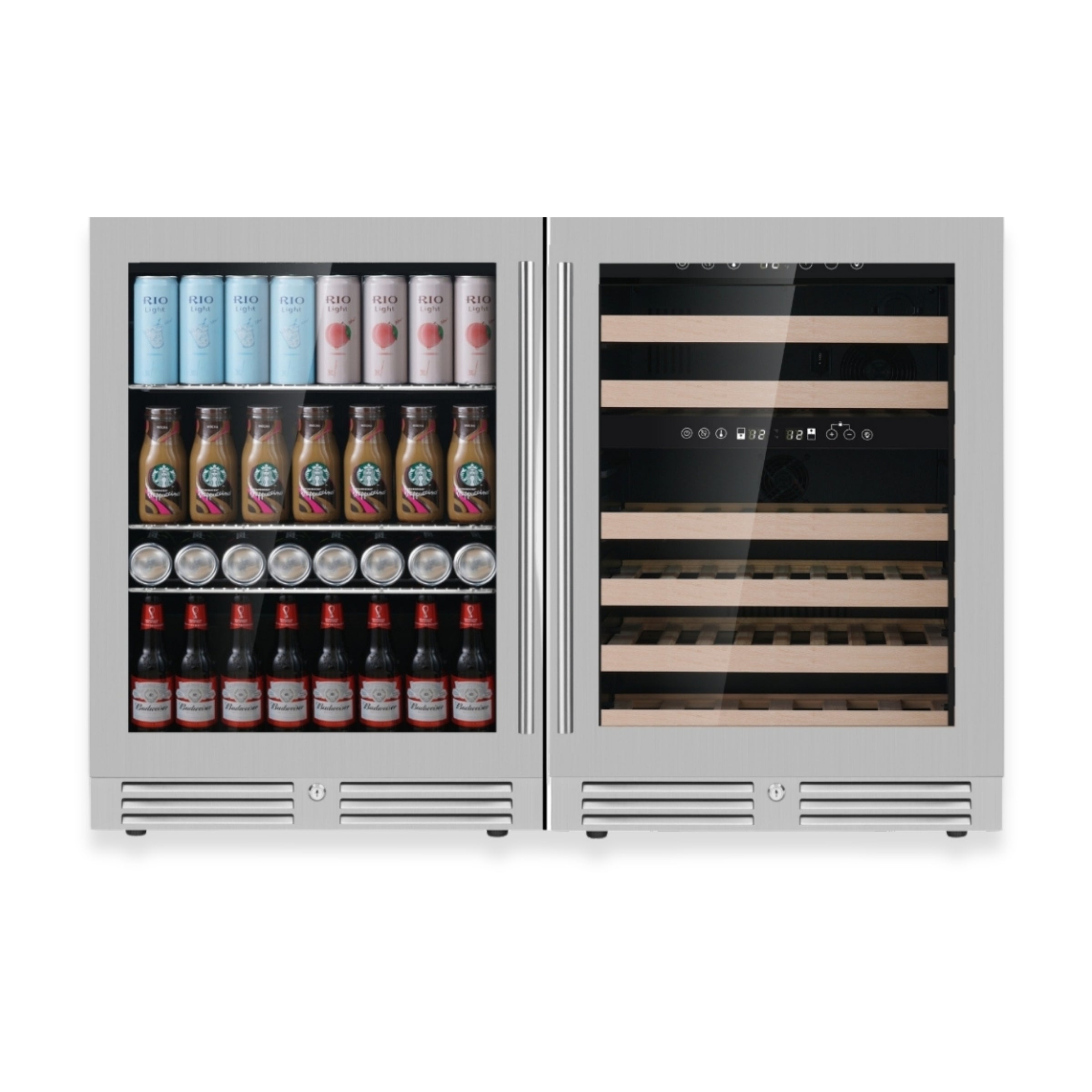

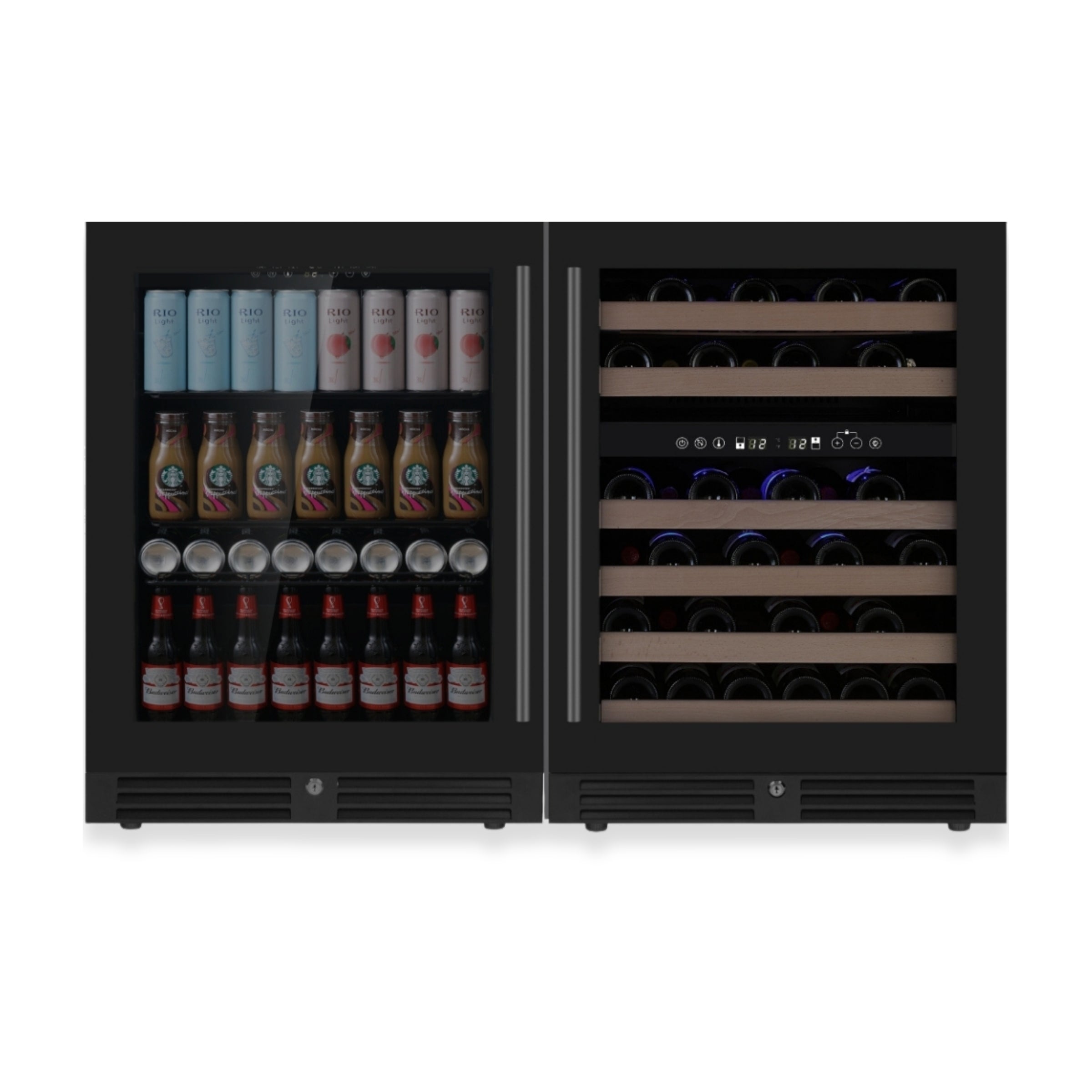

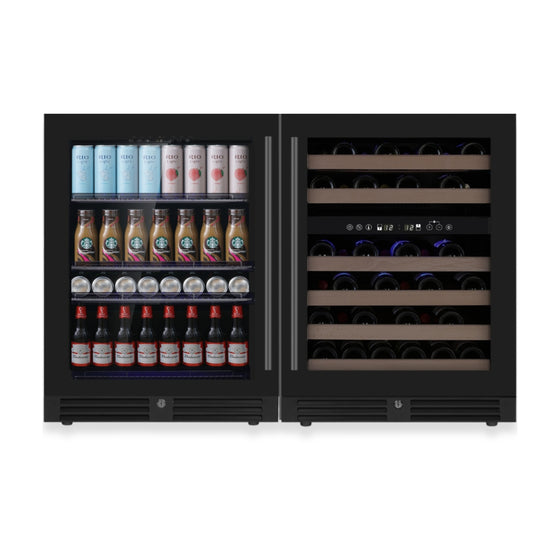

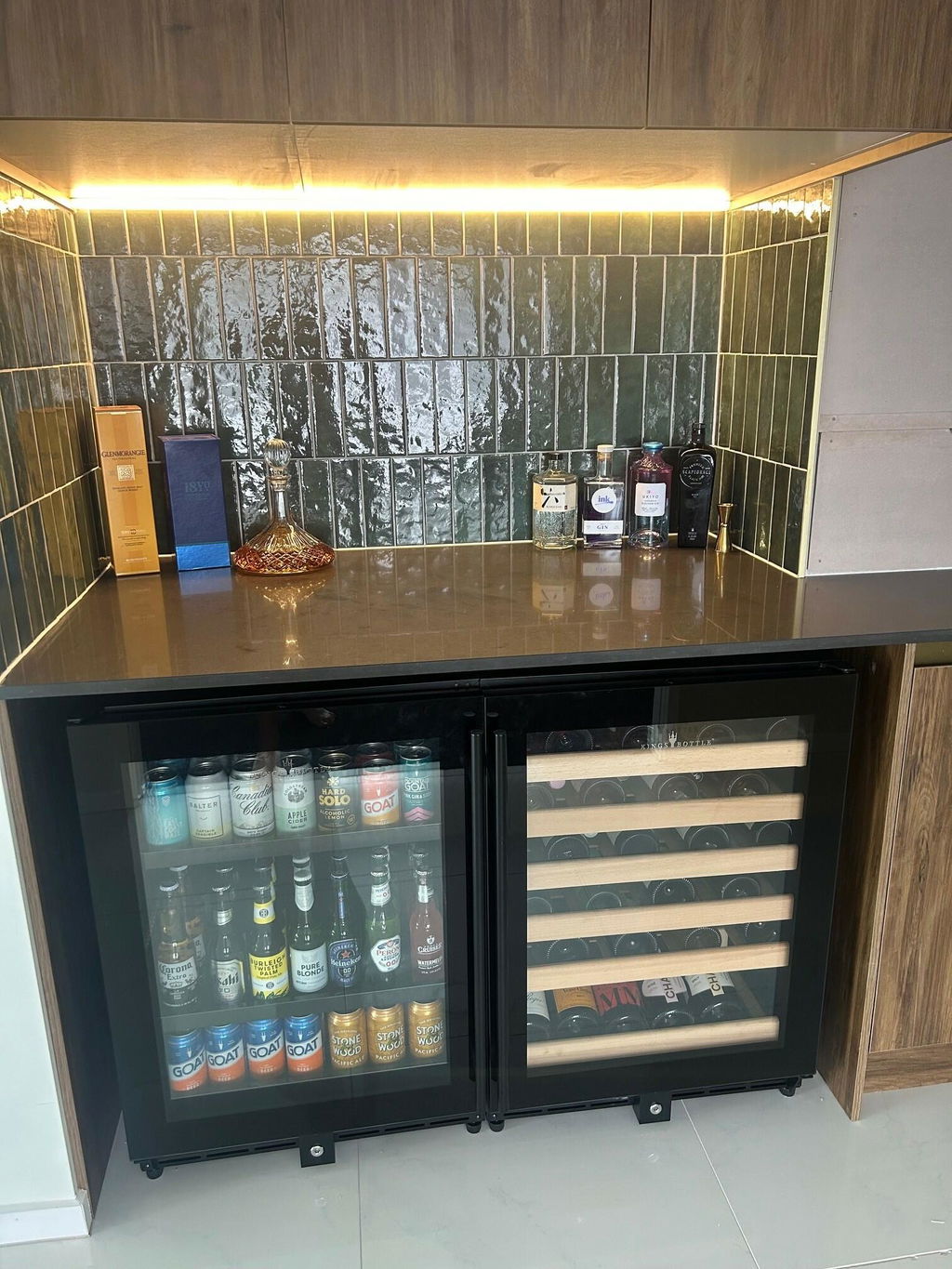

Take your hosting to the next level with the KingsBottle Under Bench Wine Fridge and Bar Refrigerator Combo—a triple-zone masterpiece set of two units for Australia’s avid entertainers. Designed to fit under your bench in kitchens or entertainment hubs from Brisbane to the Bush, this front-venting combo caters to diverse drink preferences. Its triple-zone cooling lets you store your reds at 14°C, whites at 8°C, and beers at 2°C, with a capacity of 46 bottles (standard 750ml, up to 86mm diameter) and 161 cans (standard 330ml)—perfect for themed parties or gatherings with mates. The two units can stand alone or side by side, offering flexible placement options.
Powered by a quiet Embraco Inverter Compressor, this combo reduces energy use by 40%, keeping your Aussie power bill in check. The Low-E glass door minimizes condensation for a crystal-clear view, while offering UV protection to preserve drink quality. The wine fridge features full-extension pull-out beechwood racks, compatible with large bottles up to 86mm in diameter, while the bar fridge has adjustable chrome steel shelves for cans, ensuring easy organization. Fan-circulated cooling maintains even temperatures across all zones, whether built-in or freestanding. This triple-zone combo offers unmatched versatility with a sleek stainless steel finish—your drinks are always ready to impress.
| Bottle Capacity | 46 Bottles |
|---|---|

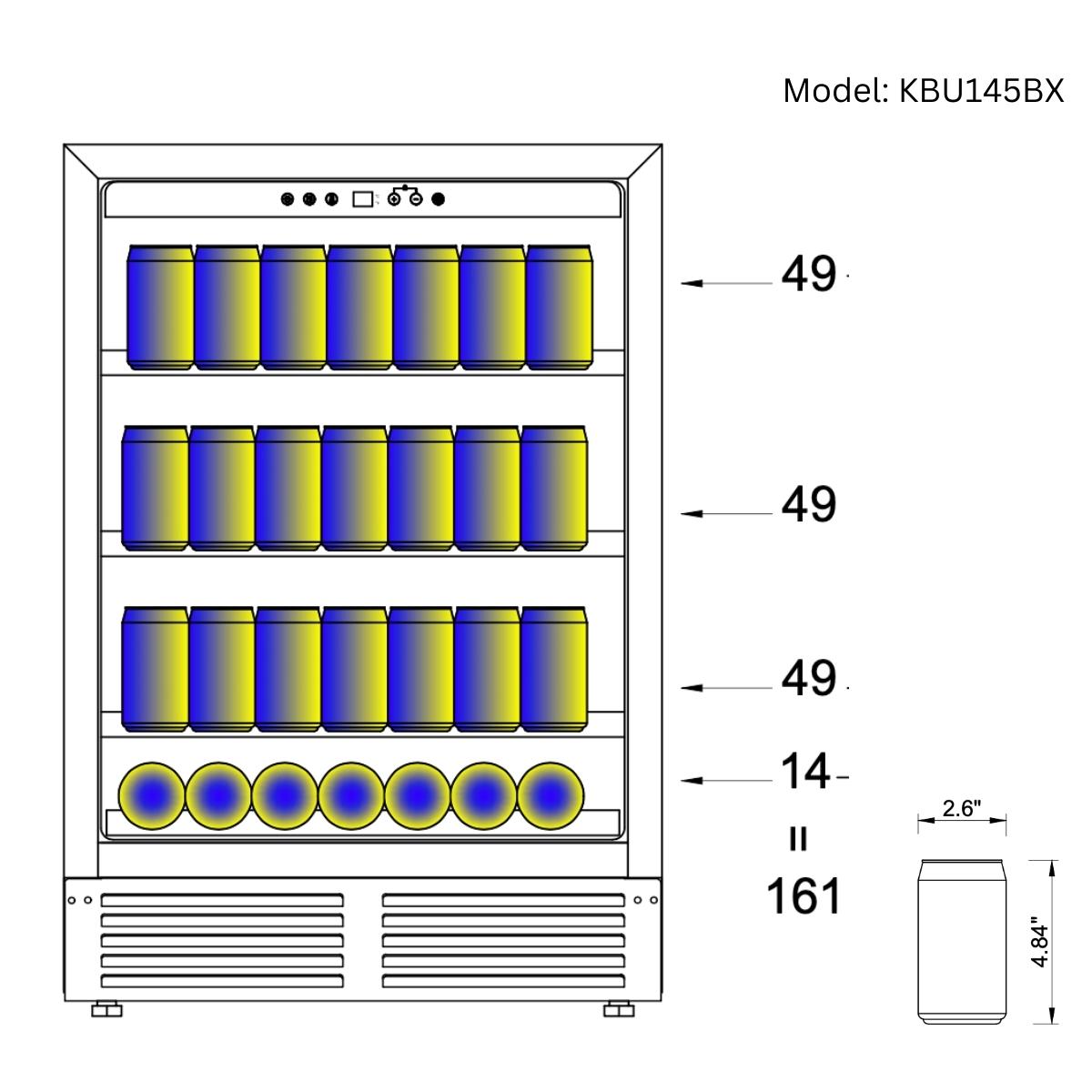

| Can Capacity | 161 Cans |
| Temperature Zones | Triple Zone |
| Temperature Range | 2°C to 20°C |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Climate Class | SN / N / ST (10°C to 38°C) |
| Door Type | Low-E Glass |
|---|
| Volume | 145 Litres Total, 145 Litres Each |
|---|---|
| Noise Level | 42 dB |
| Weight | 104 kg |
| Energy Consumption | 362 kWh/Year |
| Electrical Requirements | 220-240V / 50Hz |
| Defrost Type | Automatic Defrost |
| Dimensions (W x D x H) | 1190W x 578D x 820H mm |
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 12mm filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Set of two units, use side by side or separately. |
Technical documentation, drawings, and product support files.
| Spec Sheet | |
| Wine Unit User Manual | |
| Beverage Unit User Manual | |

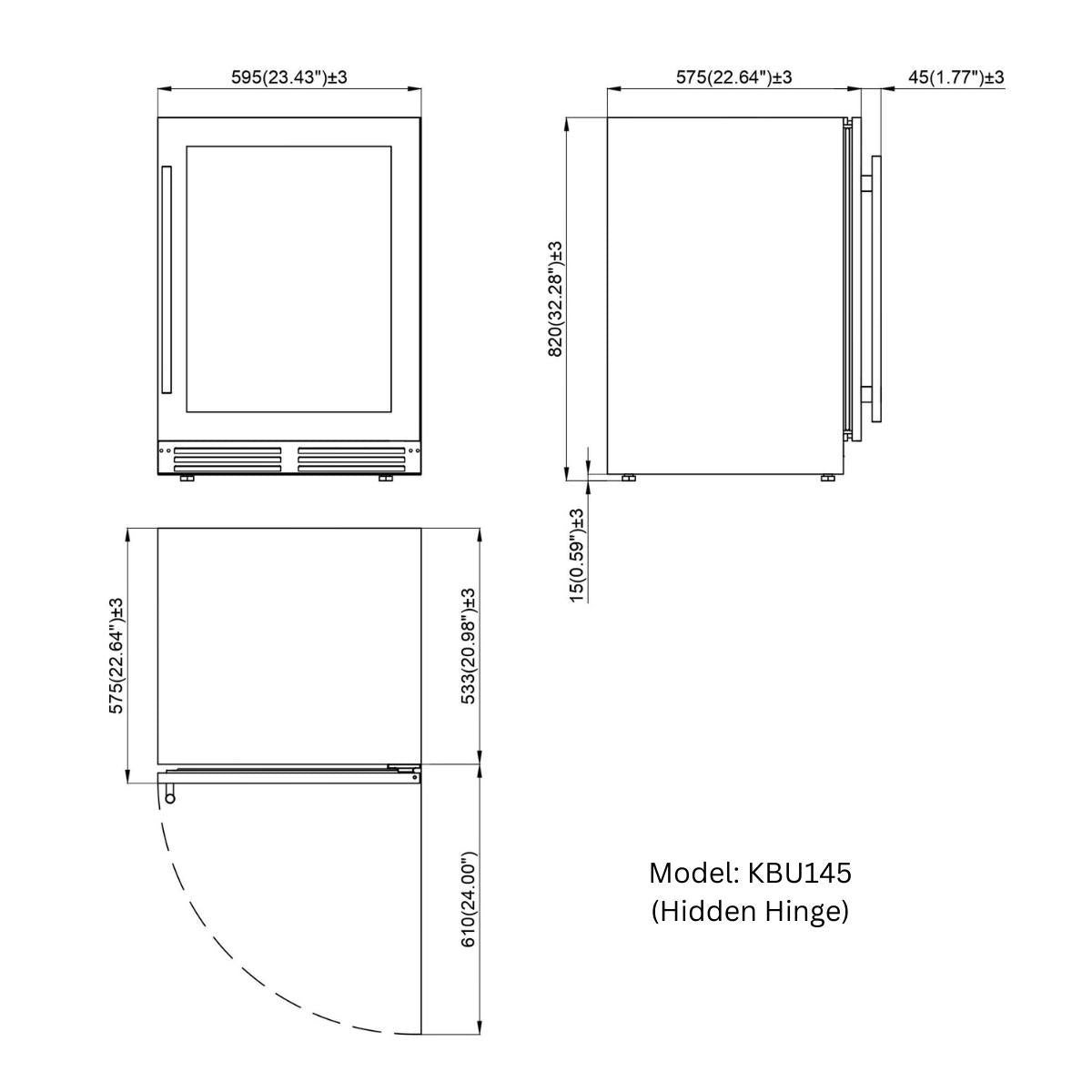

| Dimension Drawing |
