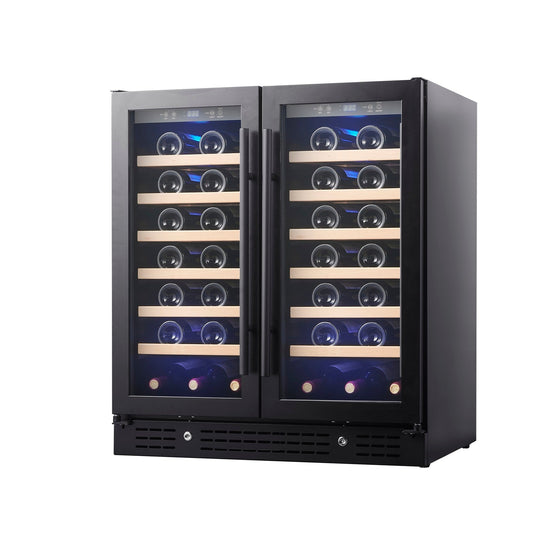

750mm Wide Under Bench Dual Zone Wine Fridge
SIZE: 750W x 570D x 860H mm
Compact, functional, and built for a seamless fit, this 750mm-wide dual zone under bench wine fridge is the smart solution for modern Australian homes.

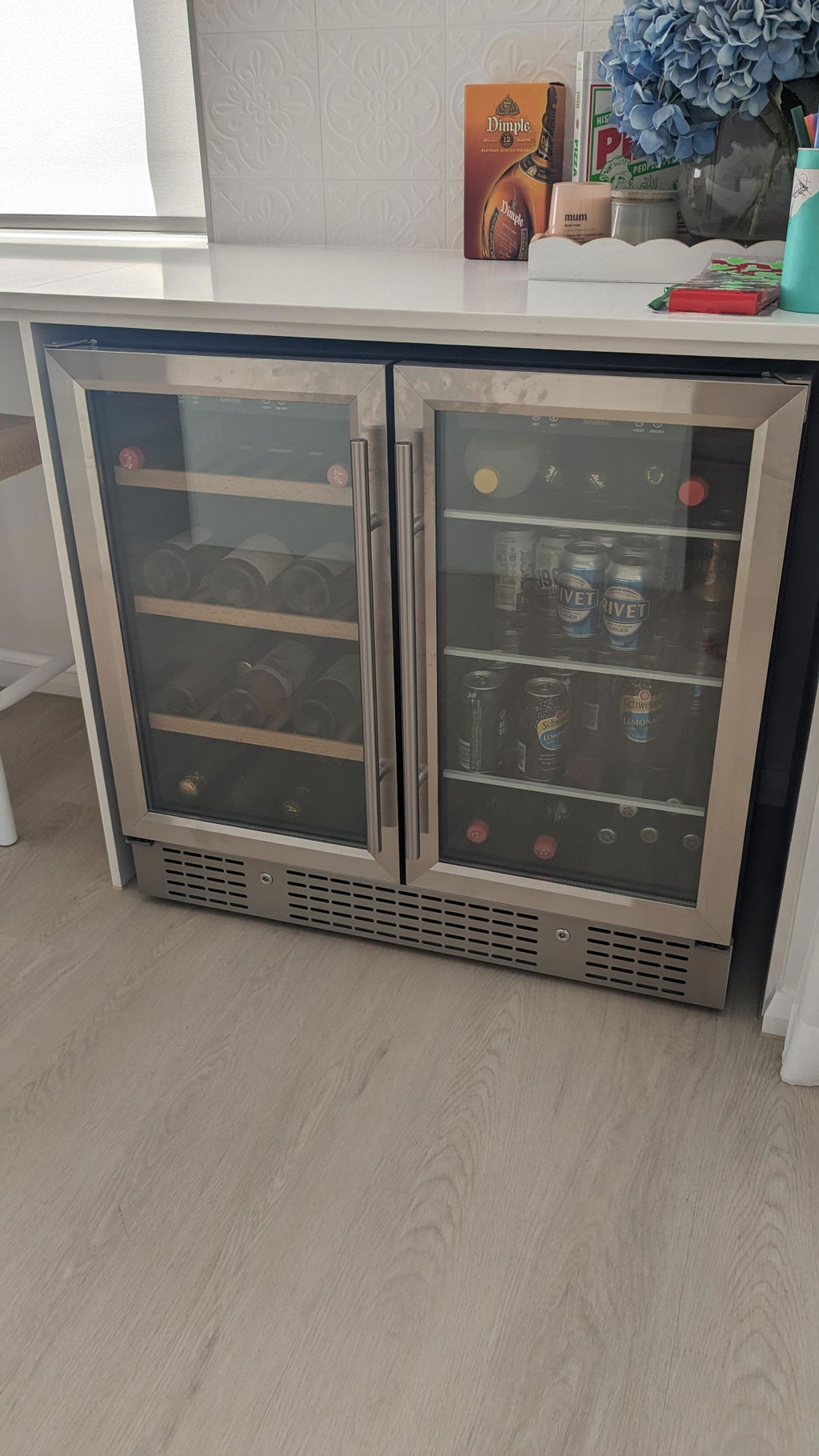

Designed to slide effortlessly beneath kitchen counters, island benches, or bar tops, it brings reliable wine storage into the heart of your living space—without compromising on style or performance.
With dual temperature zones, you can store both reds and whites at their ideal serving conditions—keep a Chardonnay chilled at 7°C while your Shiraz matures at 17°C. The layout holds up to 66 standard 750ml bottles, making it a great match for casual drinkers and collectors alike.
The Low-E glass door helps reduce condensation and shields your collection from harmful UV rays, while the natural beechwood shelves offer sturdy support for every bottle. A quiet, energy-efficient compressor and fan-assisted cooling ensure consistent performance across both zones.
Finished with a sleek black glass door and black frame, this unit offers a minimalist look that complements a wide range of interior styles. Whether built-in or freestanding, it’s a reliable and refined way to keep your wine ready to enjoy—every day.
Specifications
General Information
- Dimensions: 750W x 570D x 860H mm (616 mm depth including handle)
- Capacity: 66 bottles (standard 750ml)
- Net Weight: 60 kg
- Door: Reversible tempered safety glass doors
Key Features
Compressor: Embraco
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature
Shelves:
Left Side: Beechwood shelves;
Right Side: Beechwood shelves
Temperature Range:
Left Side: 2-20°C
Right Side: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 570 kWh/Year (ISO23953-2)
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KBU165BW KBU190BW
Quiet Compressor
Runs on a top-shelf compressor that’s whisper-quiet and vibration-free, keeping your drinks chilled without a peep.
Low-E Glass
Saves power and stops condensation on the door;
Acts like a sneaky insulating wall to keep the cold in.
Note: Low-E Glass has a smart coating that cuts heat transfer and condensation, ramping up energy savings and cooling efficiency.
Fan Circulated Air-Cooling System
Keeps the temp consistent throughout the cabinet;
Balances humidity to protect what’s inside.
Activated Carbon Filter
Traps air impurities like a champ;
Keeps the cabinet air crisp and odour-free.
LED Display Digital Touchpad Control
Dead-simple controls to use;
Shows clear, bang-on settings every time.
45mm Thick C-Pantane Foam
Chunky foam boosts cooling and keeps energy costs down.
Dimensions & Diagrams

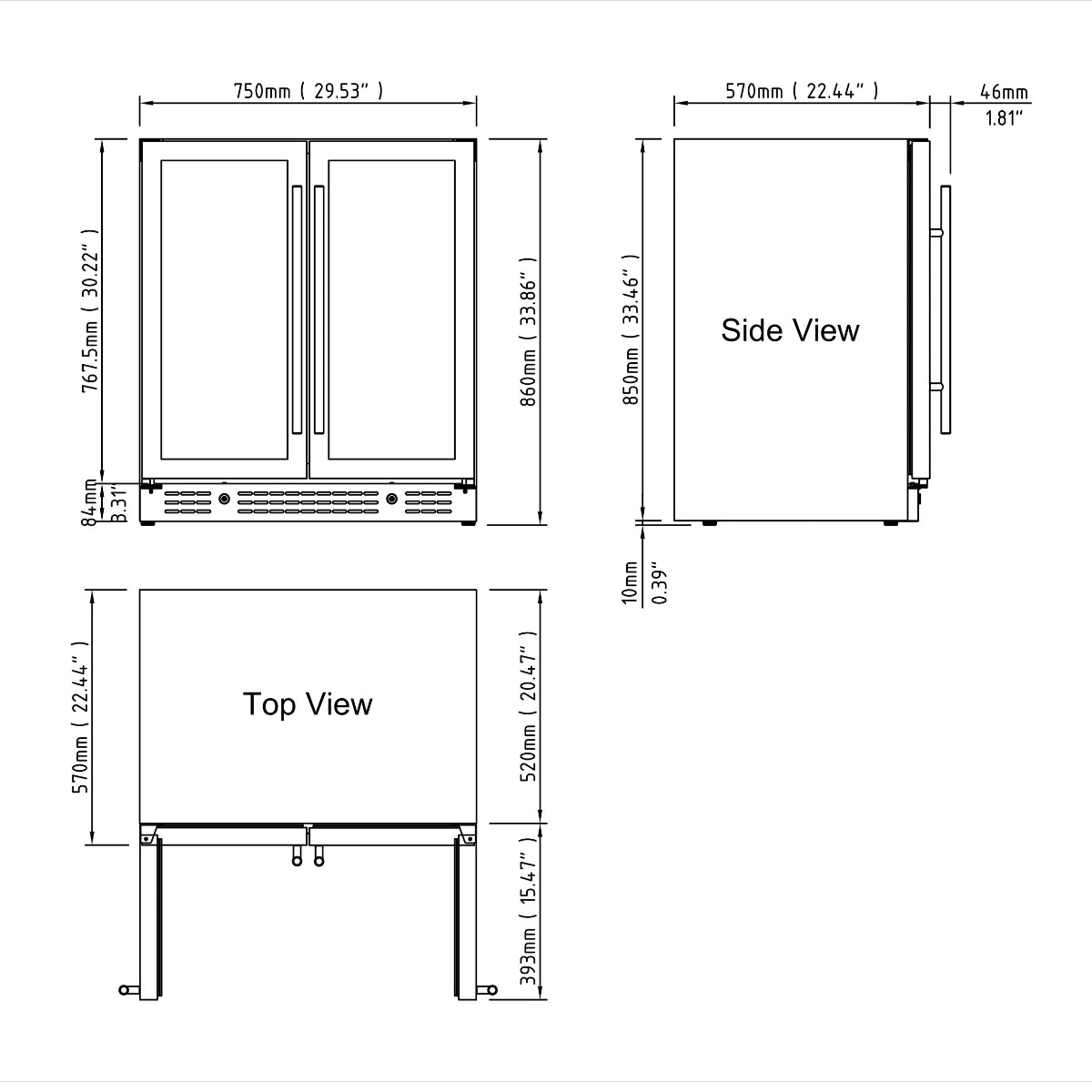

Technical Dimensions

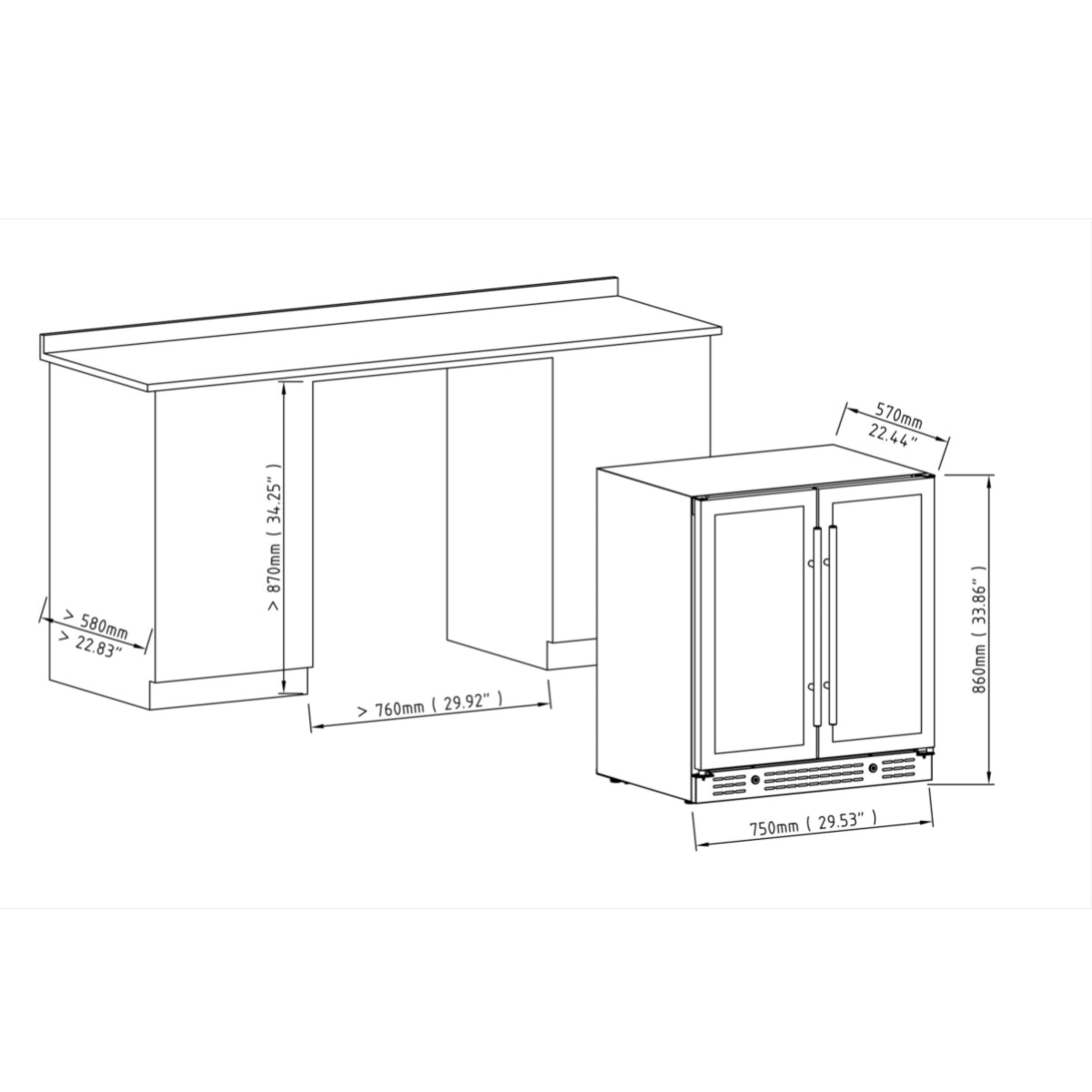

Installation Diagrams
User Manual For KB165 | KB190
