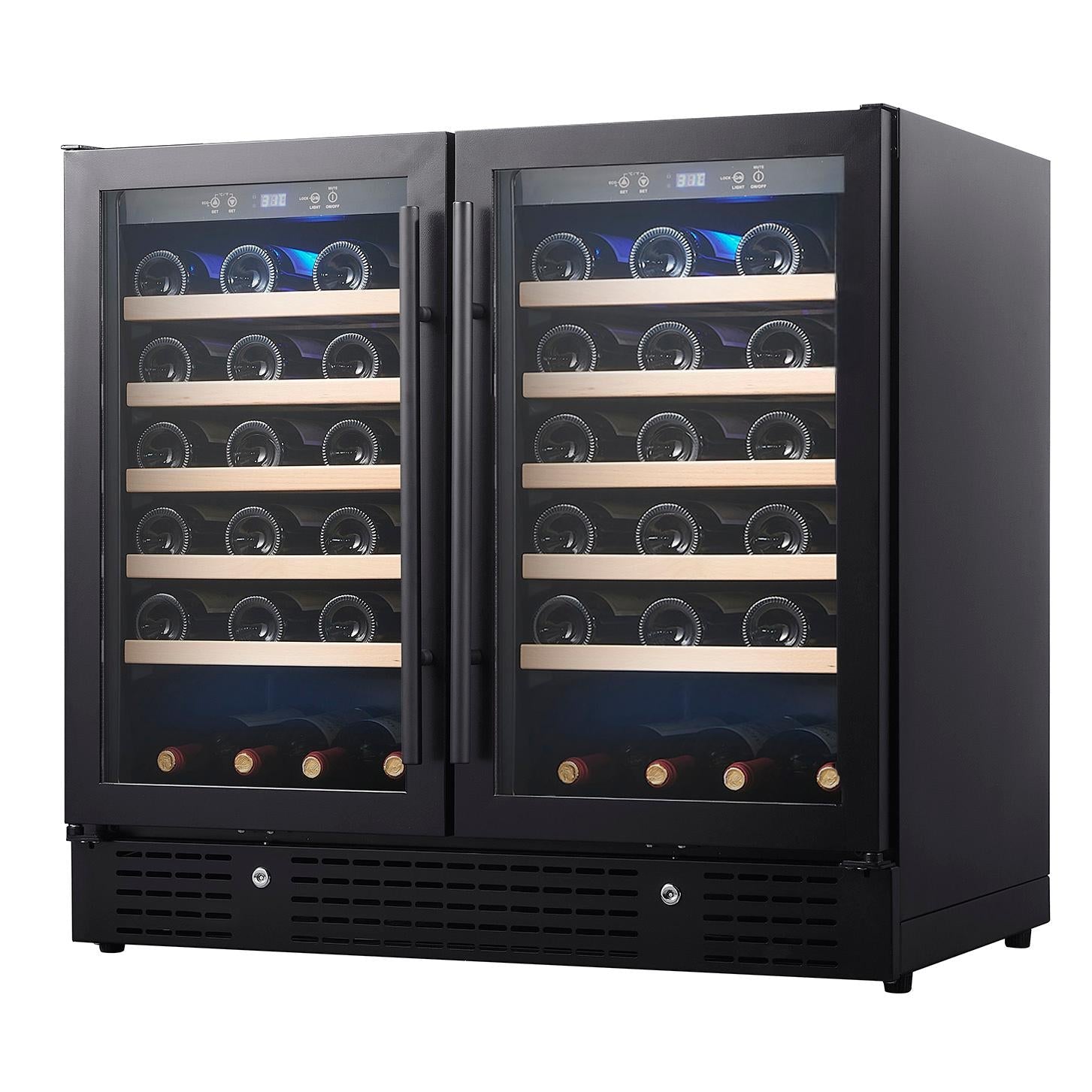

900mm-wide Under Bench Dual Zone Wine Fridge
SIZE: 900W x 595D x 820H mm
NOTE: Independently control two temperature zones for red and white wines (2–20°C)
Impress your guests with the KingsBottle 900mm Wide Under Bench Low-E Glass Door Dual Zone Wine Fridge—a sleek and functional addition to contemporary Australian living spaces. Designed to fit seamlessly under your bench, this front-venting unit is ideal for kitchens, home bars, or dining areas across the country, from bustling city apartments to relaxed coastal retreats.
With two dedicated temperature zones, this wine fridge lets you store your reds and whites at their ideal temperatures—set your Hunter Valley Semillon to a crisp 8°C while keeping your Barossa Shiraz at a perfect 16°C. It holds up to 68 bottles (standard 750ml), making it perfect for entertaining, casual gatherings, or a quiet night in with mates.
A quiet-running compressor ensures minimal noise—ideal for open-plan living—while energy-efficient performance helps lower power consumption. The Low-E glass door reduces condensation and protects your wines from harmful UV rays. Quality beechwood shelves cradle each bottle, and fan-circulated cooling provides even temperature distribution across both zones. Whether built-in or freestanding, this dual zone wine fridge delivers high performance and contemporary elegance with its striking black glass door and matching black frame—your wine is always ready to pour in style.
Specifications
General Information
- Dimensions: 900W x 595D x 850H mm (641D mm including handle)

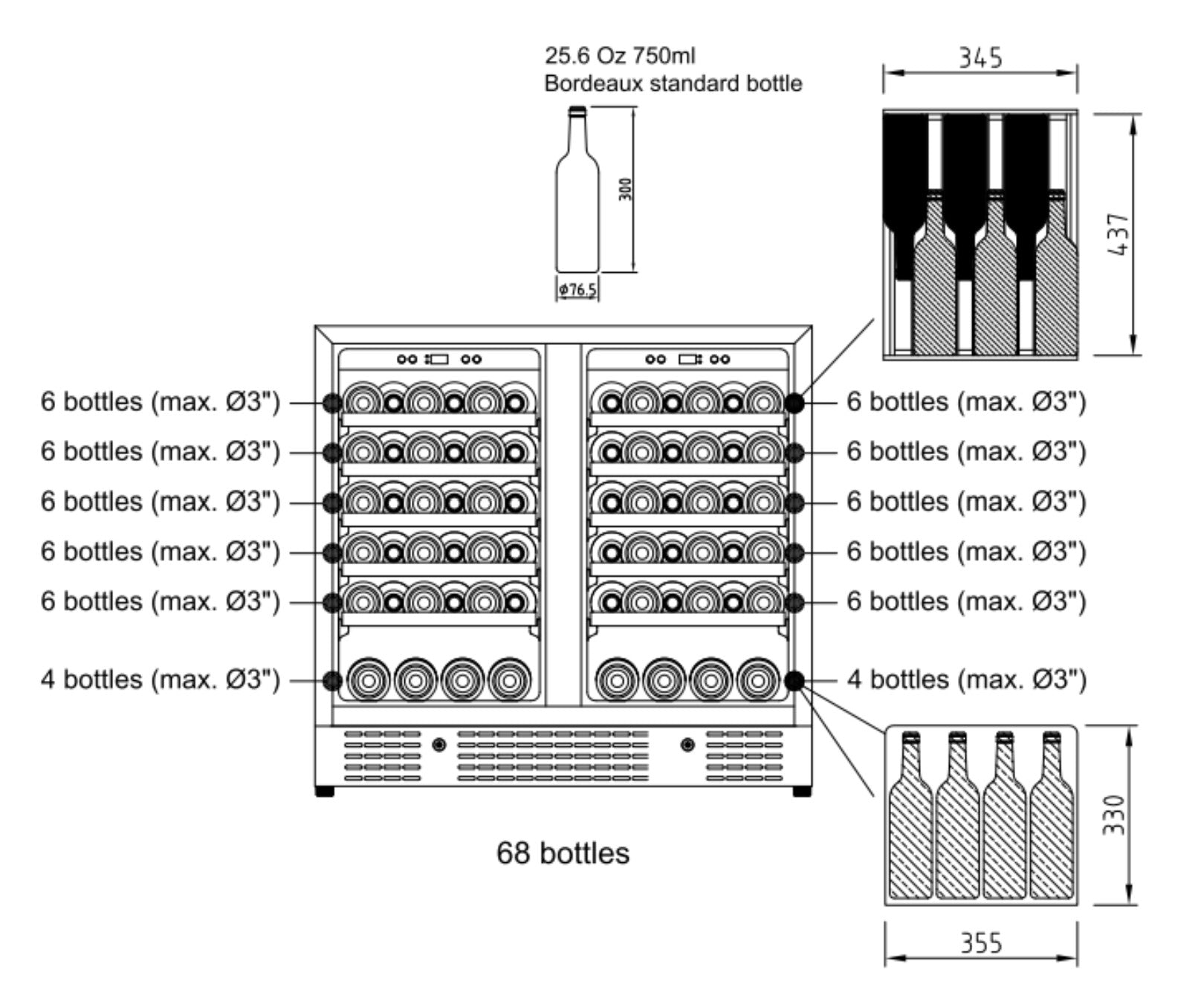

- Capacity: 68 bottles (standard 750ml)
- Net Weight: 69 kg
- Door: Reversible tempered safety glass doors
Key Features
Compressor: Embraco
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature
Shelves:
Left Side: Beechwood shelves;
Right Side: Beechwood shelves
Temperature Range:
Left Side: 2-20°C
Right Side: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 595 kWh/Year (ISO23953-2)
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KBU165BW KBU190BW
Quiet Compressor
Runs on a top-shelf compressor that’s whisper-quiet and vibration-free, keeping your drinks chilled without a peep.
Low-E Glass
Saves power and stops condensation on the door;
Acts like a sneaky insulating wall to keep the cold in.
Note: Low-E Glass has a smart coating that cuts heat transfer and condensation, ramping up energy savings and cooling efficiency.
Fan Circulated Air-Cooling System
Keeps the temp consistent throughout the cabinet;
Balances humidity to protect what’s inside.
Activated Carbon Filter
Traps air impurities like a champ;
Keeps the cabinet air crisp and odour-free.
LED Display Digital Touchpad Control
Dead-simple controls to use;
Shows clear, bang-on settings every time.
45mm Thick C-Pantane Foam
Chunky foam boosts cooling and keeps energy costs down.

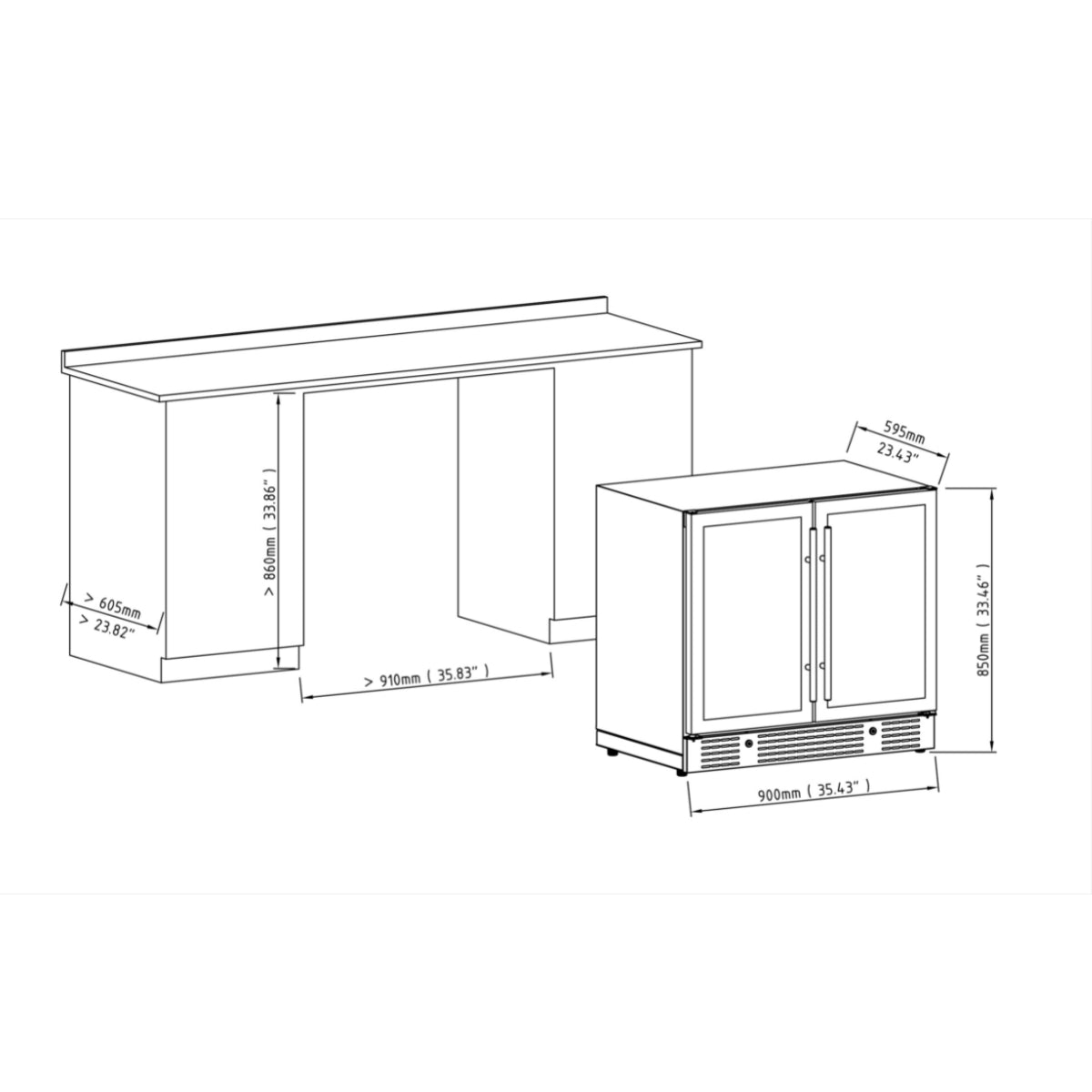

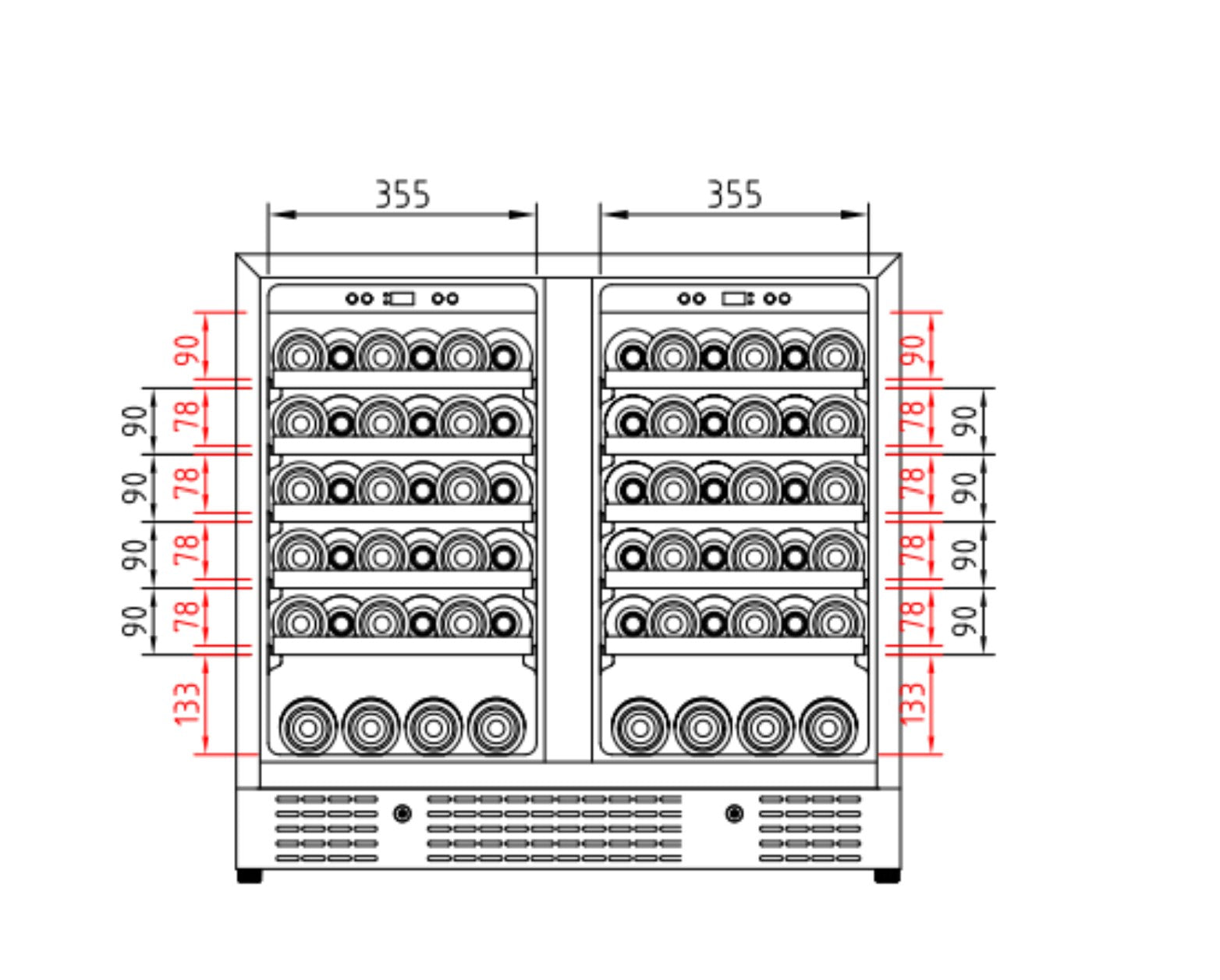

Dimensions & Diagrams
Installation Diagrams
User Manual for KB190BW/KB190W2/KB190B2
Download the User Manual for KB190BW/KB190W2/KB190B2
