Atelier Ensemble Side-by-Side Wine & Beverage Fridges in Slim Design
SIZE: 980W x 540D x 1775H mm

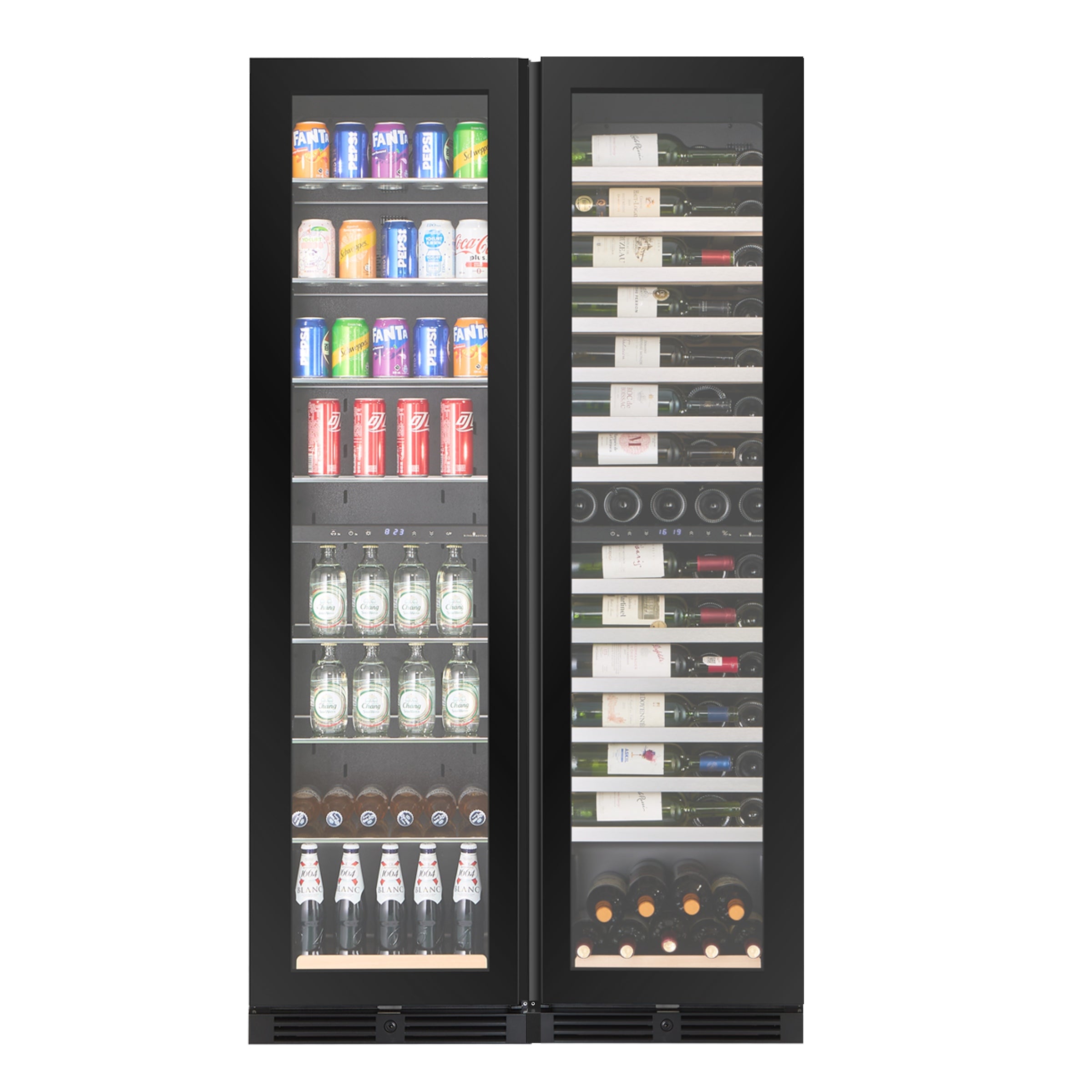

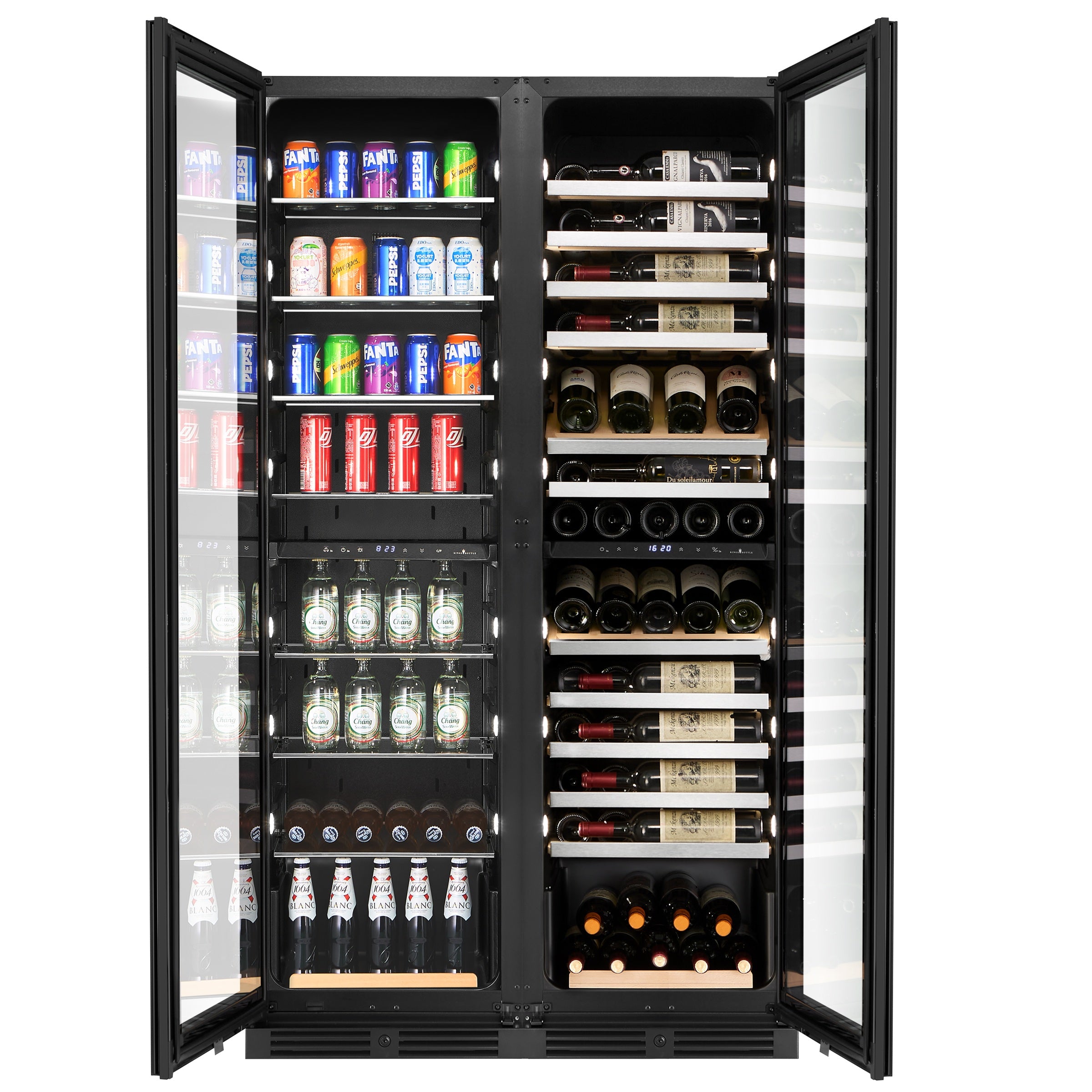

Meet the Atelier Ensemble — a perfectly balanced wine and beverage solution that brings together the Atelier Solo and Atelier Duo in a seamless side-by-side configuration. With a combined width of just 980mm and depth of 540mm, it delivers spacious storage without sacrificing space efficiency.

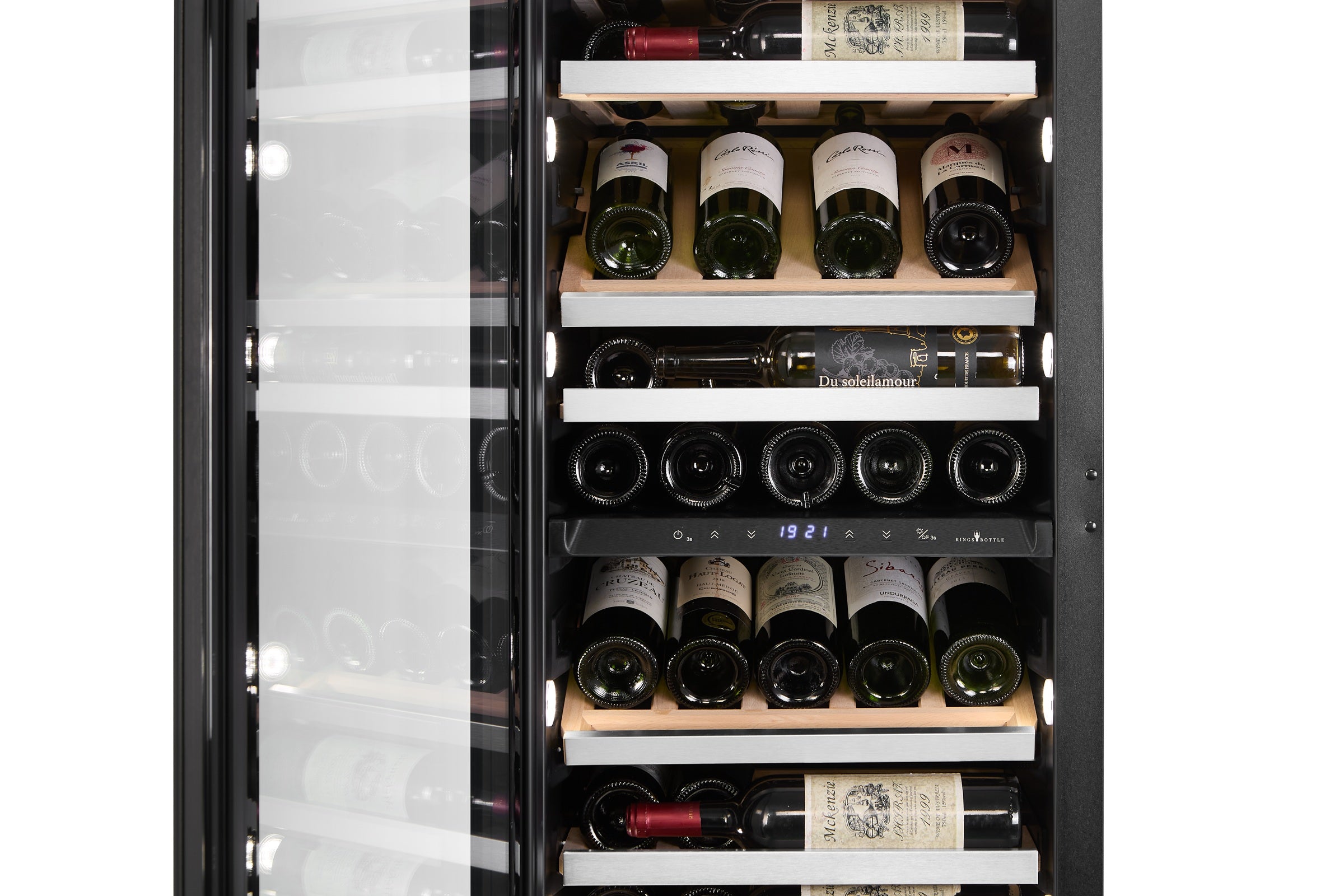

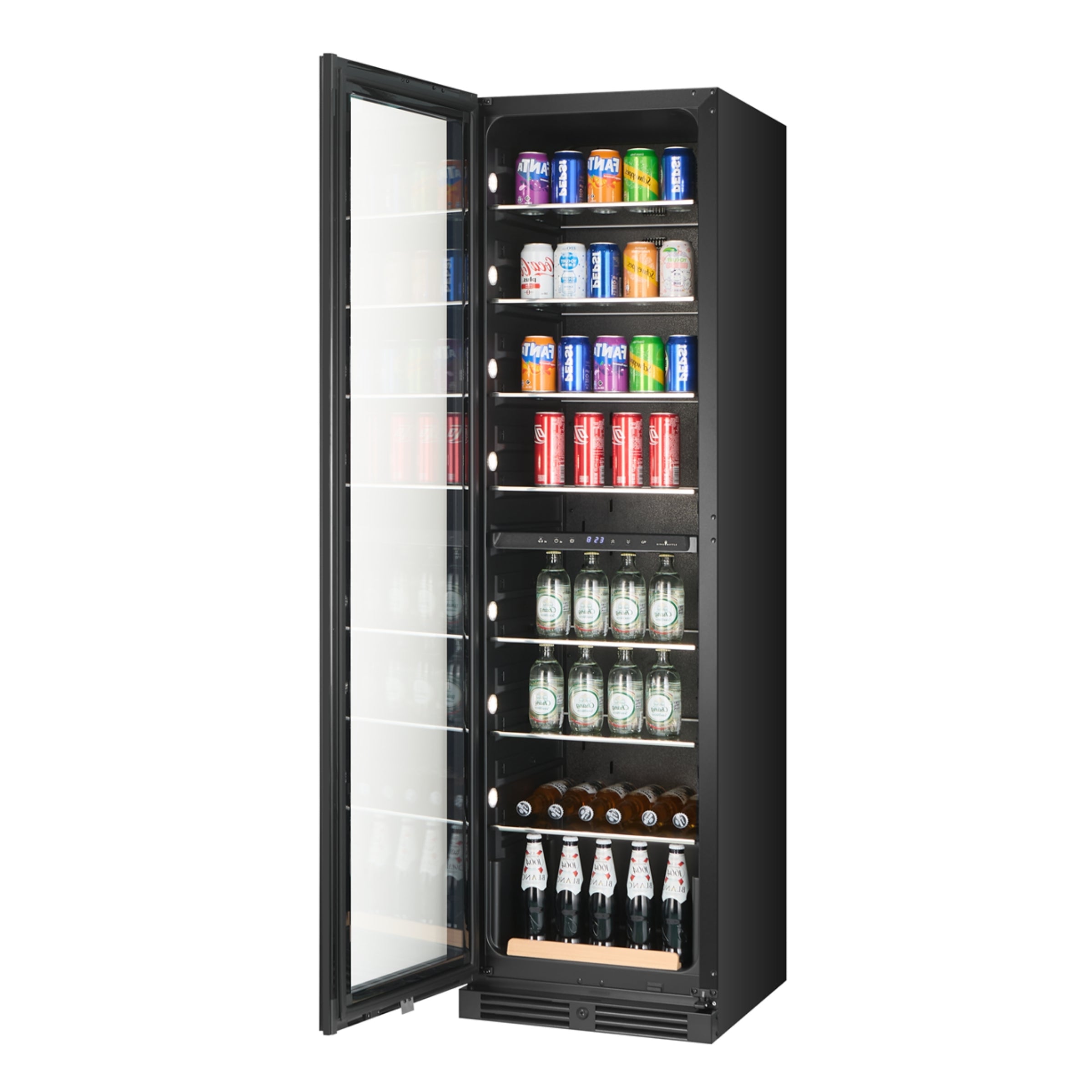

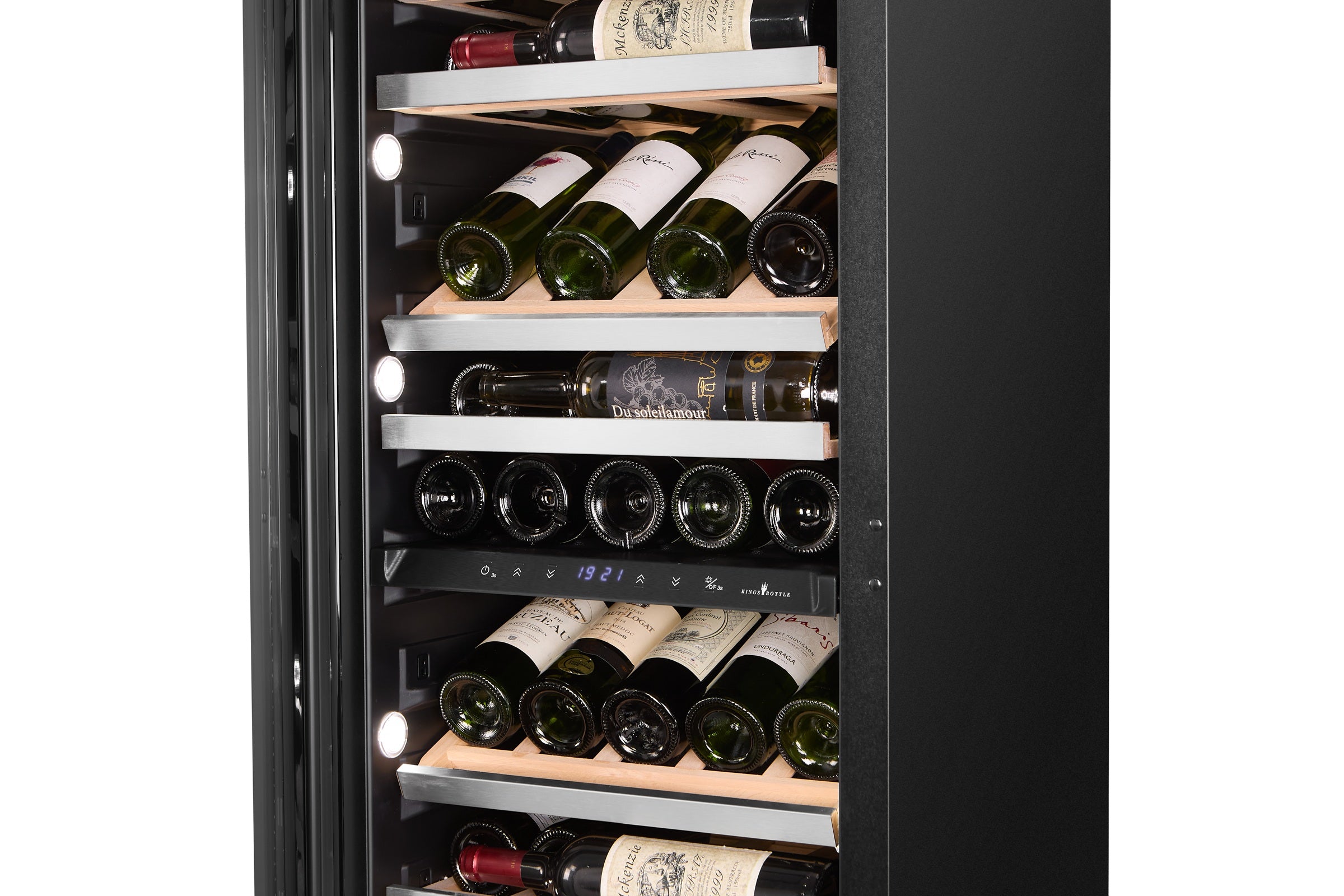

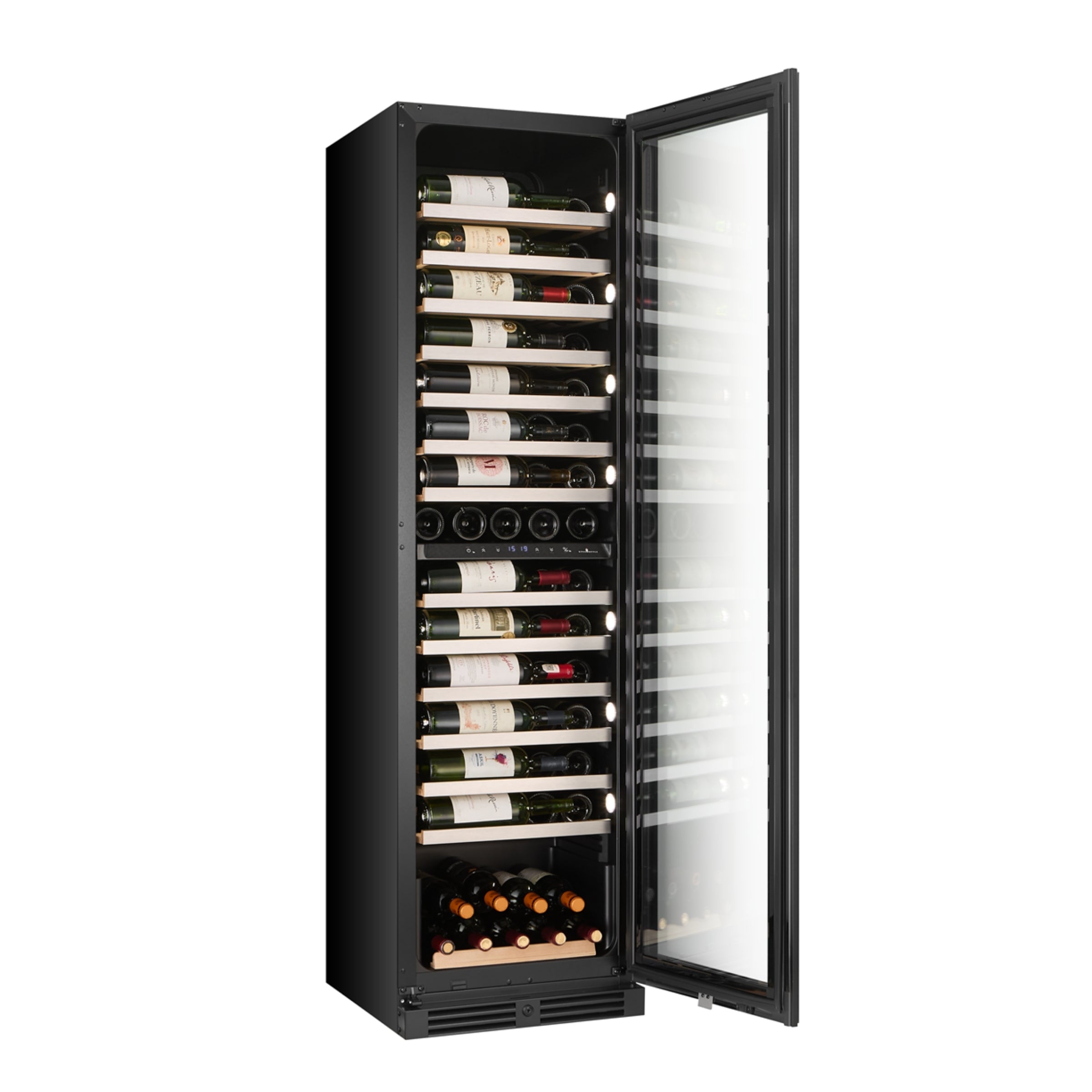

The Atelier Solo offers a dedicated beverage zone with adjustable glass shelves that hold up to 262 cans, while the Atelier Duo provides dual-zone wine storage for up to 86 bottles with tailored Burgundy and Bordeaux shelving. Together, they offer independent temperature controls across three zones (2°C–20°C), ideal for managing mixed collections.

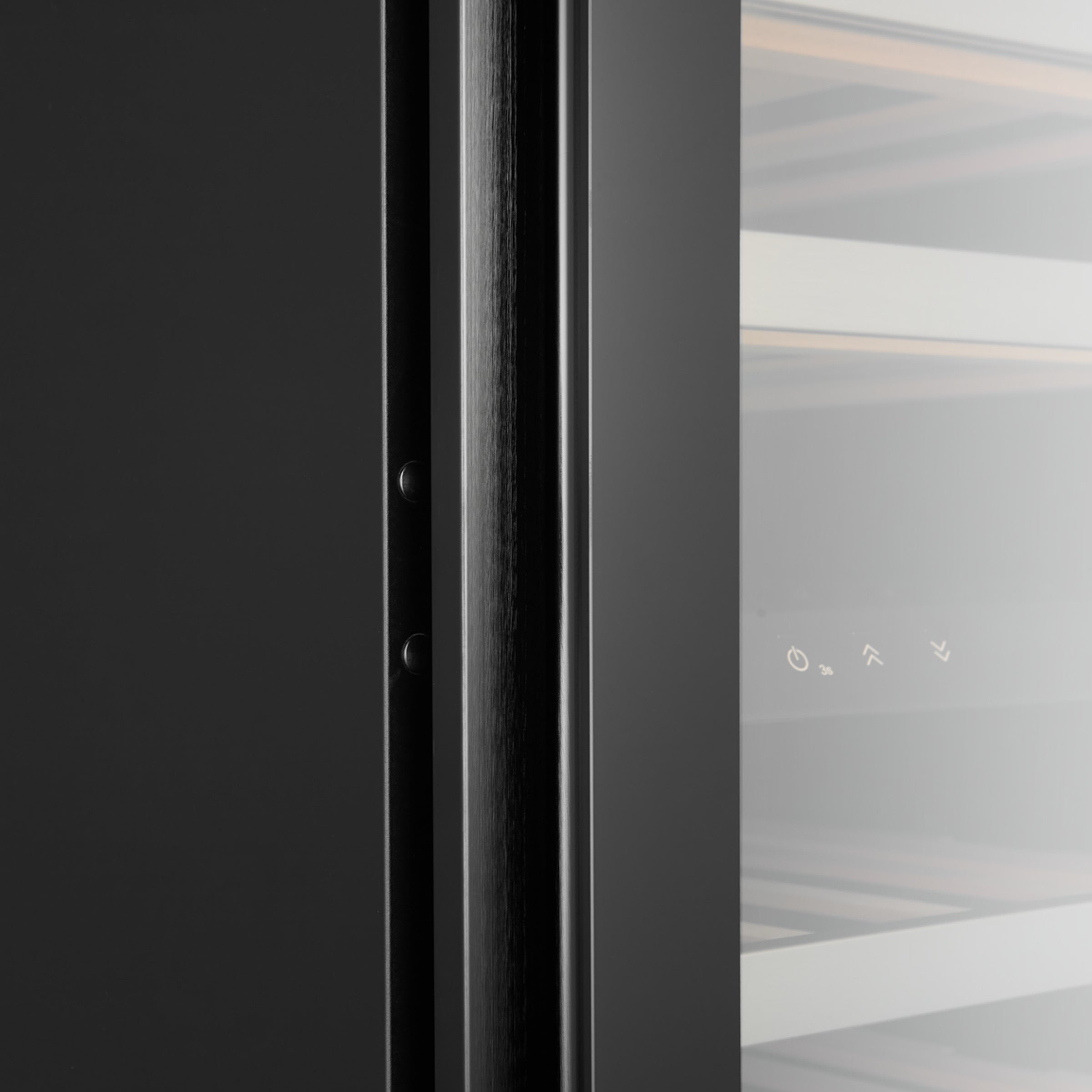

With recessed handles, quiet inverter compressors, and double-layer Low-E glass doors for UV protection and reduced condensation, the Ensemble blends function with refined design. A front-vented cooling system supports both built-in and freestanding installation, making it the ultimate all-in-one entertainer’s centrepiece.
Specifications
General Information
- Dimensions: 980W x 540D x 1775H mm
- Capacity: 490 litres (262 cans of drink and 86 bottles of wine)
- Net Weight: 130 kg
- Door: French doors, lockable for security
Key Features
Compressor: Inverter—quiet, energy saving
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature

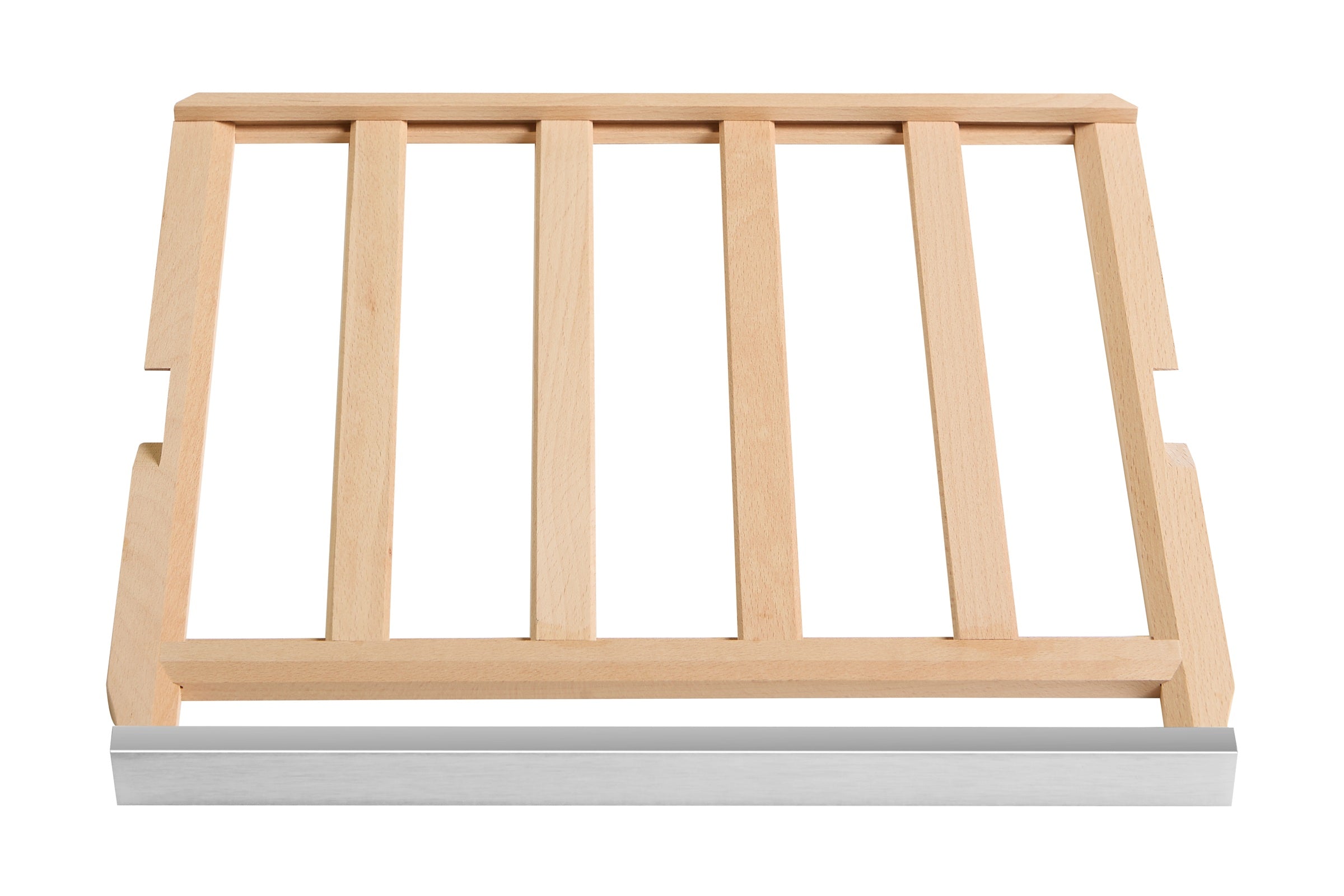

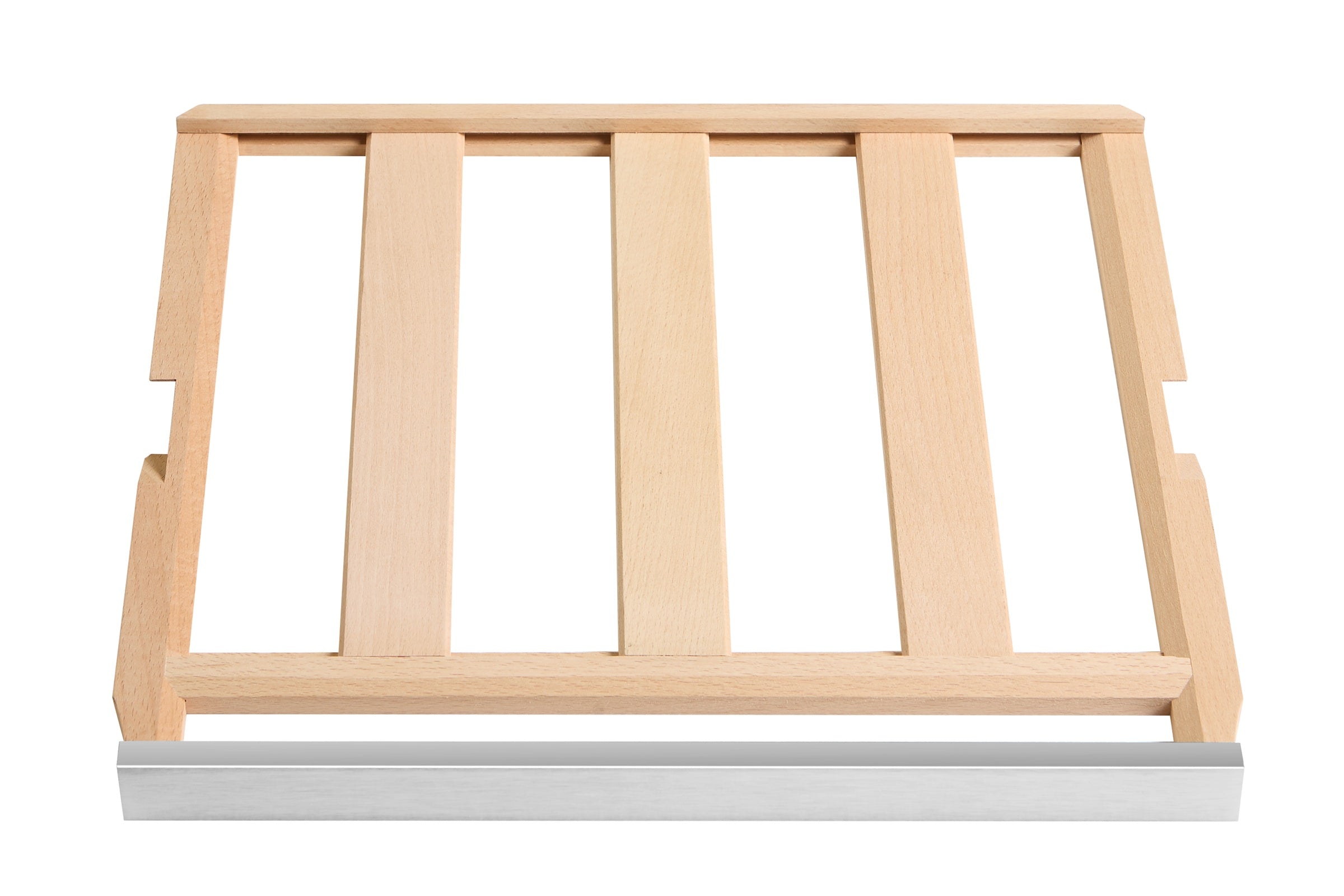

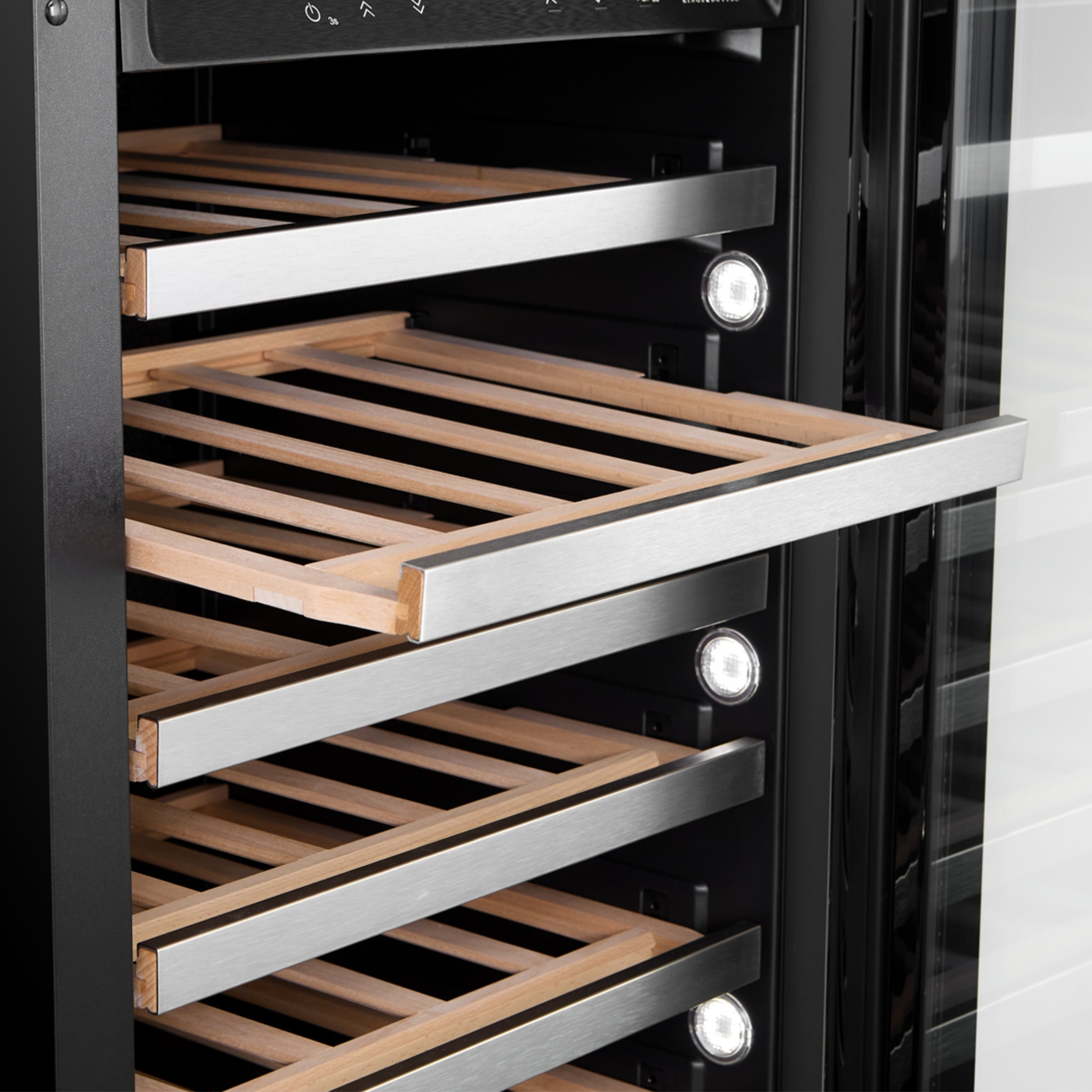

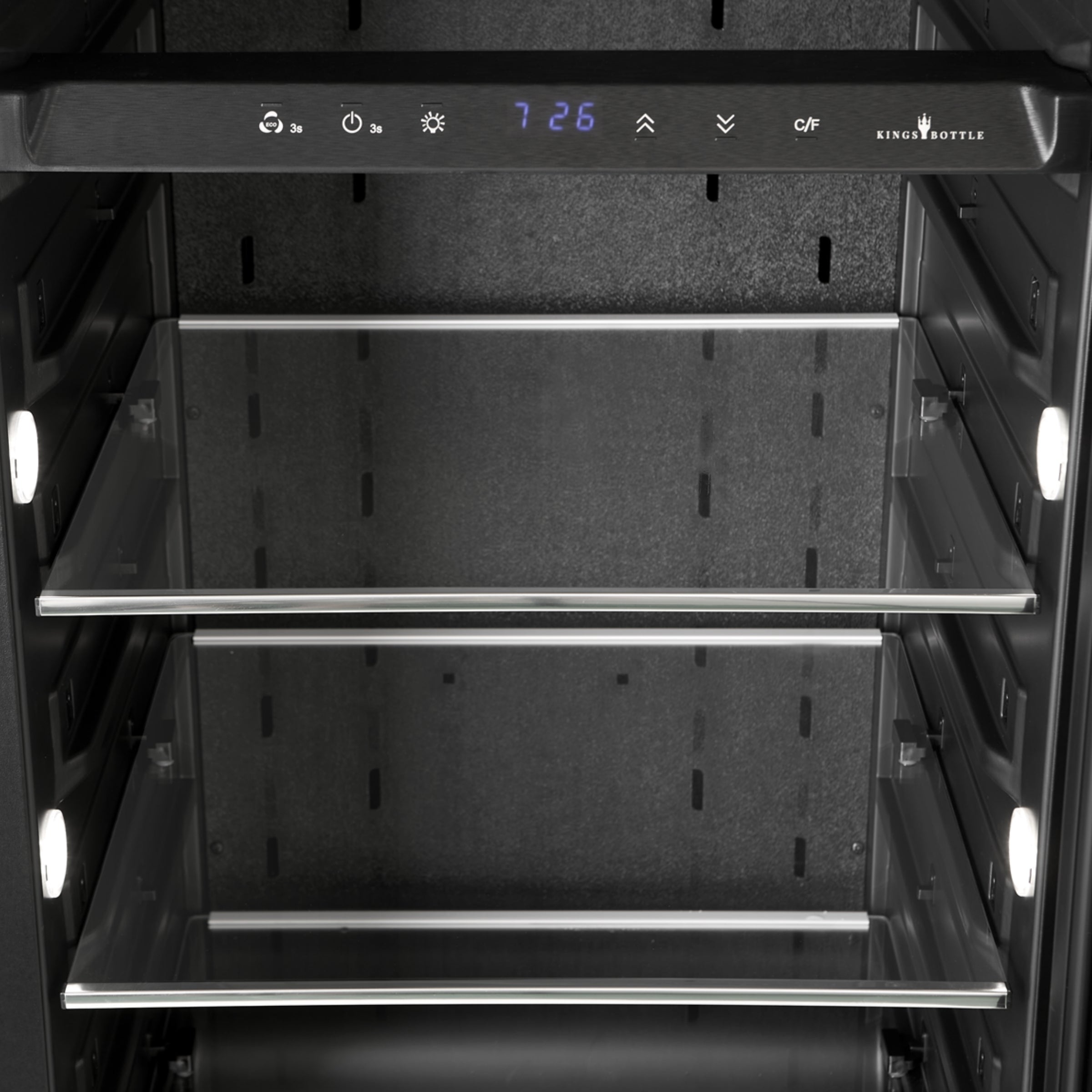

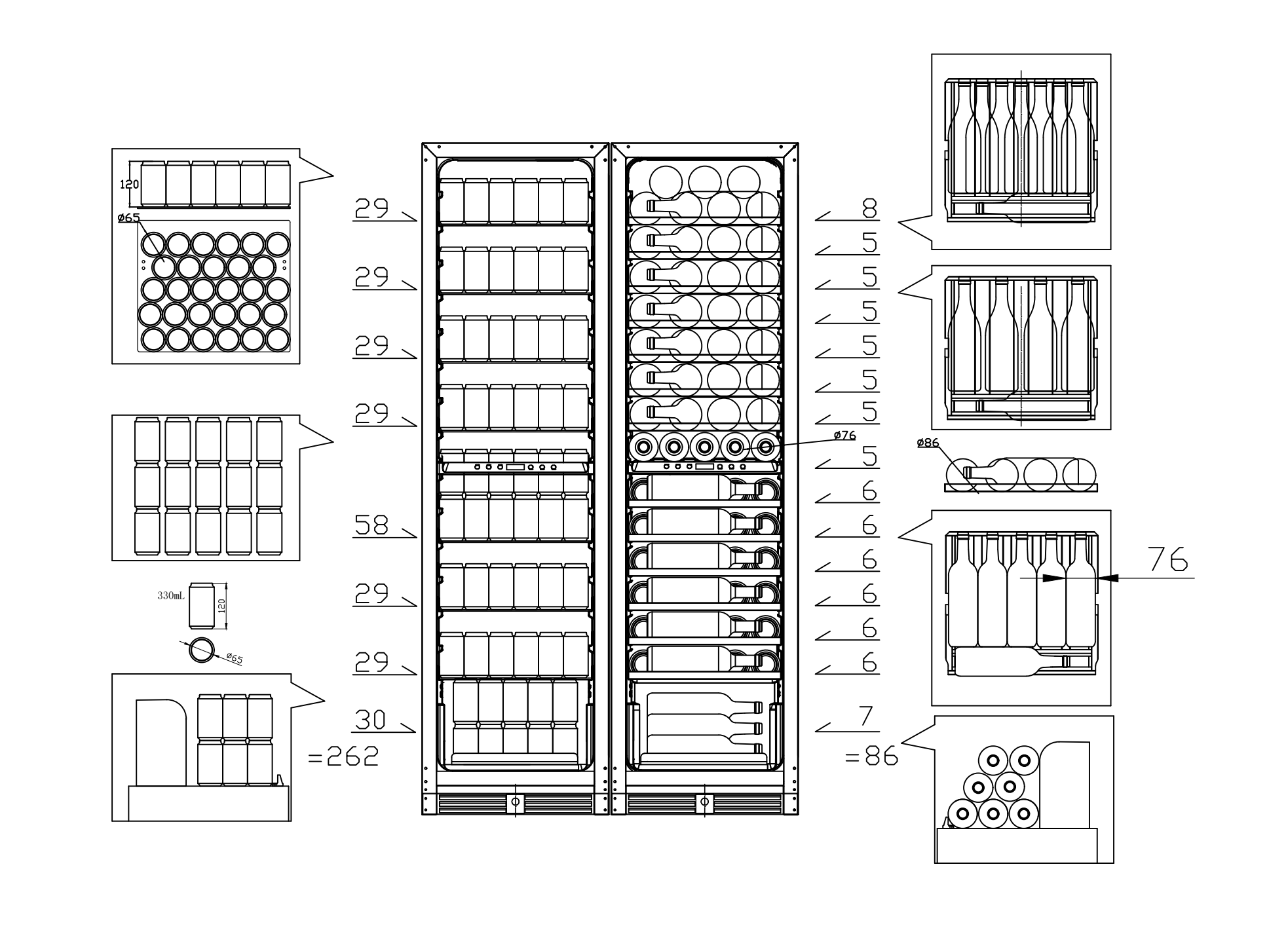

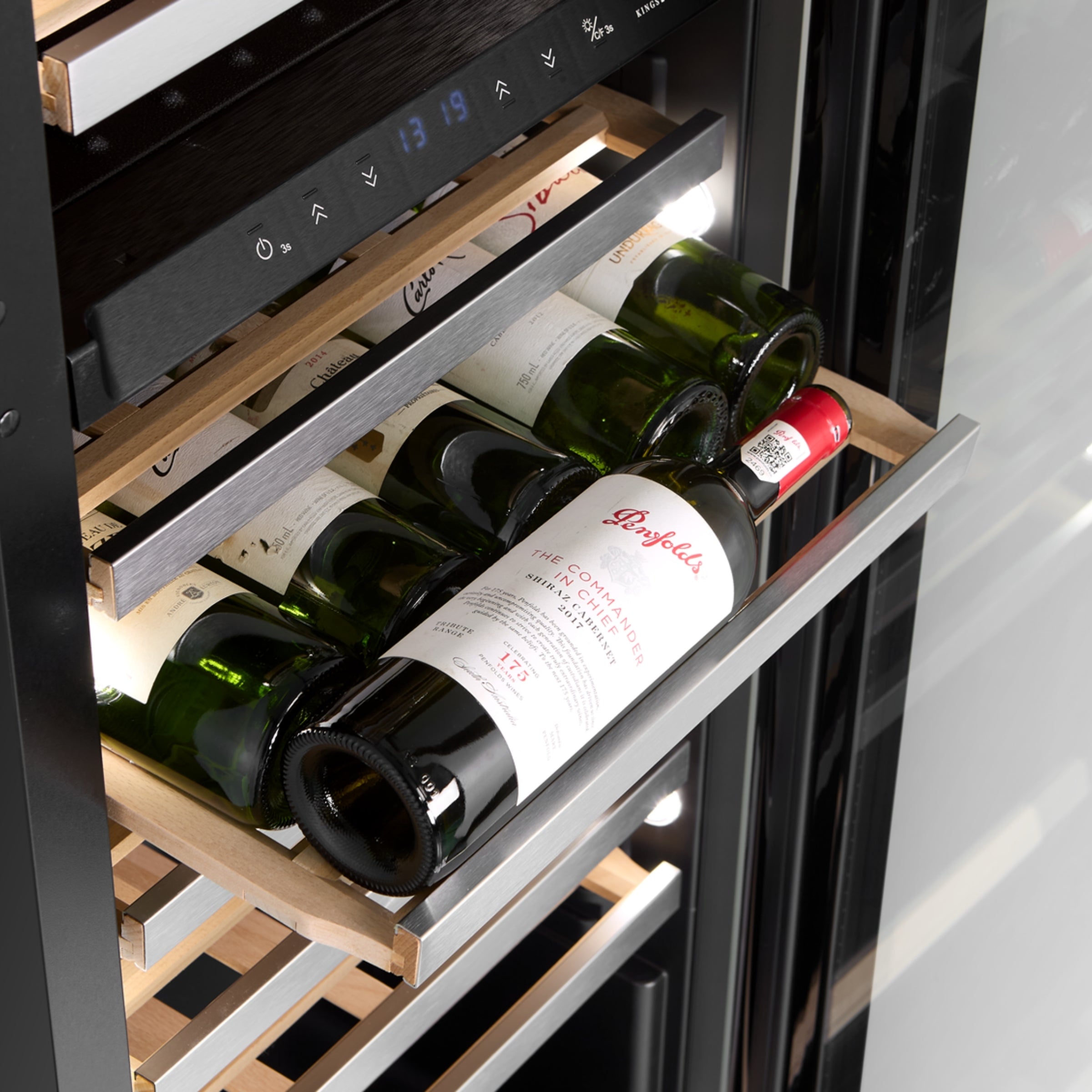

Shelves: 7 glass shelves for beverage (262 cans) on one side; 7 pcs beech wood shelves for Burgundy bottles (up to 86mm in diameter) in upper zones and 6 pcs shelves for standard bottles (76mm in diameter) in lower zones on the other side
Temperature Range: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 0.83 kW.h/24h
Plug: Australian standard 3-pin

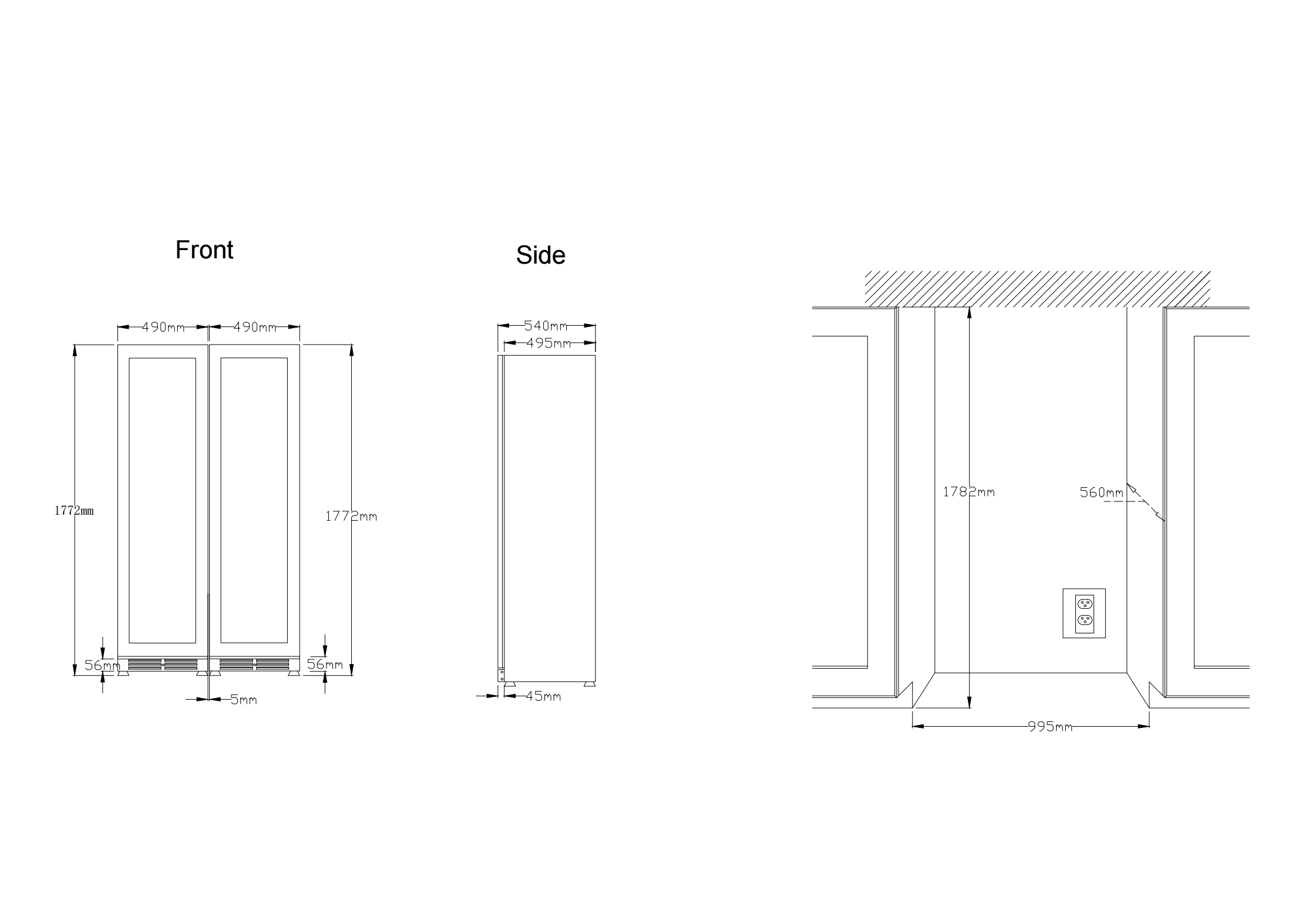

Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Dimensions & Diagrams
Installation Diagrams
