Atelier Fusion - 1775mm High Sleek Wine and Beverage Centre
SIZE: 490W x 540D x 1775H mm
At just 490mm wide—narrower than the standard 600mm—and 540mm deep, the Atelier Fusion embodies the space-saving philosophy of the Atelier Series, perfectly suited for areas where traditional dual-purpose fridges fall short. Whether built into tight kitchen cabinetry, styled into a compact bar area, or standing freely in a modern living space, the Fusion delivers maximum versatility with a minimal footprint.
Purposefully designed to store both wine and beverages in ideal conditions, the Atelier Fusion features a dual-zone layout. The upper zone is equipped with 7 beech wood shelves crafted for Burgundy bottles (up to 86mm in diameter), ensuring optimal preservation and presentation. In the lower zone, 3 adjustable glass shelves provide ample room for up to 117 beverage cans, making it the perfect solution for collectors and entertainers alike who want refined storage without compromise.
Specifications
General Information
- Dimensions: 490W x 540D x 1775H mm

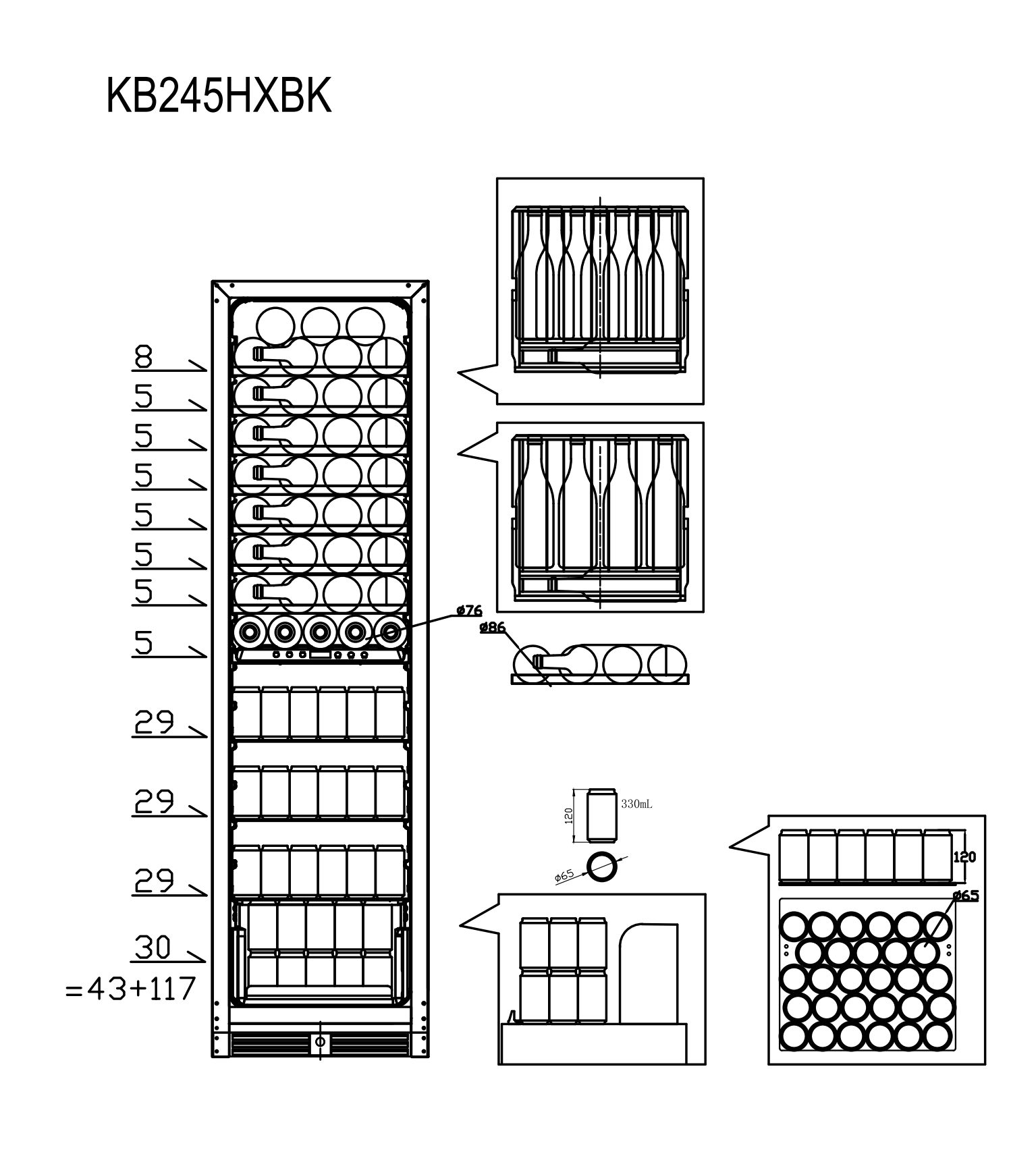

- Capacity: 245 litres (upper: 43 bottles, fit for different bottles type; lower: 117 cans)
- Net Weight: 65 kg
- Door: Reversible (left or right hinge options), lockable for security
Key Features
Compressor: Inverter—quiet (41.6 dB), energy saving
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature

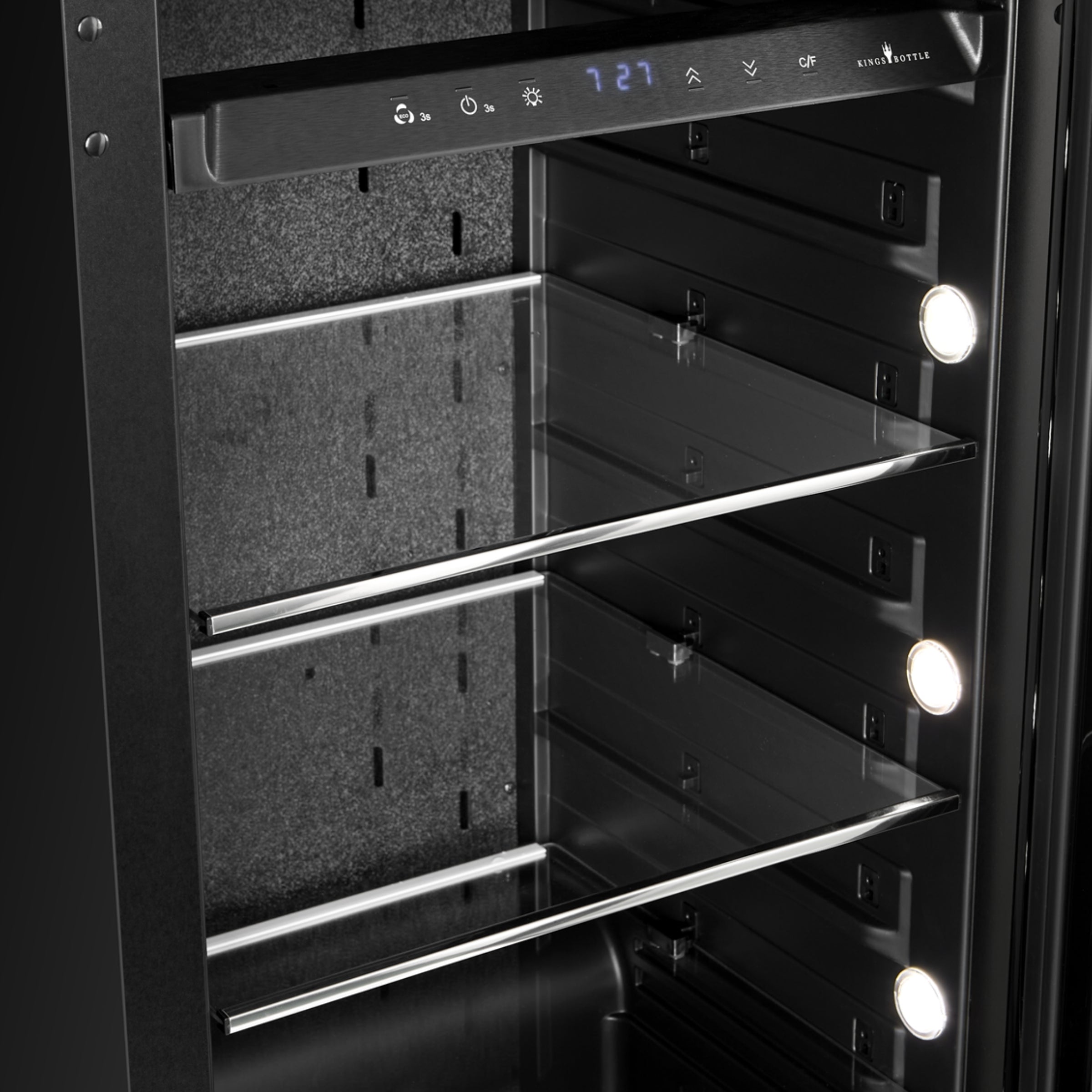

Shelves: 7 pcs beech wood shelves for fat bottles (up to 86mm in diameter) in upper zone; 3 pcs glass shelves for beverage storage in lower zone
Temperature Range: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 0.43 kW.h/24h
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Dimensions & Diagrams
Installation Diagrams
User Manual for Atelier
