Atelier Harmony - 980mm Wide Upright Side-by-Side Wine Fridge with 4 Separate Zones
SIZE: 980W x 540D x 1775H mm

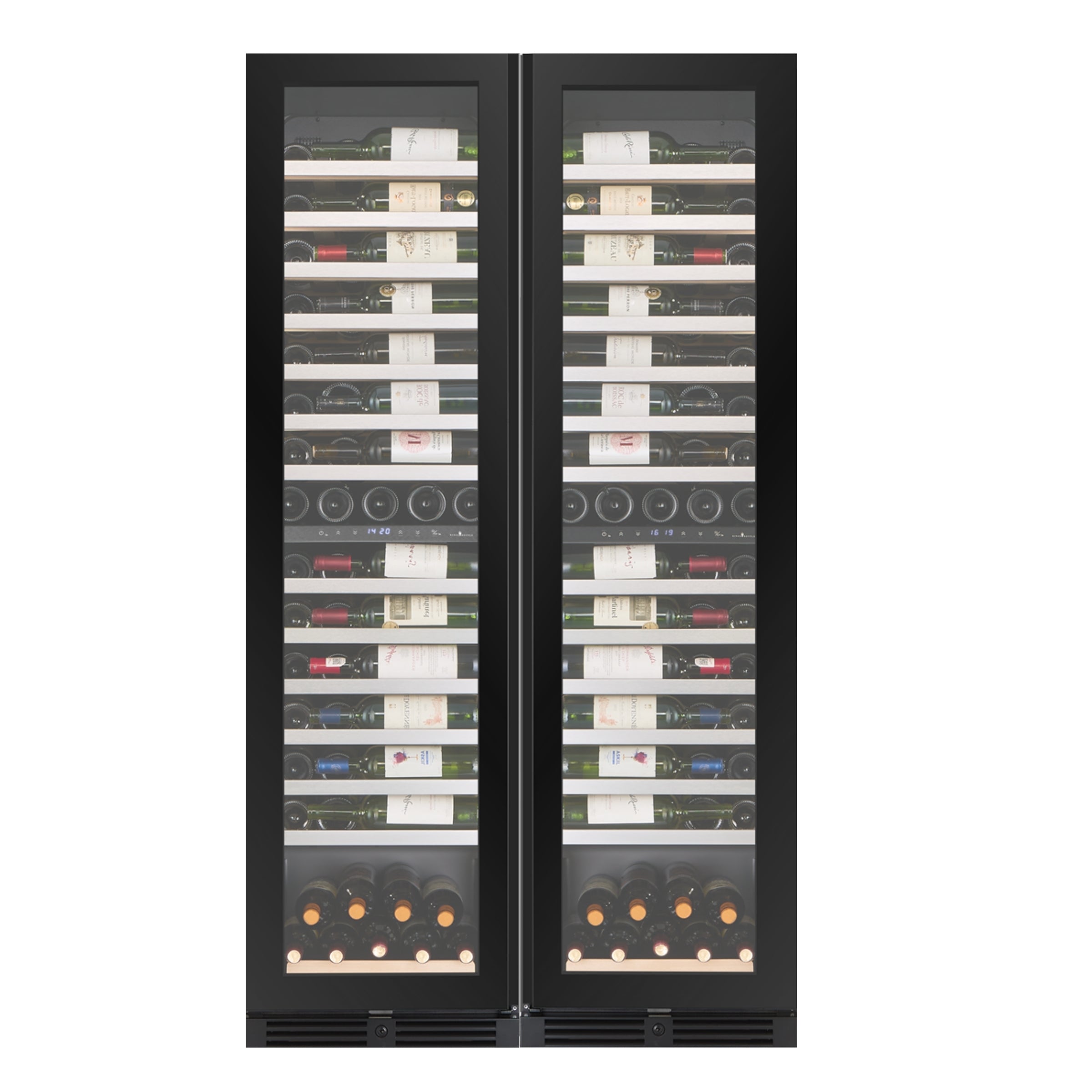

Meet the Atelier Harmony — a dual-unit wine fridge system combining two Atelier Duo units side by side for double the capacity and perfectly balanced design. With a total width of just 980mm and depth of 540mm, it fits seamlessly into modern kitchens and luxury spaces.

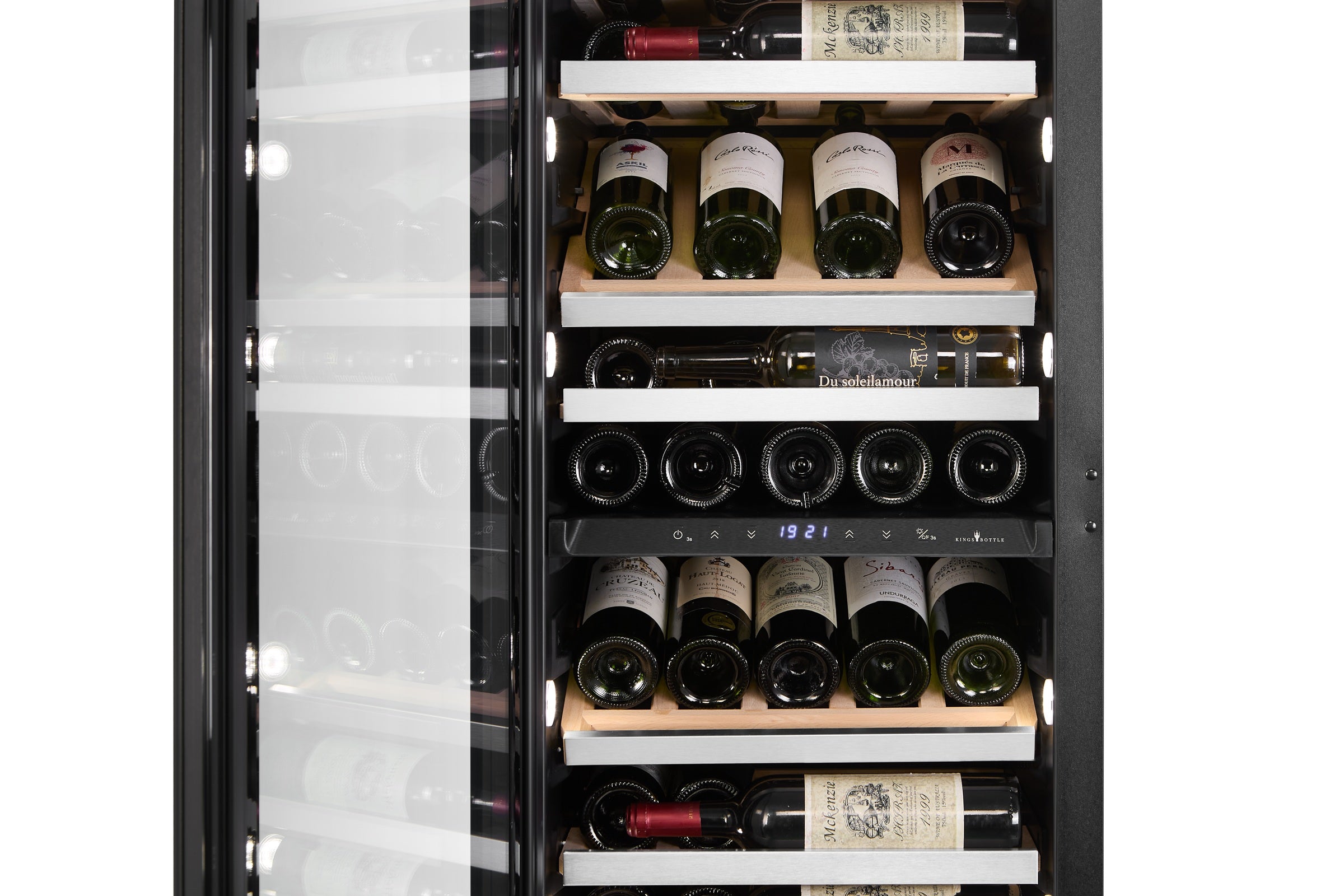

Each unit offers dual temperature zones with 7 shelves for Burgundy bottles above and 6 for Bordeaux bottles below, holding up to 172 bottles in total.

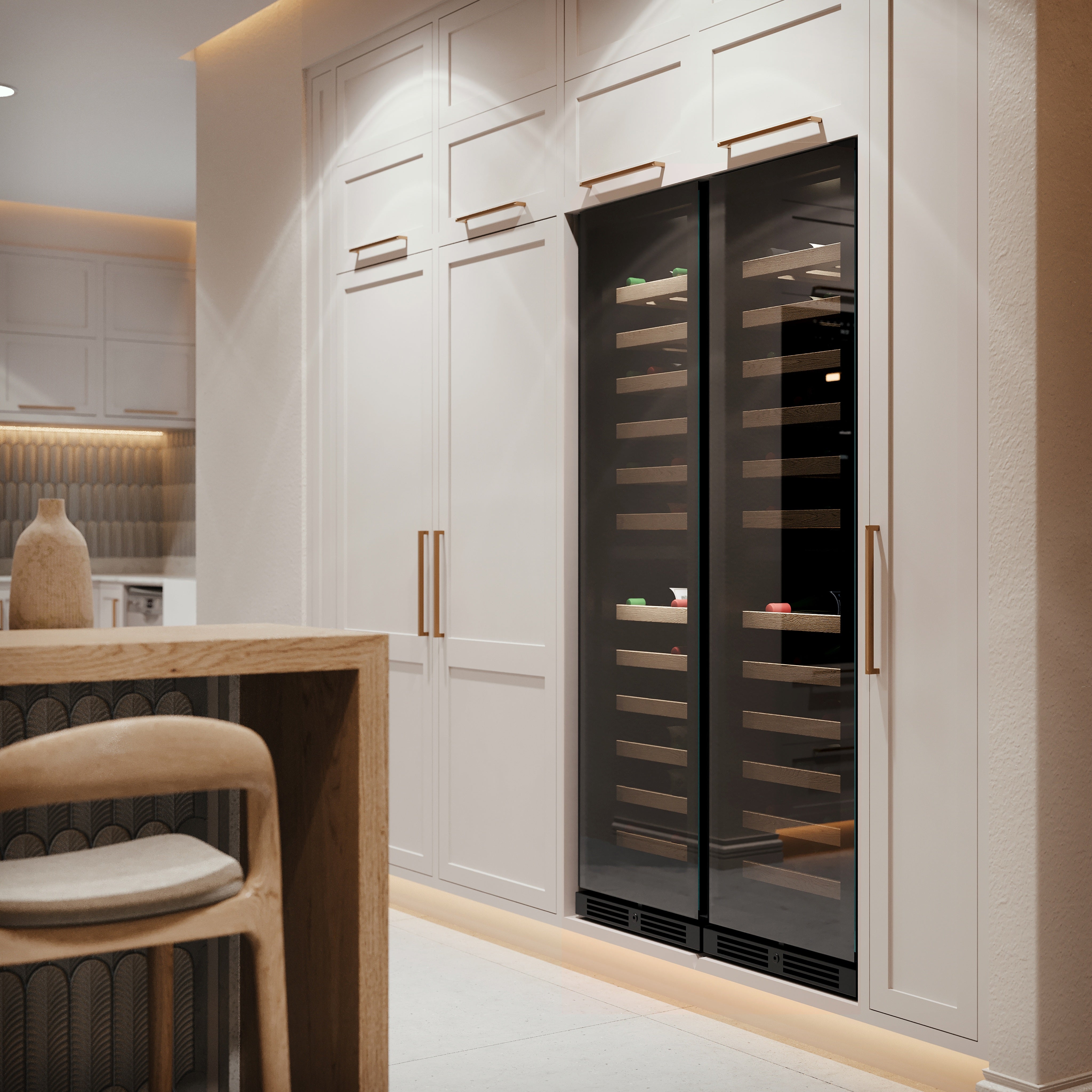

Designed with recessed handles for a flush, integrated look, Harmony blends effortlessly with surrounding cabinetry and appliances. Featuring quiet inverter compressors, triple-pane Low-E glass doors, and a front-vented cooling system, it’s ideal for built-in or freestanding use.
Atelier Harmony — refined capacity, seamless symmetry.
Specifications
General Information
- Dimensions: 980W x 540D x 1775H mm
- Capacity: 490 litres (172 bottles, fit for different bottles type)
- Net Weight: 130 kg
- Door: French doors, lockable for security
Key Features
Compressor: Inverter—quiet, energy saving
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature

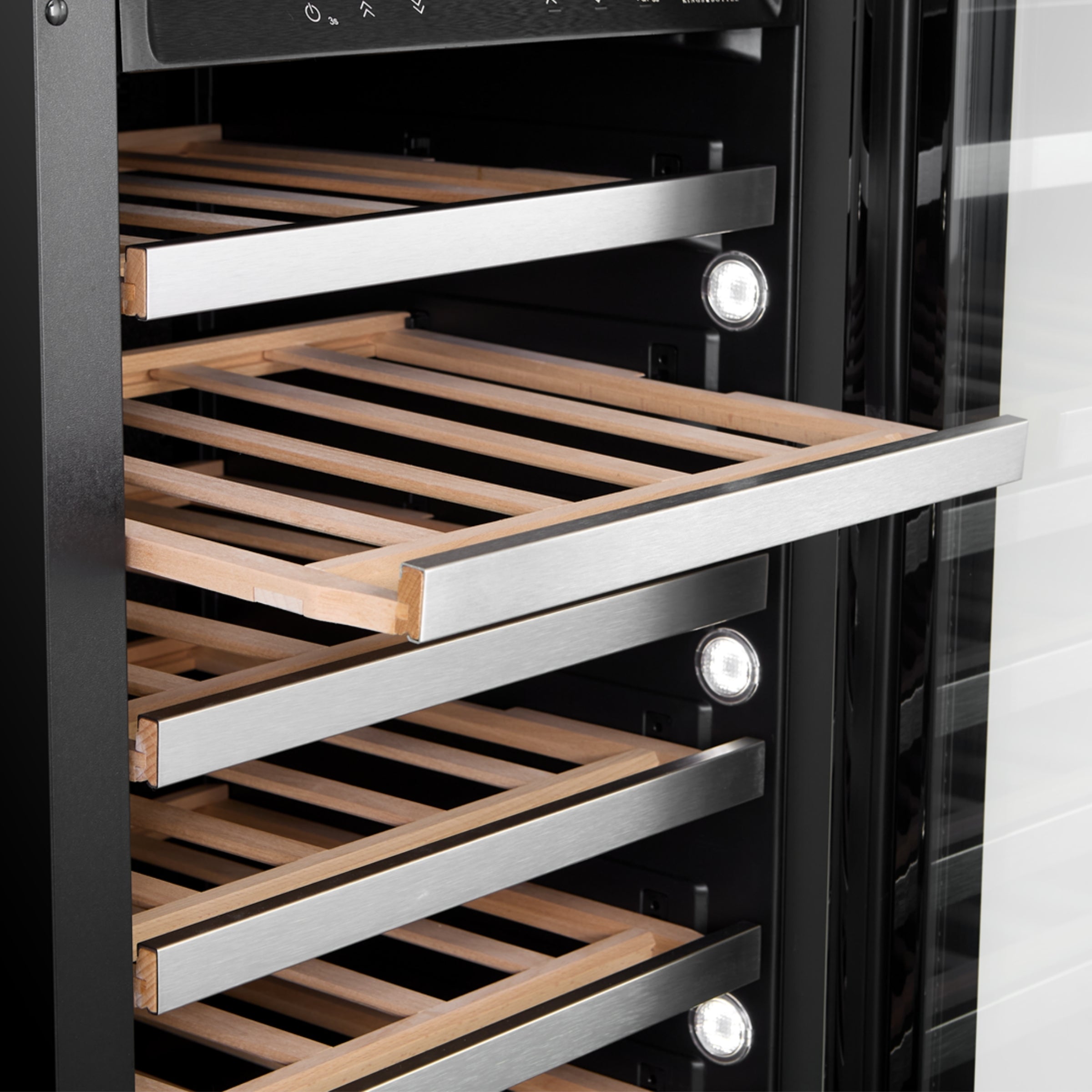

Shelves: 14 pcs beech wood shelves for Burgundy bottles (up to 86mm in diameter) in upper zones; 12 pcs shelves for standard bottles (76mm in diameter) in lower zones
Temperature Range: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 0.86 kW.h/24h
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Dimensions & Diagrams

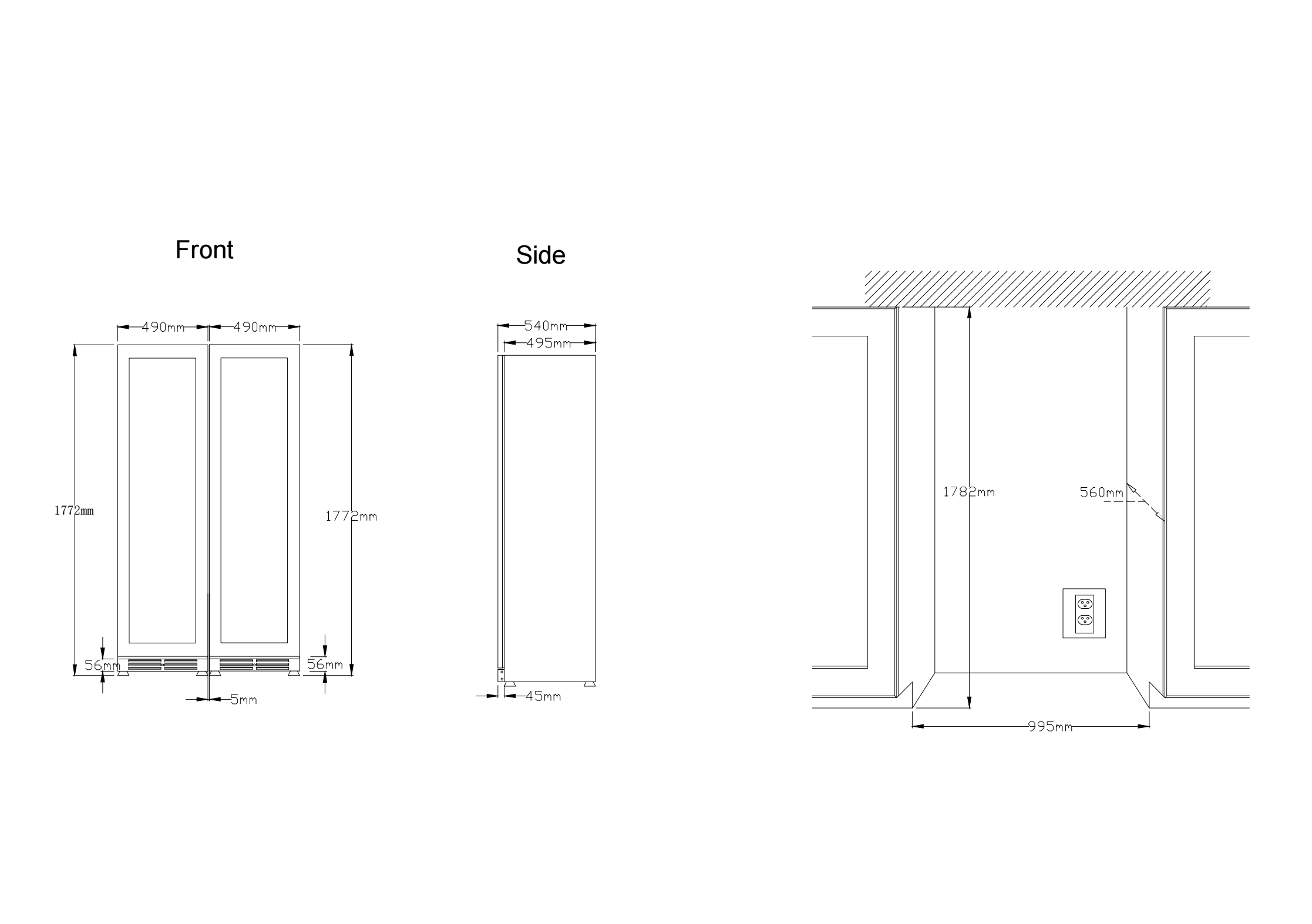

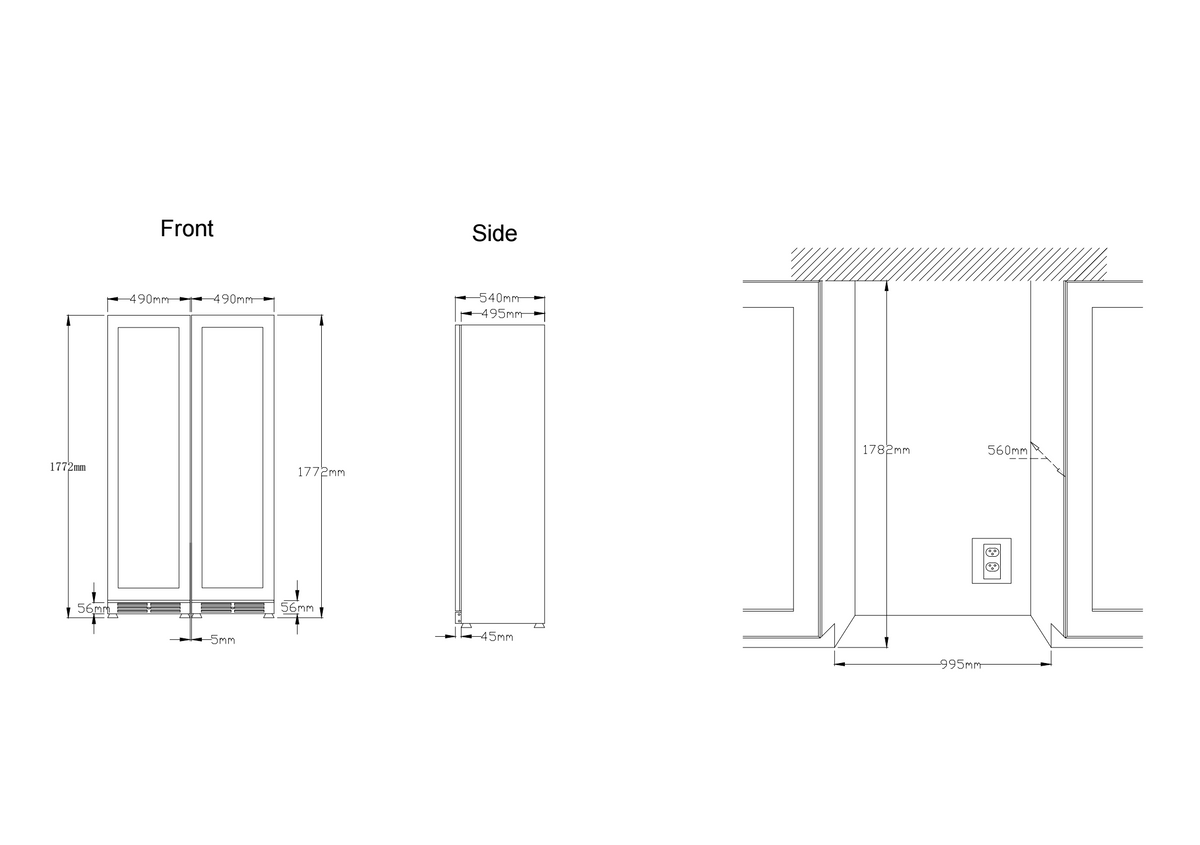

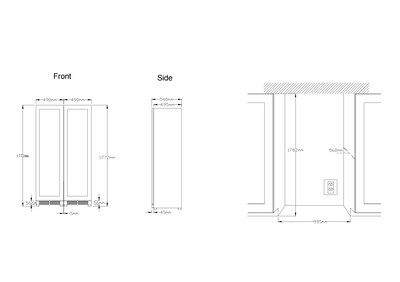

Installation Diagrams
